Pinpoint Test S: No UART Based Protocol (UBP) Network Communication

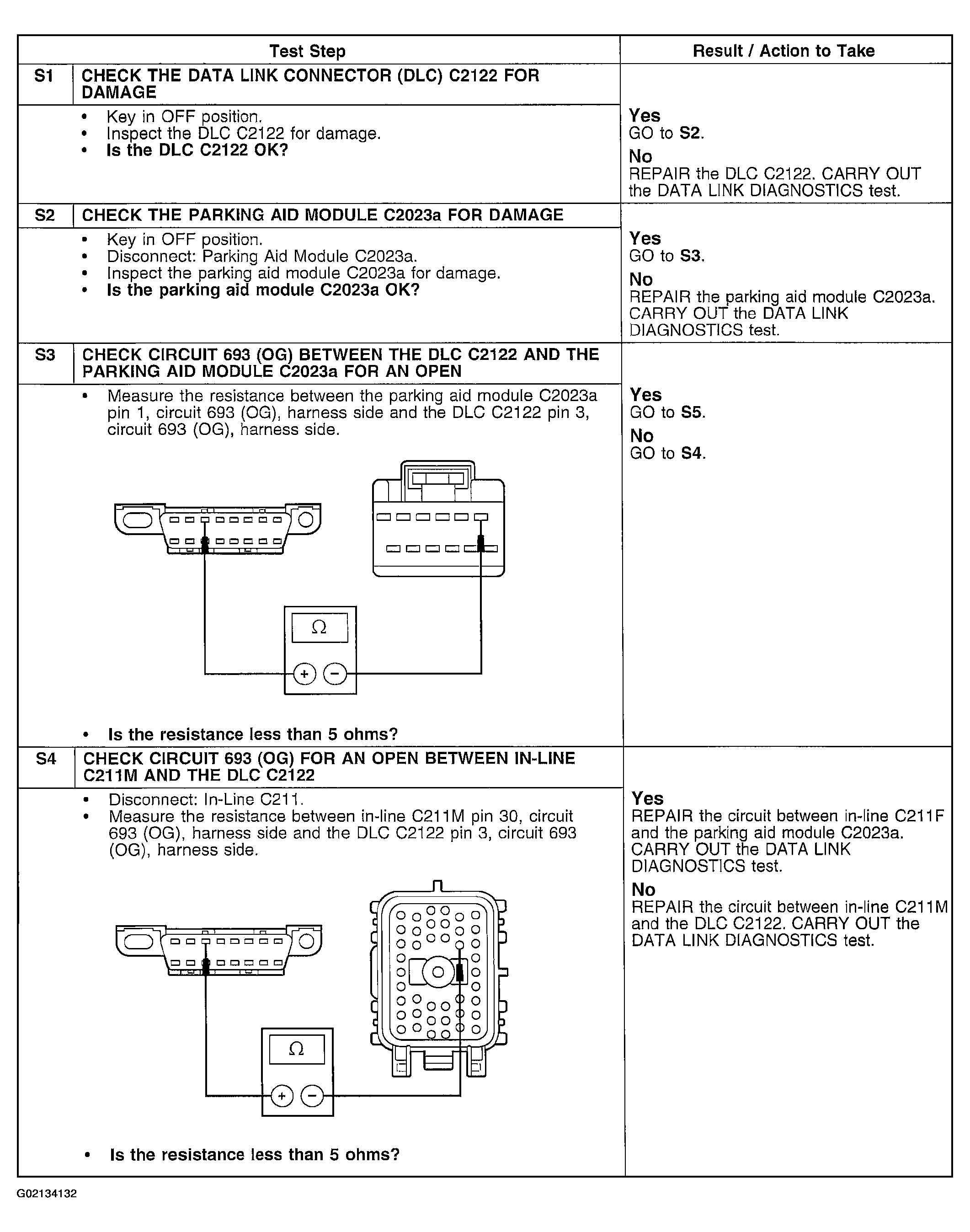

Fig 1: Pinpoint Test S (1 Of 2)

G02134132

Courtesy of FORD MOTOR CO.

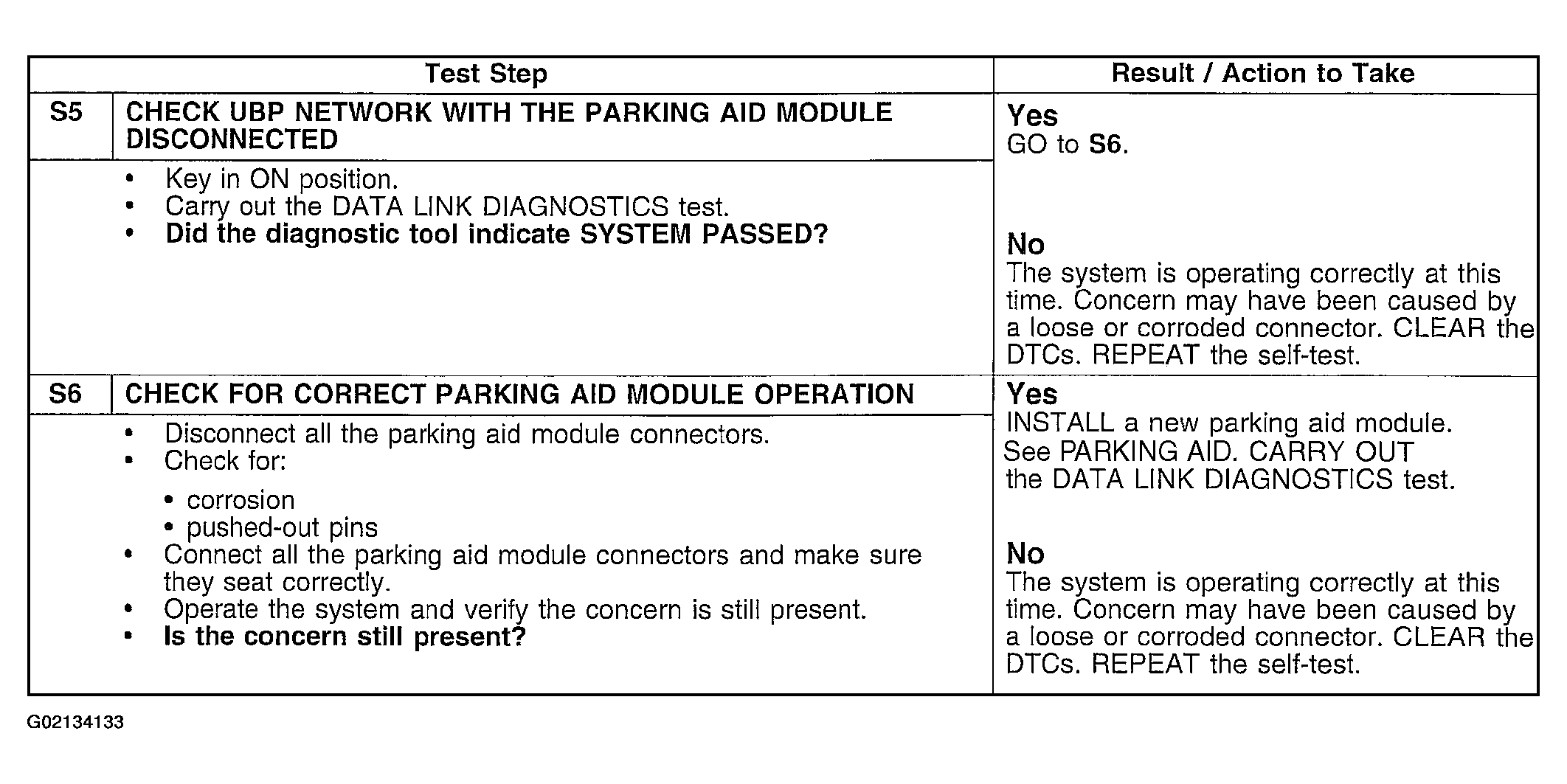

Fig 2: Pinpoint Test S (2 Of 2)

G02134133

Courtesy of FORD MOTOR CO.
