Pinpoint Test T: No Module/Network Communication - No Power To The Diagnostic Tool

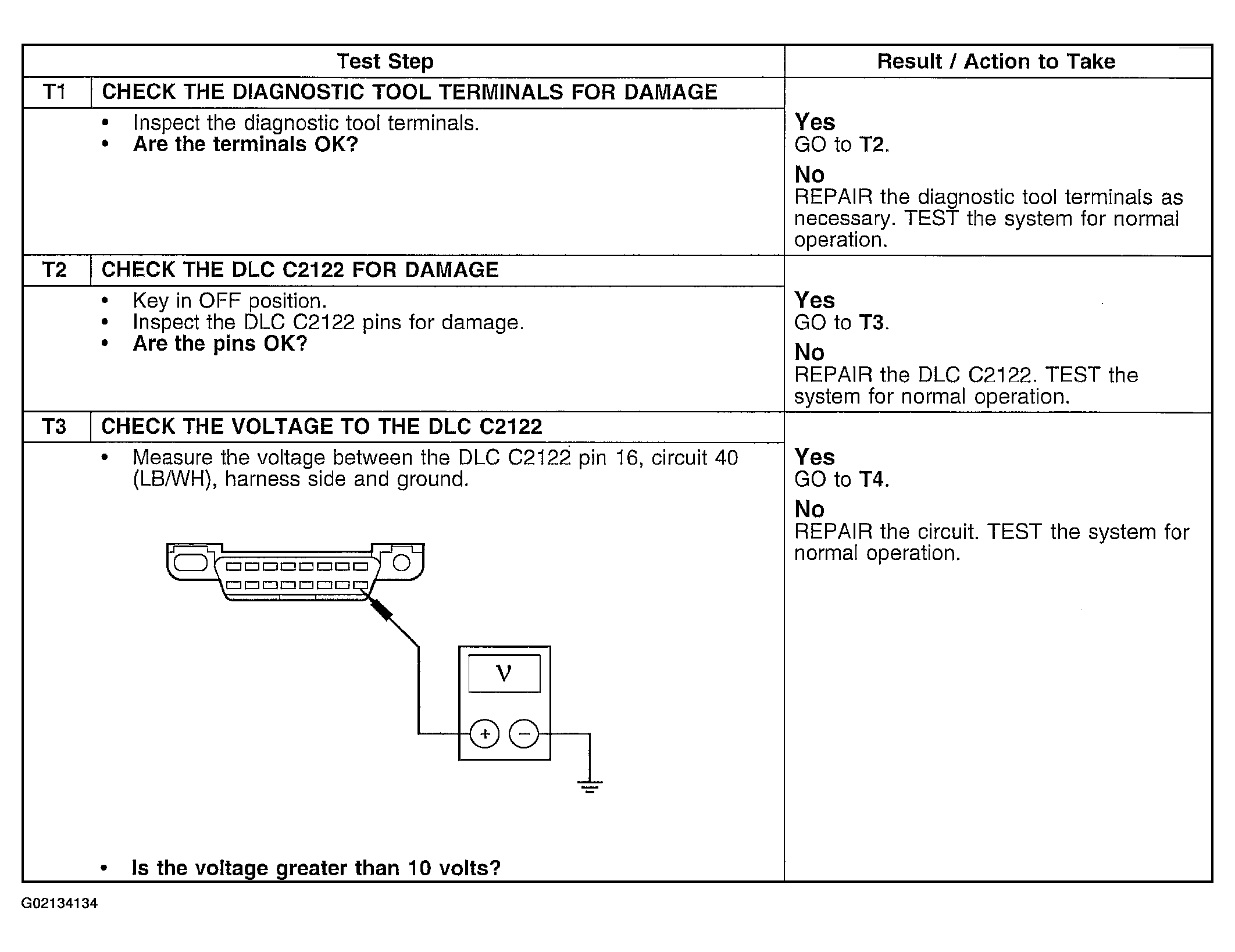

Fig 1: Pinpoint Test T (1 Of 2)
G02134134Courtesy of FORD MOTOR CO.

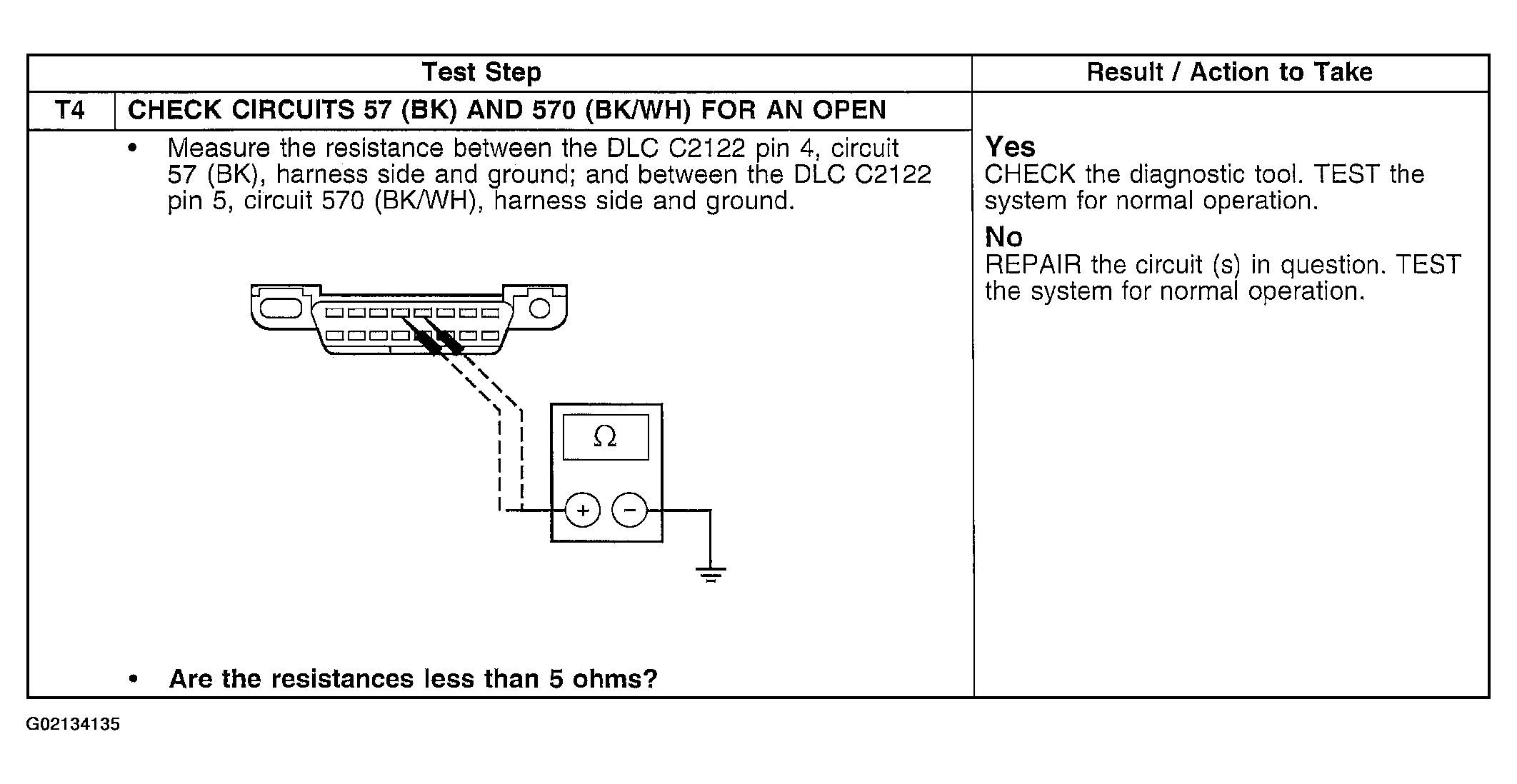

Fig 2: Pinpoint Test T (2 Of 2)
G02134135Courtesy of FORD MOTOR CO.
