Ignition Switch/Steering Lock
›
Component Tests
›
Component Testing
›
Seat Heater Switch
Seat Heater Switch
Fig 1: Testing Seat Heater Switch - Driver Side
Courtesy of FORD MOTOR CO.

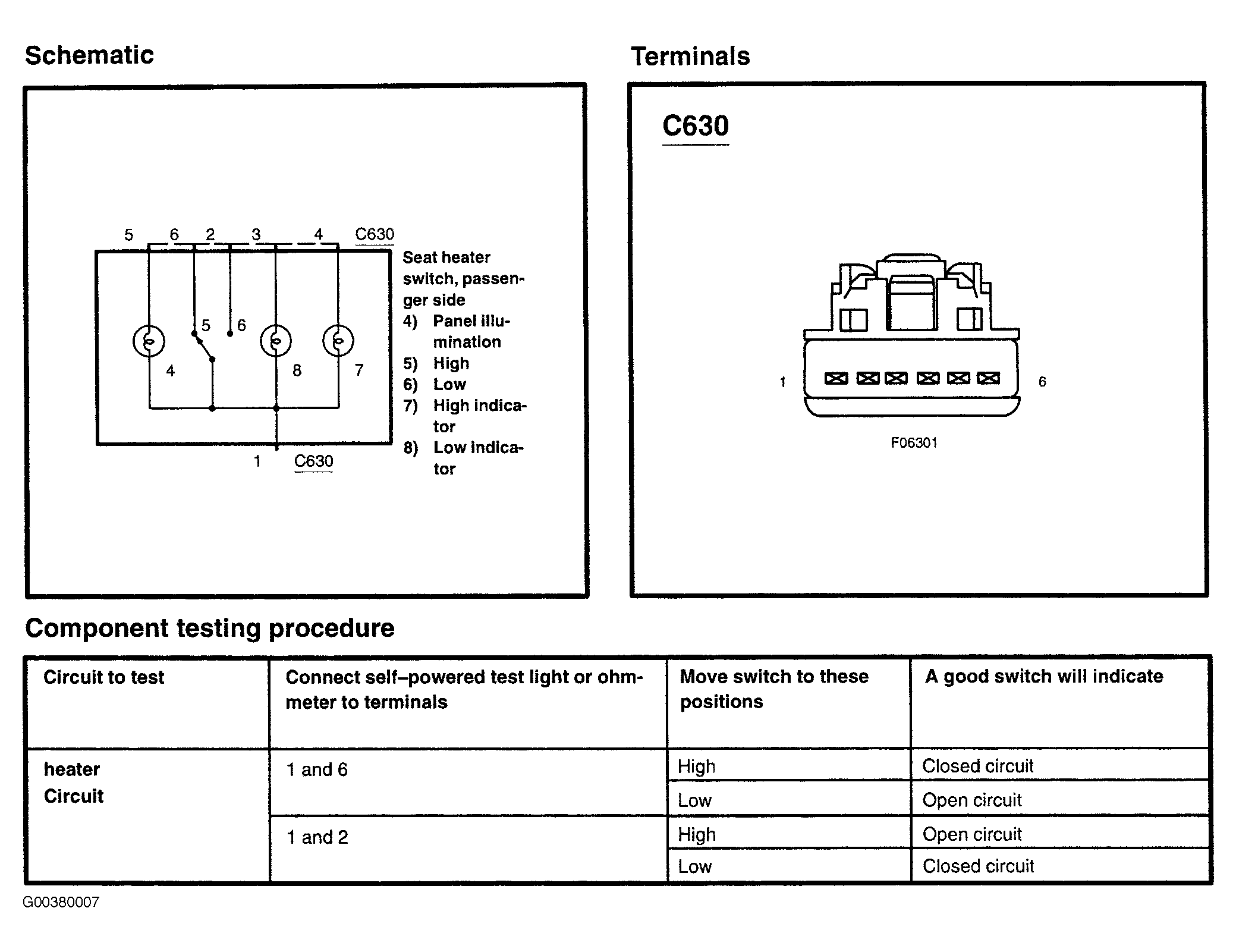

Fig 2: Testing Seat Heater Switch - Passenger Side
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
