Anti-Lock Control - Anti-Wheelspin Control
›
Symptom Chart
Symptom Chart

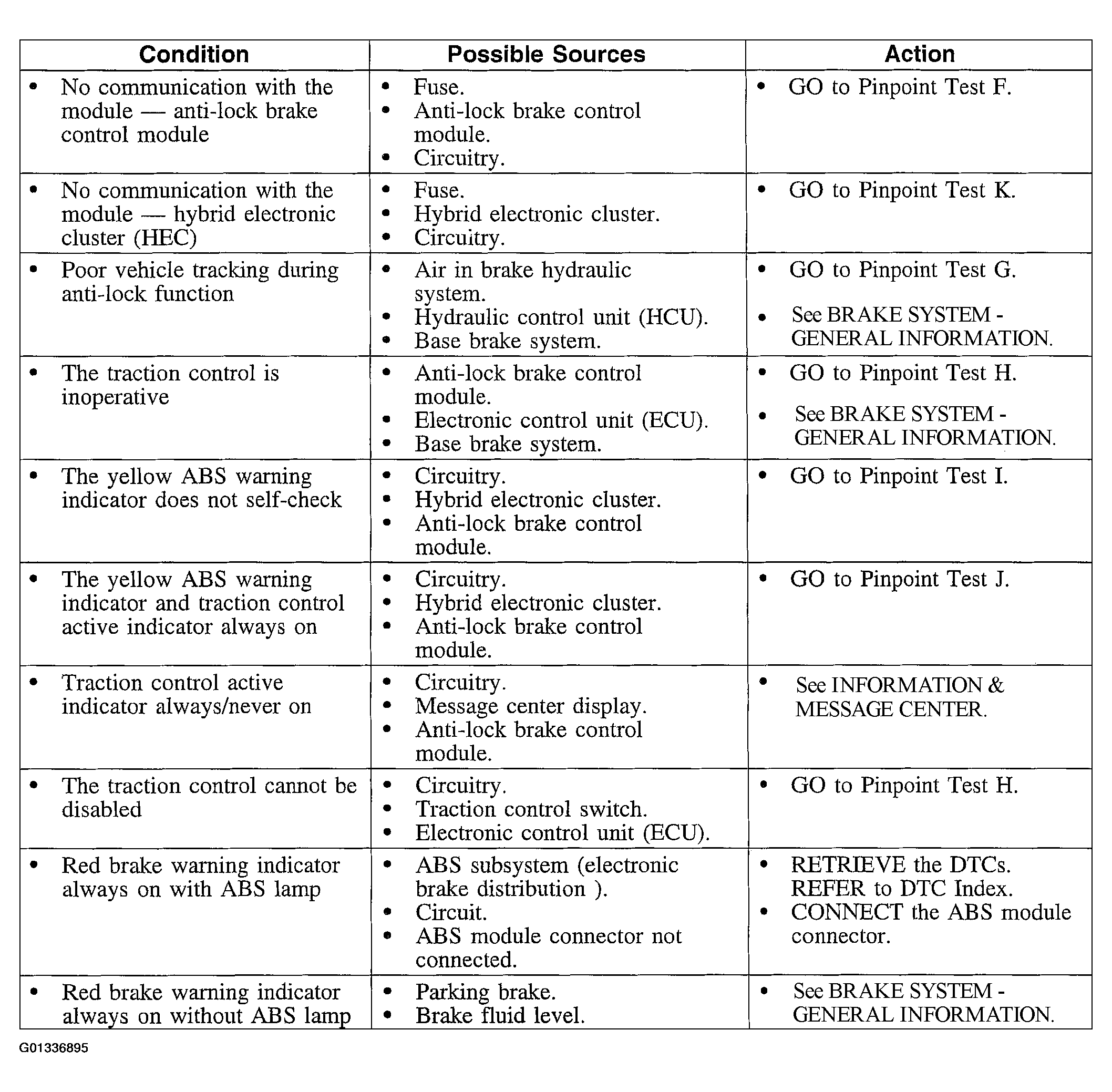

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
