Disassembly And Assembly Of Subassemblies: Piston: Disassembly

  1. Remove the clips.
    Fig 1: Locating Piston Pin Clips
    G01336320Courtesy of FORD MOTOR CO.
  2. Remove the piston pin from the piston and connecting rod assembly.
    Fig 2: Removing Piston Pin
    G01336321Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod from the piston.

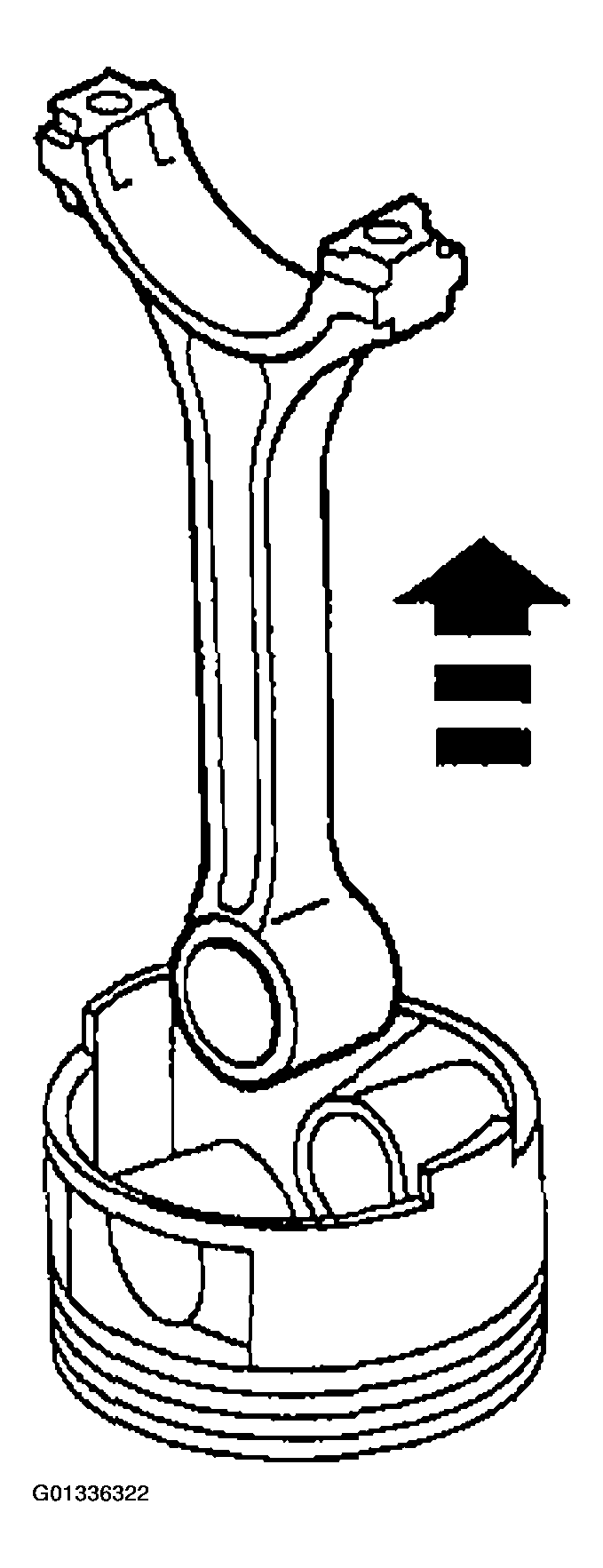

    Fig 3: Removing Connecting Rod
    G01336322Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. For additional information, see ENGINE SYSTEM - GENERAL INFORMATION .
