Clutch Pedal: Notes

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL CHART

Item	Specification
Premium Long Life Grease XG-1-T	ESA-M1C75-B

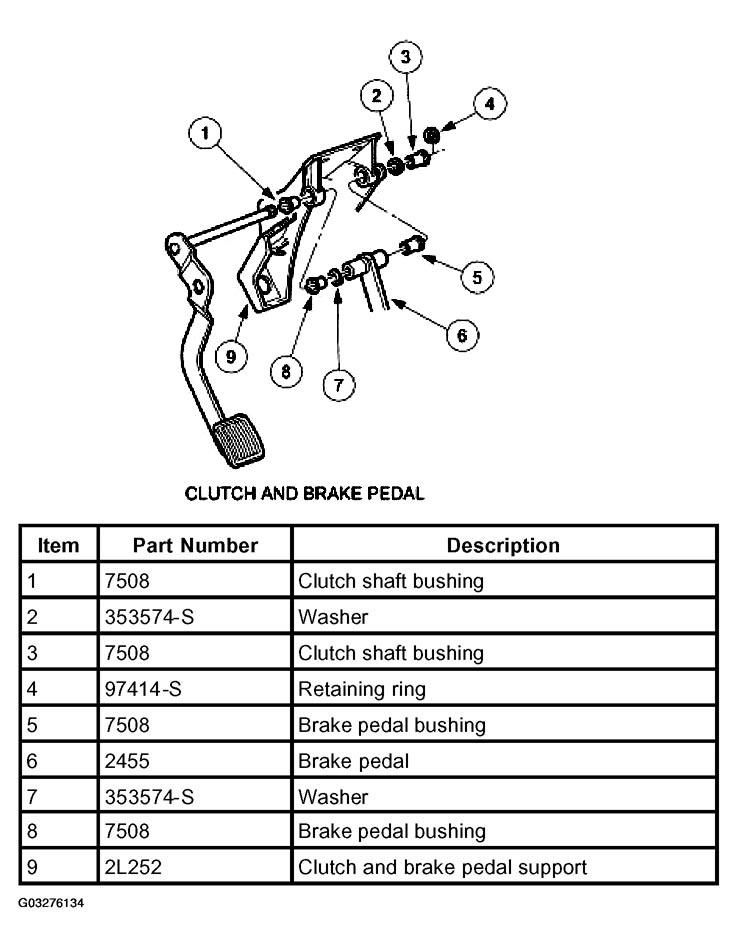

Fig 1: Exploded View Of Clutch Pedal

Courtesy of FORD MOTOR CO.
