Blower Motor Speed Control Module C297

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Blower Motor Speed Control Module C297

Courtesy of FORD MOTOR CO.

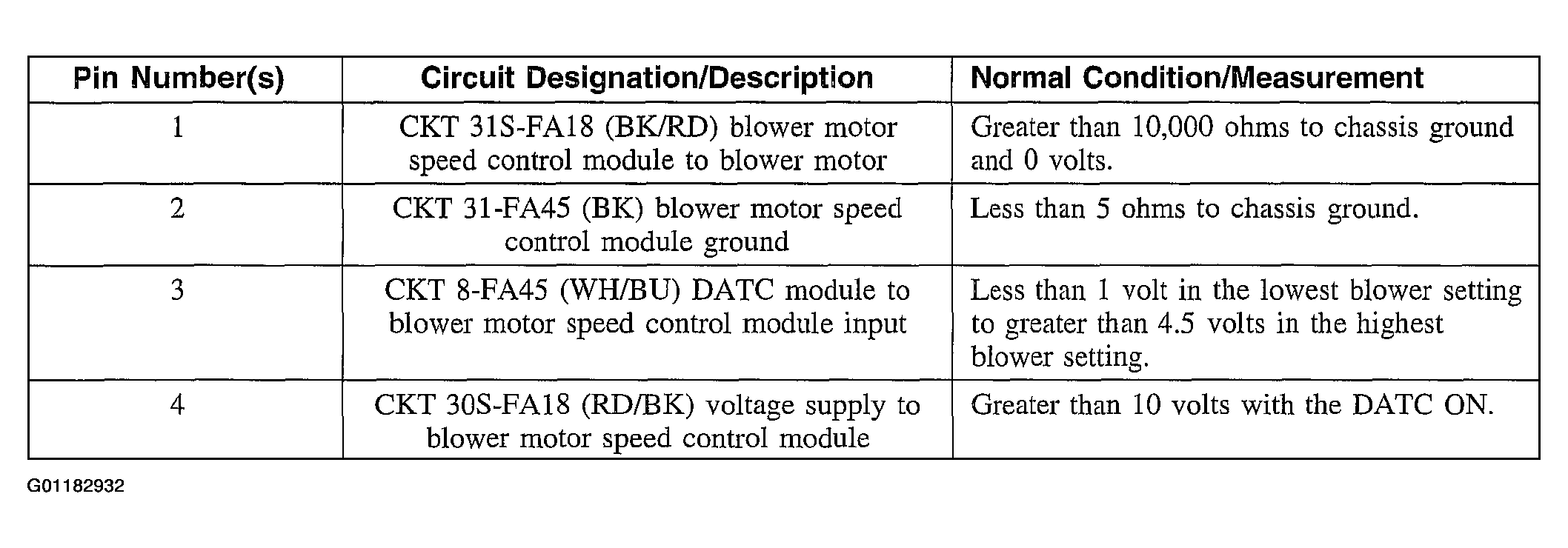

Fig 2: Blower Motor Speed Control Module C297 Pin Specifications Chart (1 - 4)

Courtesy of FORD MOTOR CO.
