In-Vehicle Temperature Sensor C233

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying In-Vehicle Temperature Sensor C233

Courtesy of FORD MOTOR CO.

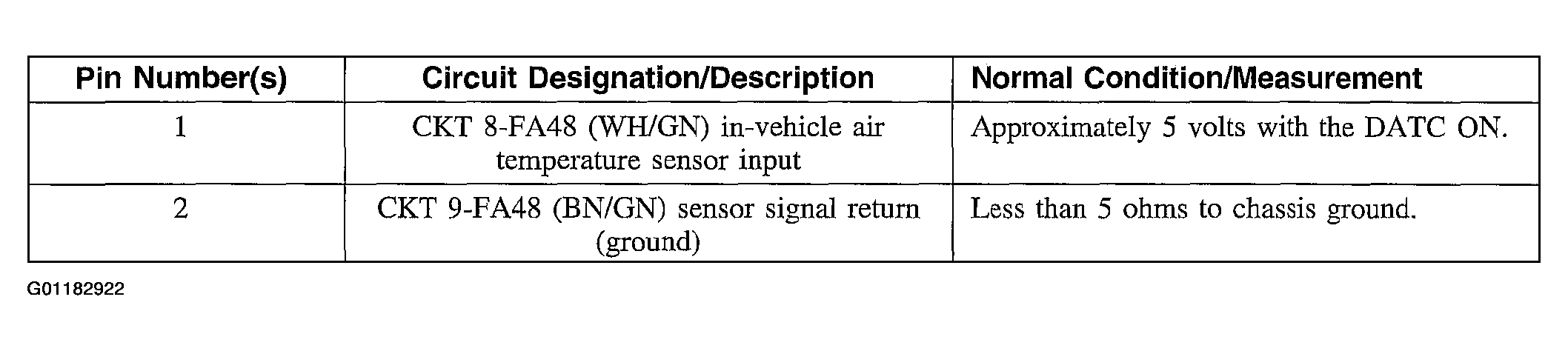

Fig 2: In-Vehicle Temperature Sensor C233 Pin Specifications Chart (1 - 2)

Courtesy of FORD MOTOR CO.
