Keyless Entry Keypad: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

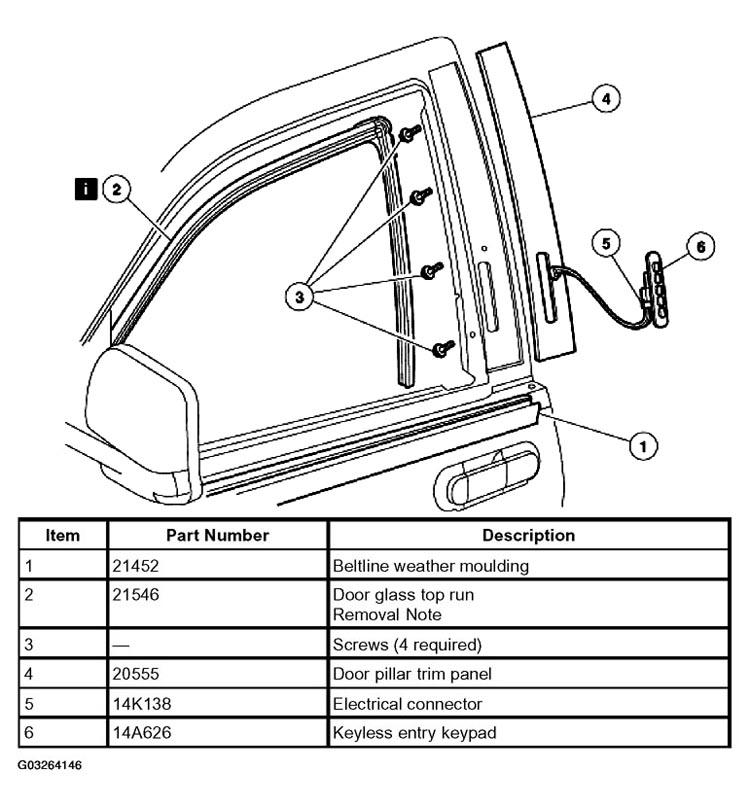

    Fig 1: Removing Keyless Entry Keypad
    G03264146Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
