Anti-Lock Control
›
Connector Circuit Reference Table
›
Primary Brake Pressure Transducer C147
Primary Brake Pressure Transducer C147

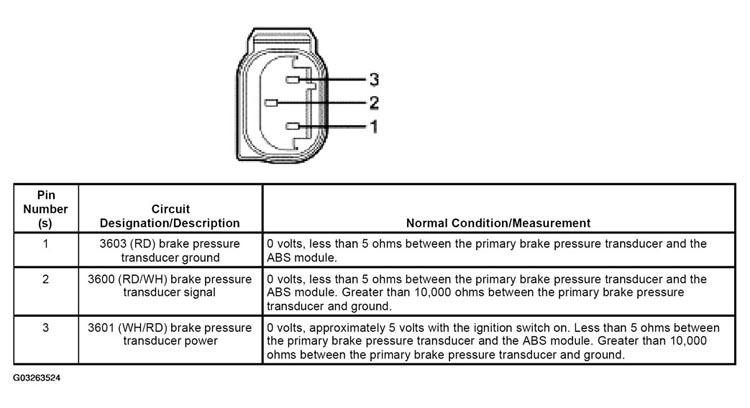

Fig 1: Identifying Primary Brake Pressure Transducer C147 Connector Terminal Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
