Anti-Lock Control
›
Connector Circuit Reference Table
›
Stability Assist Switch C280
Stability Assist Switch C280

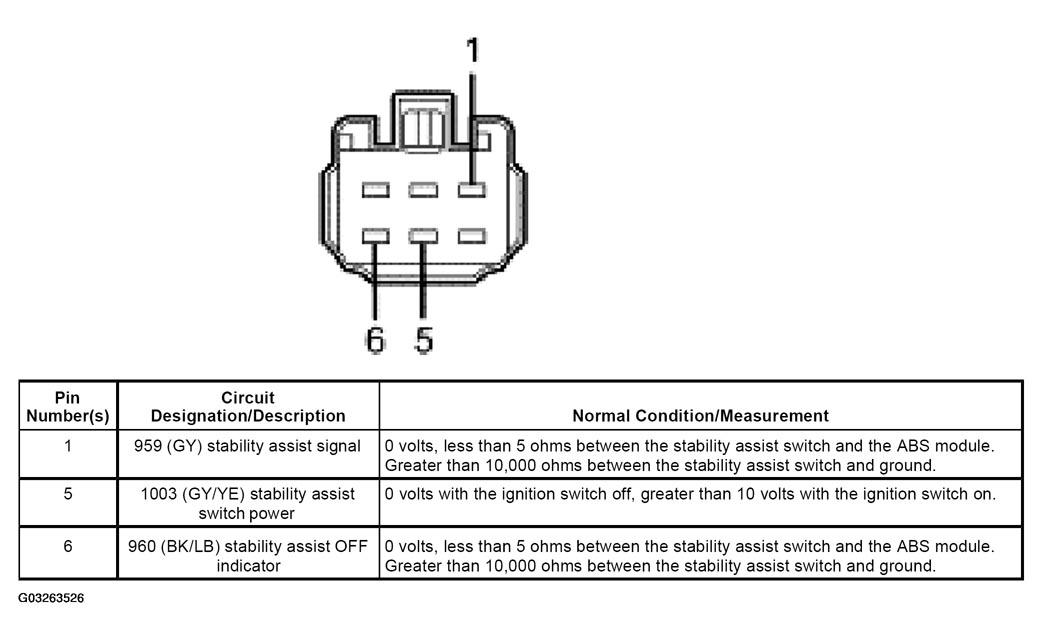

Fig 1: Identifying Stability Assist Switch C280 Connector Terminal Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
