Anti-Lock Control
›
Connector Circuit Reference Table
›
Steering Wheel Rotation Sensor C226
Steering Wheel Rotation Sensor C226

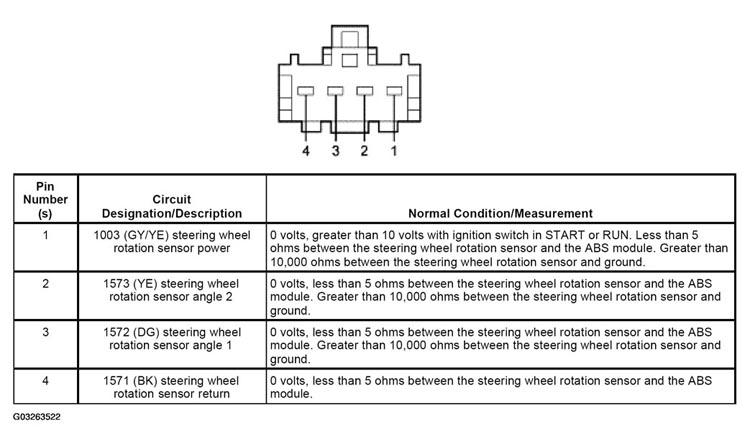

Fig 1: Identifying Steering Wheel Rotation Sensor C226 Connector Terminal Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
