Component testing
›
Multifunction Switch, Wiper/Washer Portion
Multifunction Switch, Wiper/Washer Portion

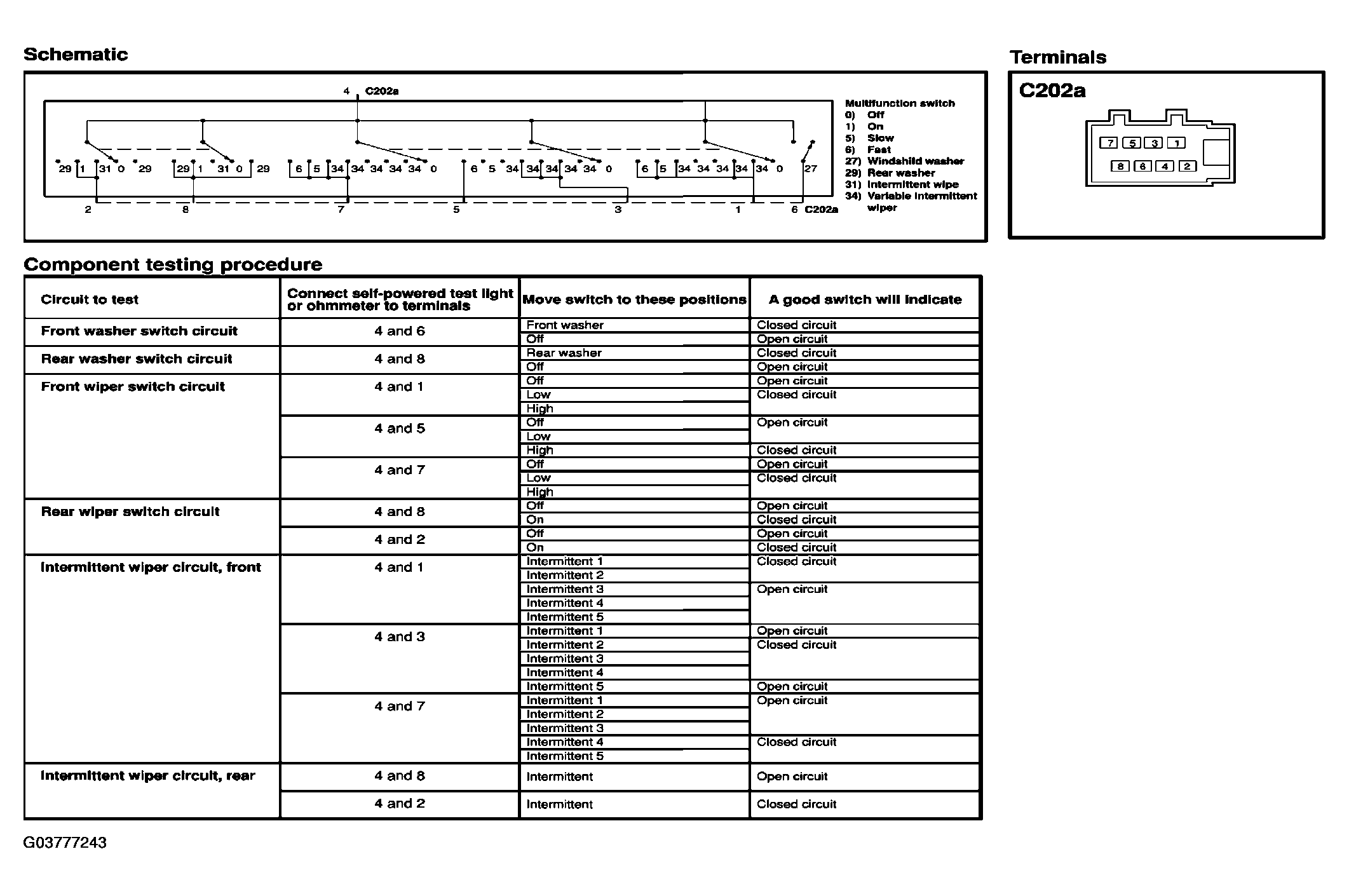

Fig 1: Testing Multifunction Switch - Wiper/Washer Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
