Self Diagnostics

Although on the SCP network, the navigation system provides internal diagnostics to assist with diagnosing vehicle concerns.

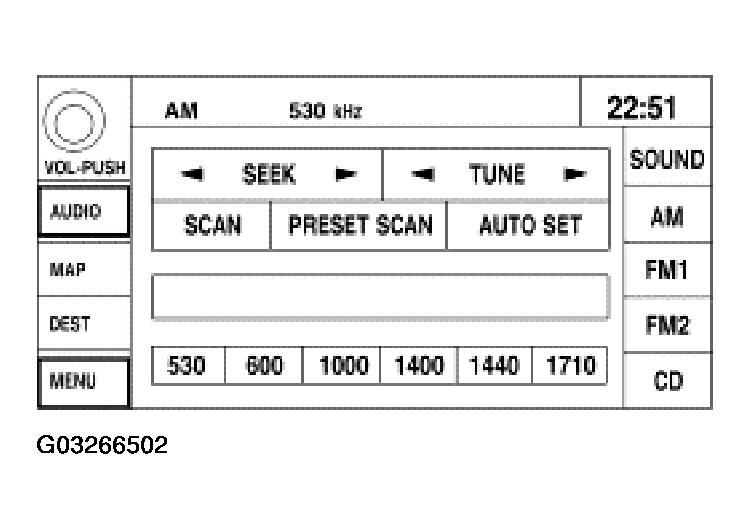

Fig 1: Displaying Audio System Front Panel

Courtesy of FORD MOTOR CO.

Press and hold the AUDIO and MENU buttons for 5 seconds.

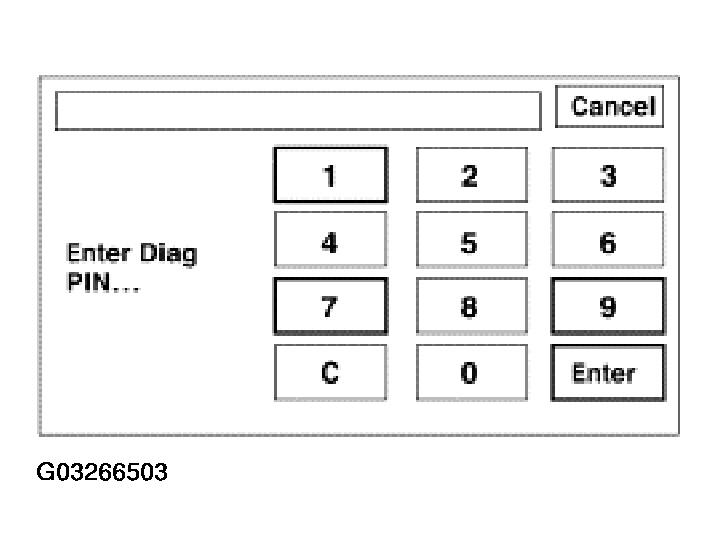

Fig 2: Displaying AUDIO And MENU Button

Courtesy of FORD MOTOR CO.

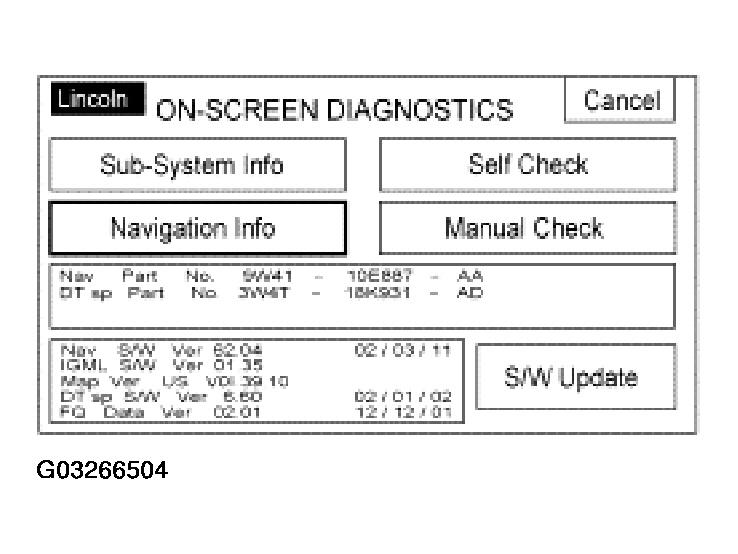

Fig 3: Displaying ON SCREEN DIAGNOSTICS

Courtesy of FORD MOTOR CO.

• SELF CHECK provides internal self-test diagnostics. These DTCs are also accessible through the SCP network utilizing a diagnostic tool.
• NAVIGATION INFO provides access to speed signal, gyro, reverse input, and GPS information.
• SUB-SYSTEM INFO provides the various component configurations.
• MANUAL CHECK provides access to several diagnostics input tests:
  • Voice Output will verify the audio signals from the navigation system module and audio unit.
  • Hard Switch Test will check the various hardkey switches.
  • Microphone Test will check the strength of the voice signal.
