Entertainment System
›
Connector Circuit Reference
›
Audio Unit Navigation System C2253b
Audio Unit Navigation System C2253b

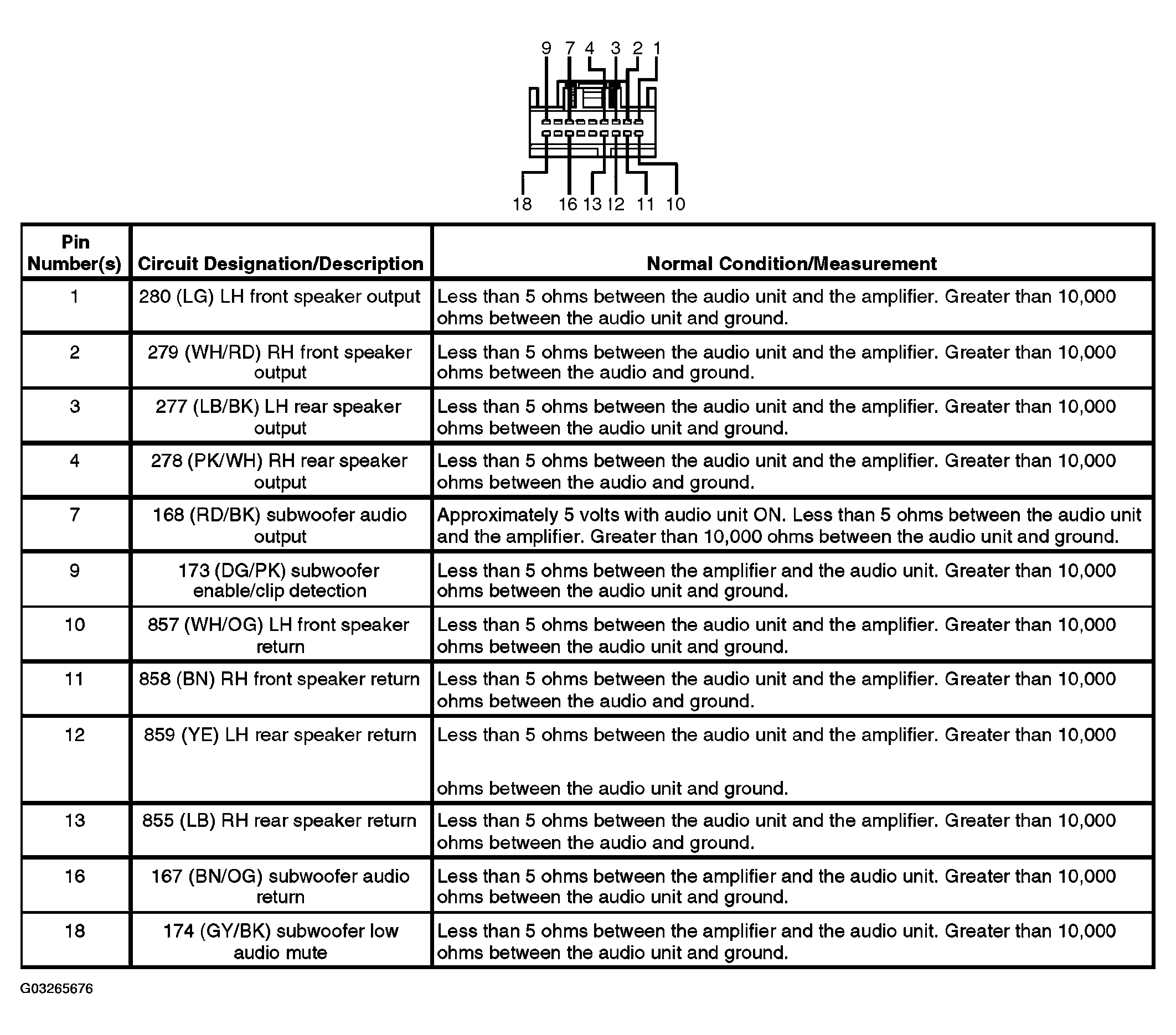

Fig 1: Identifying Audio Unit Navigation System C2253b Pinouts Reference Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
