Passive Anti-Theft System (PATS) - Pinpoint Tests
›
Connector Circuit Reference
›
Powertrain Control Module (PCM) C175b
Powertrain Control Module (PCM) C175b

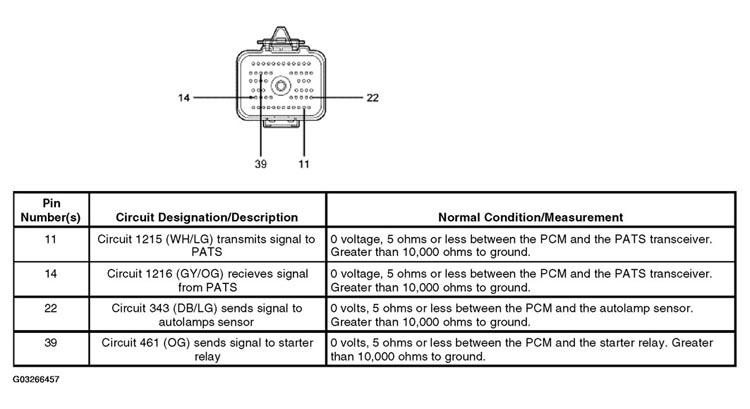

Fig 1: Identifying Powertrain Control Module C175b
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
