Item 17: Pinion Position Shim Disassembly Note

  1. Measure and record the thickness of the pinion position shim for reference during assembly.

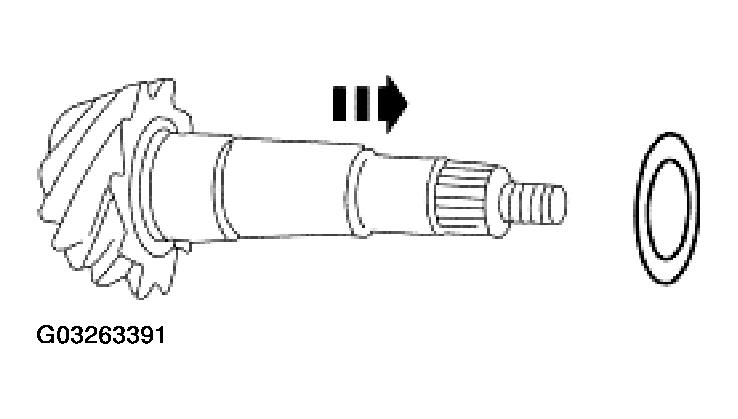

    Fig 1: Identifying Pinion Position Shim
    G03263391Courtesy of FORD MOTOR CO.
