Rear Axle Assembly: Material

MATERIAL CHART

Item Specification
Premium Long Life Grease XG-1-C ESA-M1C75-B
Threadlock and Sealer E0AZ-19554-AA WSK-M2G351-A5
Stud and Bearing Mount E0AZ-19554-BA WSK-M2G349-A1
  1. Position the vehicle on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear axle assembly. For additional information, refer to REAR AXLE ASSEMBLY .
  3. Remove the parts in the order indicated in the following illustration and table.

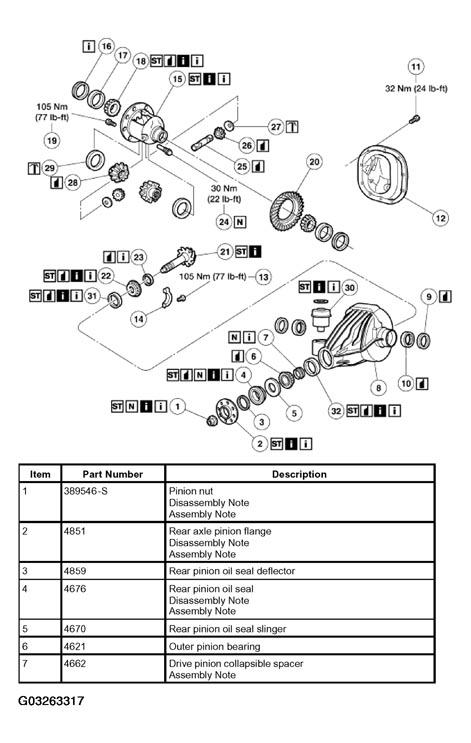

    Fig 1: Disassemble Order Of Rear Axle Assembly Components (1 Of 2)
    G03263317Courtesy of FORD MOTOR CO.

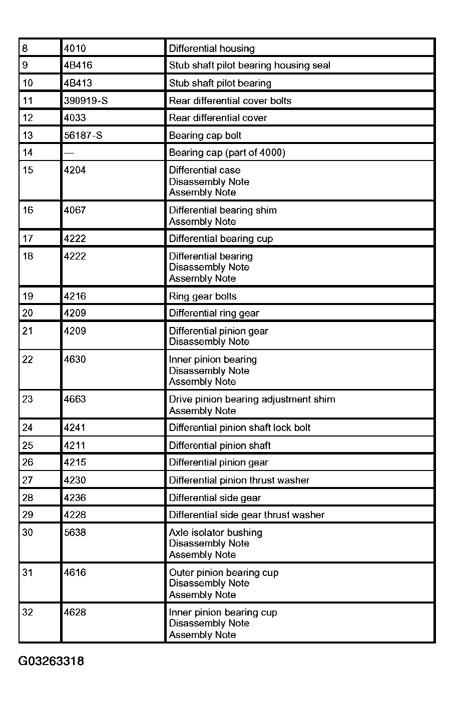

    Fig 2: Disassemble Order Of Rear Axle Assembly Components (2 Of 2)
    G03263318Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
  5. Fill the axle with the specified quantity of the specified lubricant.
