Central Junction Box
NOTE:

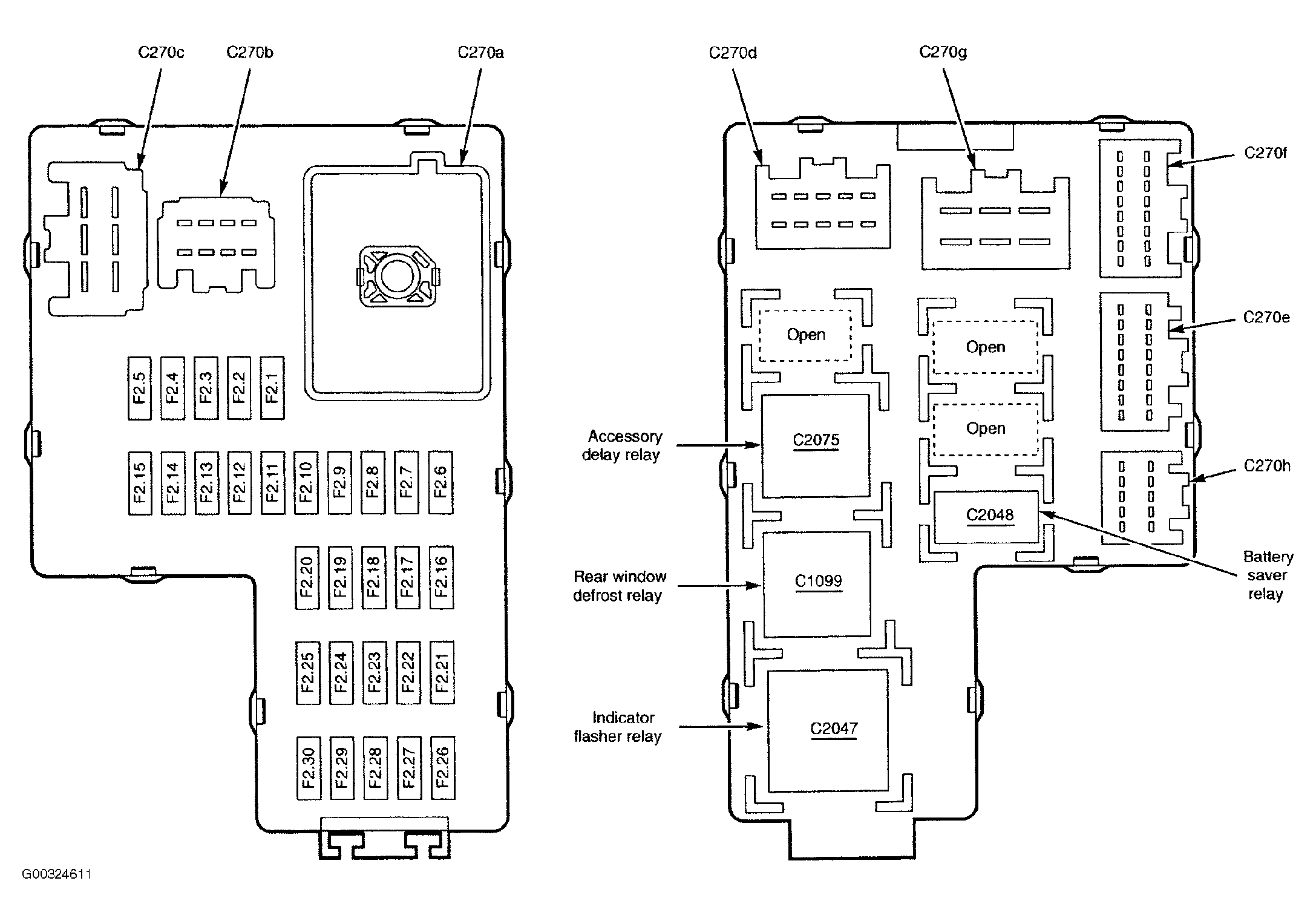

Central junction box is located on driver's side end of instrument panel. See Fig 1 and Fig 2
.
CENTRAL JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C2047 | Indicator flasher relay |
| C1099 | Rear window defrost relay |
| C2075 | Accessory delay relay |
| C2048 | Battery saver relay |
CENTRAL JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F2.1 | 30 | Roof opening panel motor asy, Pwr st sw (left), Rf opening pnl sw |
| F2.2 | 10 | Drivers memory st mod, Low tire press mod, Central Security Mod (CSM), Variable Assist Pwr Stng (VAPS) module, Sunload/autolamp sensor (PATS LED) |
| F2.3 | 20 | With Navigation: Nav ECU mod, Nav head unit Less Navigation: Audio units (DM100 & CDx6) |
| F2.4 | 5 | Windshield wiper motor |
| F2.5 | 15 | Indicator flasher relay, Multi-function sw, Park/turn Ip (left & right front), Extr rr view mir (left & right), Inst clus |
| F2.6 | 5 | Roof opng pnl mtr asy, Capacitor, Ant, Power window motor (LF), Nav ECU mod, Nav head unit, Audio units (DM100 & CDx6), Roof opng pnl sw |
| F2.7 | 15 | Dual Auto Temp Contr (DATC) mod (rr def ind), Extr rr vw mir (I & rt) |
| F2.8 | 5 | Daytime Running Lamp (DRL) module, heated PCV |
| F2.9 | 10 | DTS sns, Reversing lamps (I & rt), Nav ECU module, Trailer tow backup lamp relay, inside rear view mirror unit, PAM mod |
| F2.10 | 10 | Rr wdo def relay coil, Clim contr st mod, Ft aux A/C sw, Aux temp actu, A/C clutch relay cont, A/C clutch sol, A/C ind clutch diode |
| F2.11 | - | not used |
| F2.12 | 15 | Restraints Control Module (RCM) |
| F2.13 | 10 | Brake shift module |
| F2.14 | - | not used |
| F2.15 | 5 | Low tire pressure mod, Instrument cluster, Rr wiper motor asy |
| F2.16 | 20 | DLC (OBDII), Cigar lighter (frt) |
| F2.17 | 15 | Ace delay relay coil, Batt saver relay coil & contact, Glove box Ip, Vanity mirror Ip (I & rt), Interior map Ip asy (frt & rr), Homelink mod, Cargo Ip asy, Instrument cluster contacts |
| F2.18 | - | not used |
| F2.19 | 15 | Windshield washer pump motor |
| F2.20 | 5 | Brake shift module, Clock, DVD player, Exterior rear view mirror sw |
| F2.21 | 10 | Interactive Vehicle Dynamics (IVD) sw, F1.45, Indicator flasher relay |
| F2.22 | 10 | ABS control module |
| F2.23 | 7.5 | Liftgate lock actuator relay coil & contacts, Liftgate lock actuator |
| F2.24 | 30 | With CDX6 Radio: Subwoofer amplifier (rear) With Nav Radio: Navigation amplifier |
| F2.25 | 5 | Trailer tow battery charge relay coil |
| F2.26 | 5 | Passive Anti-Theft (PATS) |
| F2.27 | 5 | Parking Aid Module (PAM), Variable Assist Power Steering (VAPS) solenoid |
| F2.28 | 5 | Audio unit (CDX6, DM100, Navigation head unit) |
| F2.29 | 10 | Digital Trans Range (DTR) sns, Starter motor relay coil |
| F2.30 | 5 | Electronic compass, Instrument cluster, Auxiliary A/C relay contacts, Dual Auto Temperature Control (DATC) mod, Auxiliary blower motor, Auxiliary climate switch (frt & rr) |
