Instrument Cluster: Notes

    CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
  1. Remove the instrument cluster. For additional information, refer to INSTRUMENT CLUSTER .
  2. Disassemble the parts in the order indicated in the following illustration and table.

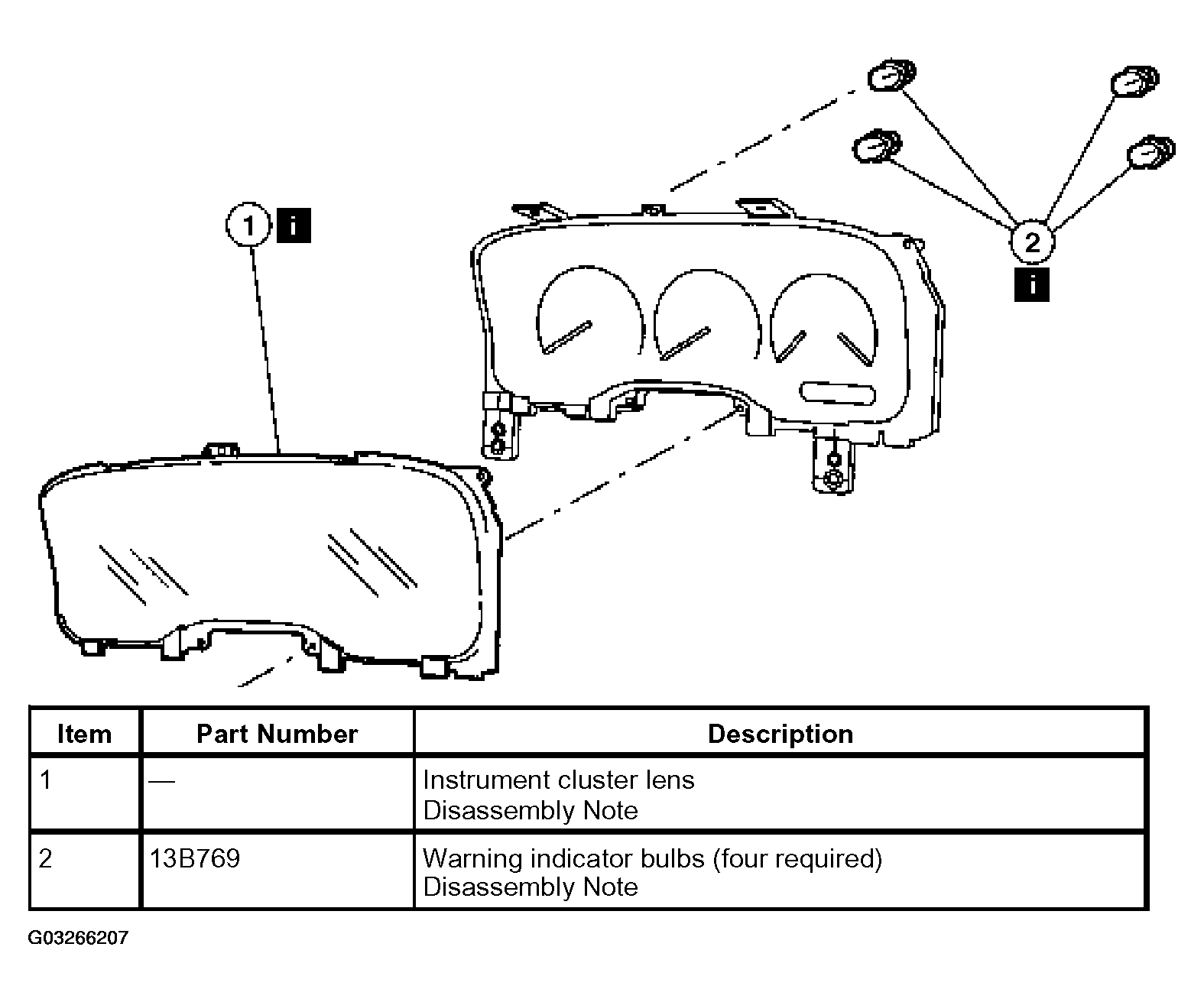

    Fig 1: Identifying Removal Sequence Of Instrument Cluster
    G03266207Courtesy of FORD MOTOR CO.
  3. To assemble, reverse the disassembly procedure.
