Dimmer Module

Disconnect the battery.
Remove the LH quarter trim panel. For additional information, refer to BODY SYSTEM - EXTERIOR .
Remove the parts in the order indicated in the following illustration and table.

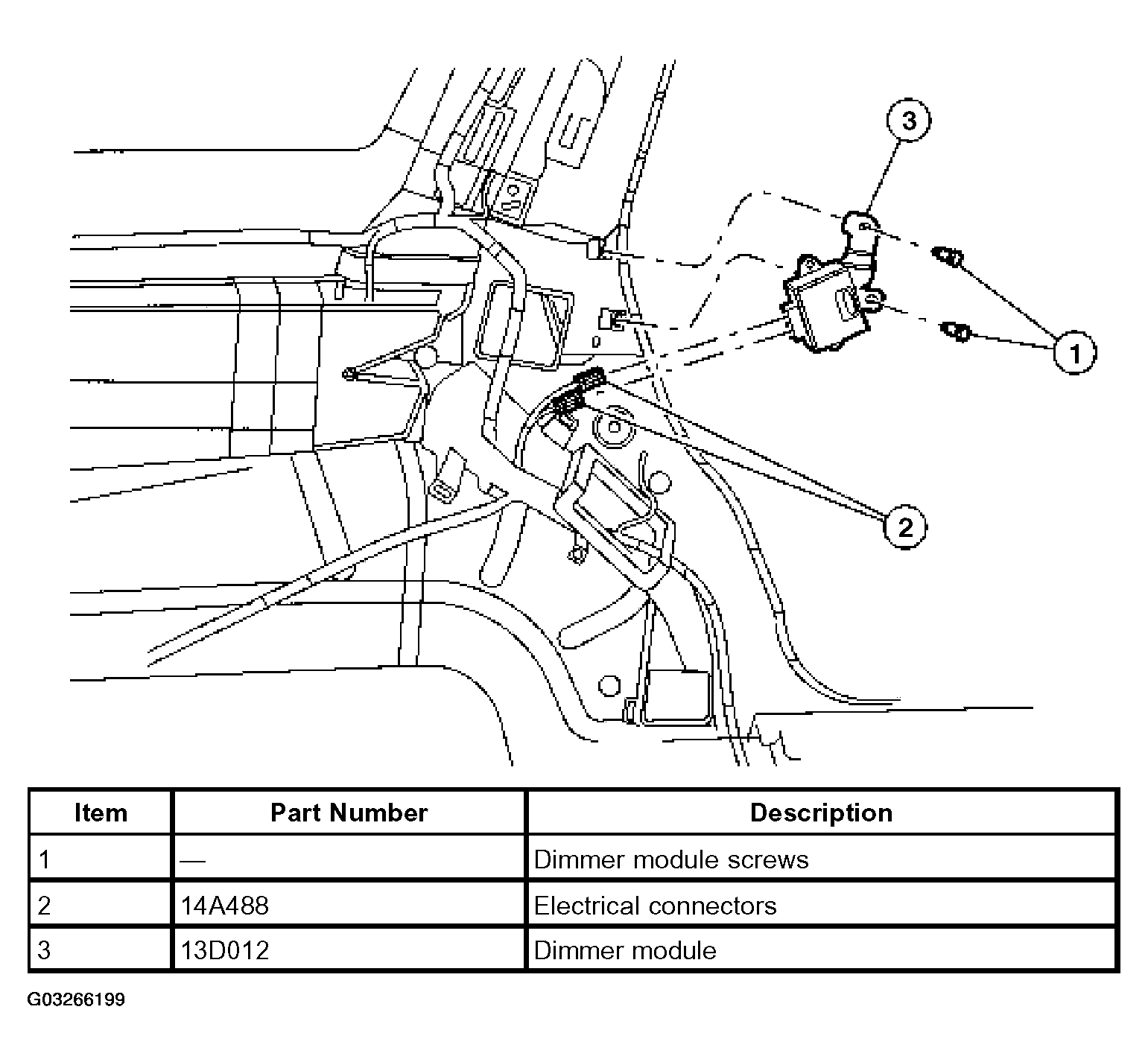

Fig 1: Identifying Removal Sequence Of Dimmer Module
Courtesy of FORD MOTOR CO.
To install, reverse the procedure.
