Message Center: Notes

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Remove the console trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

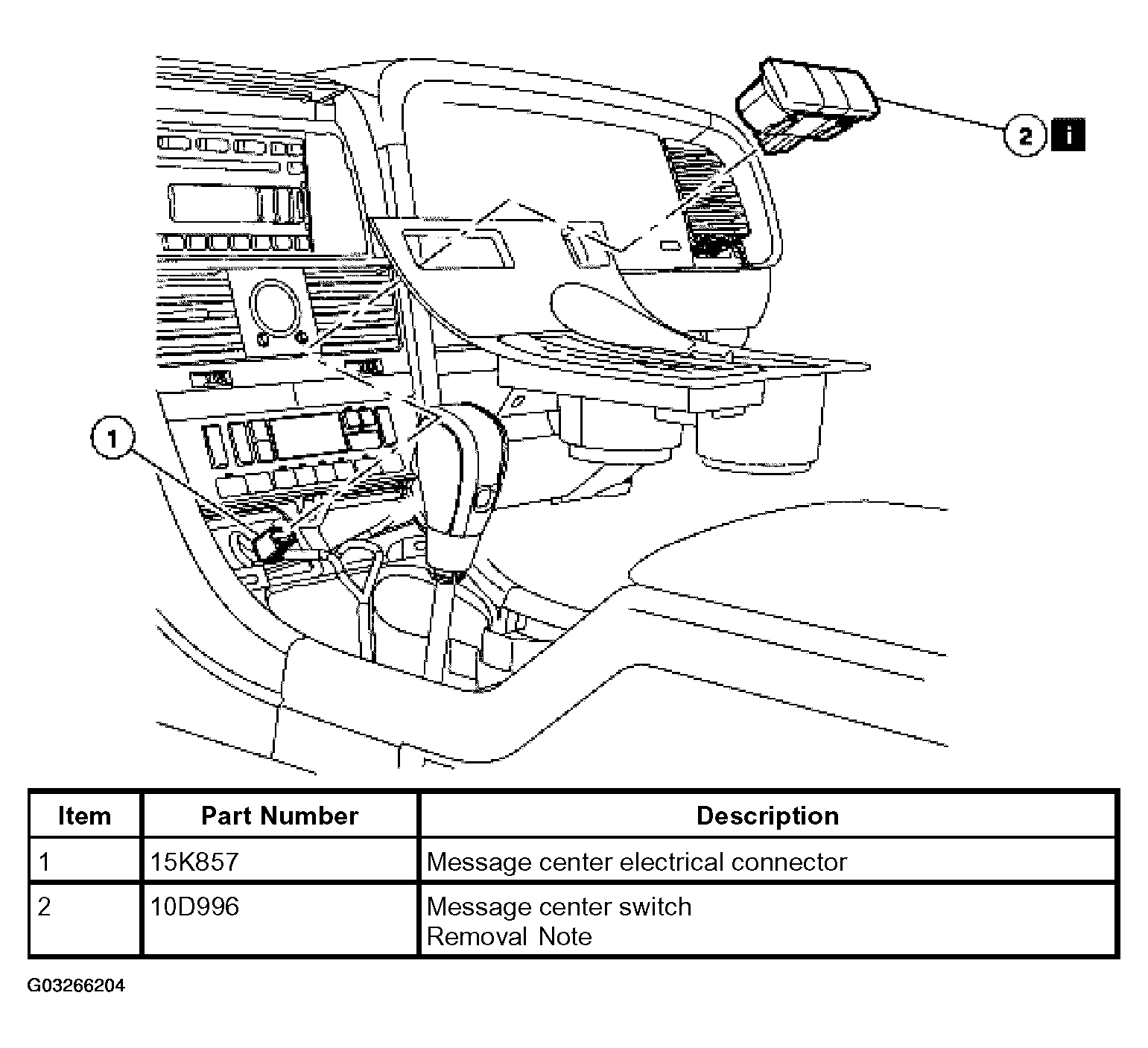

Fig 1: Identifying Removal Sequence Of Message Center
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
