Parking Aid Module

Remove the RH quarter trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

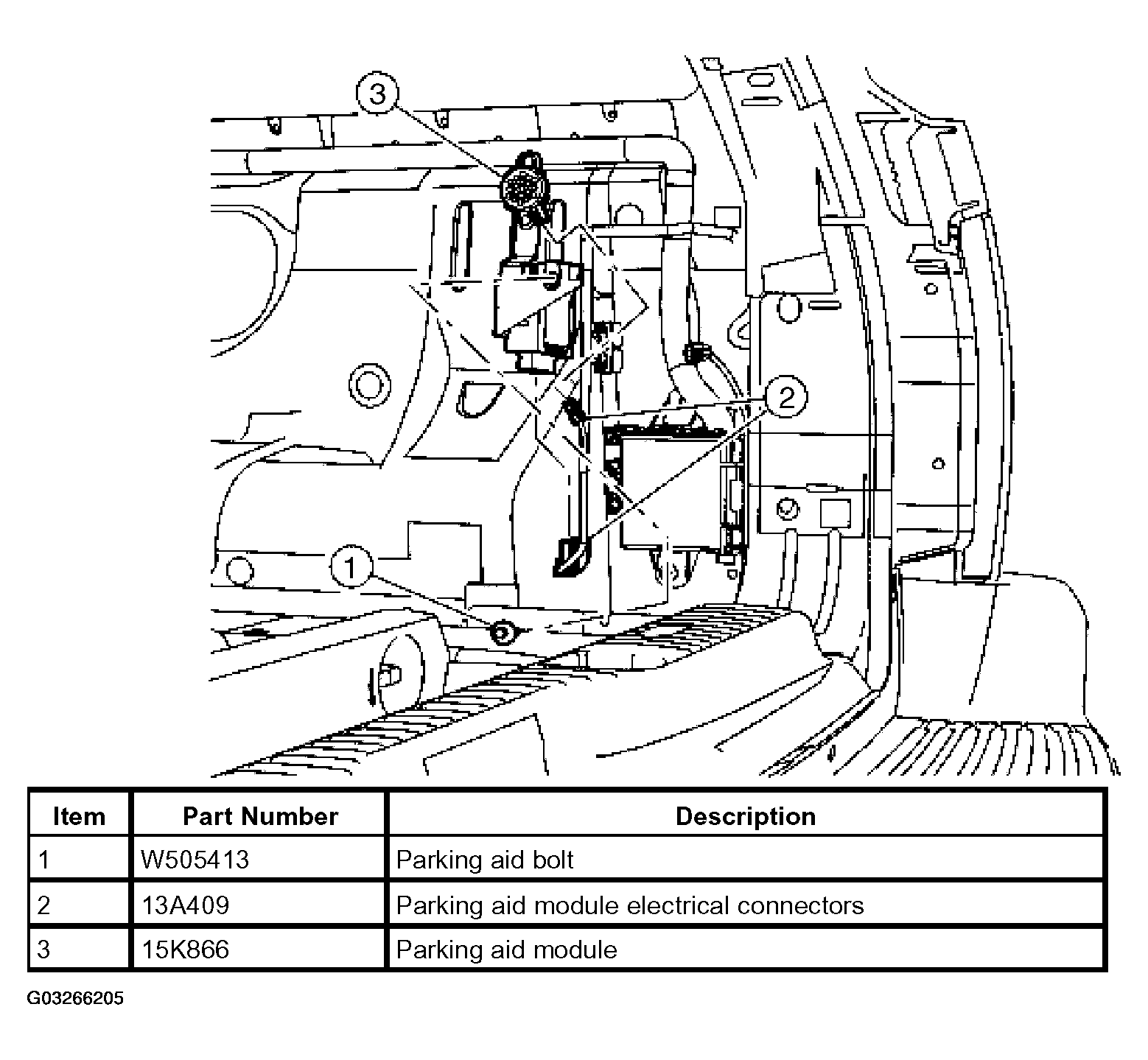

Fig 1: Identifying Removal Sequence Of Parking Aid Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
