Water Pump: Notes
MATERIALS
| Item | Specification |
|---|---|
| Motorcraft Premium Engine Coolant VC-4-A (in Canada CXC-10, in Oregon VC-5) or equivalent (green color) | ESE-M97B44-A |
| Motorcraft Premium Gold Engine Coolant VC-7-A (in Oregon VC-7-B) or equivalent (yellow color) | WSS-M97B51-A1 |
- Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
- Remove the cooling fan. For additional information, refer to COOLING FAN .
- Remove the upper fan shroud. For additional information, refer to RADIATOR, COOLING FAN AND SHROUD, AND DEGAS BOTTLE .
- Remove the accessory drive belt. For additional information, refer to ENGINE .

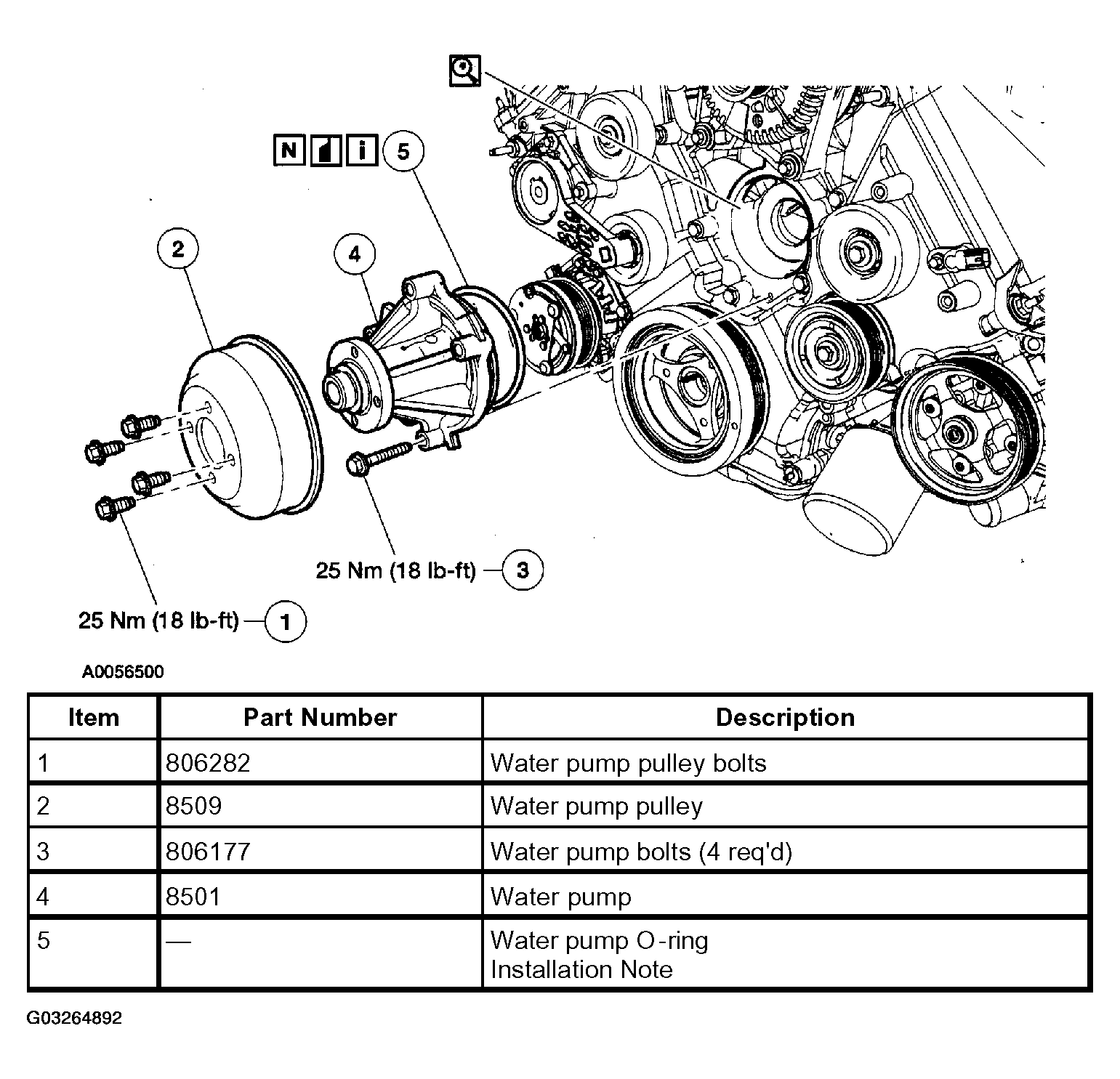

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
- Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
