Connecting Rod Large End Bore

Tighten the bolts to specification, then measure the bore in two directions. The difference is the connecting rod bore out-of-round. Verify the out-of-round is within specification.
1. Refer to ENGINE for the procedure.
2. If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

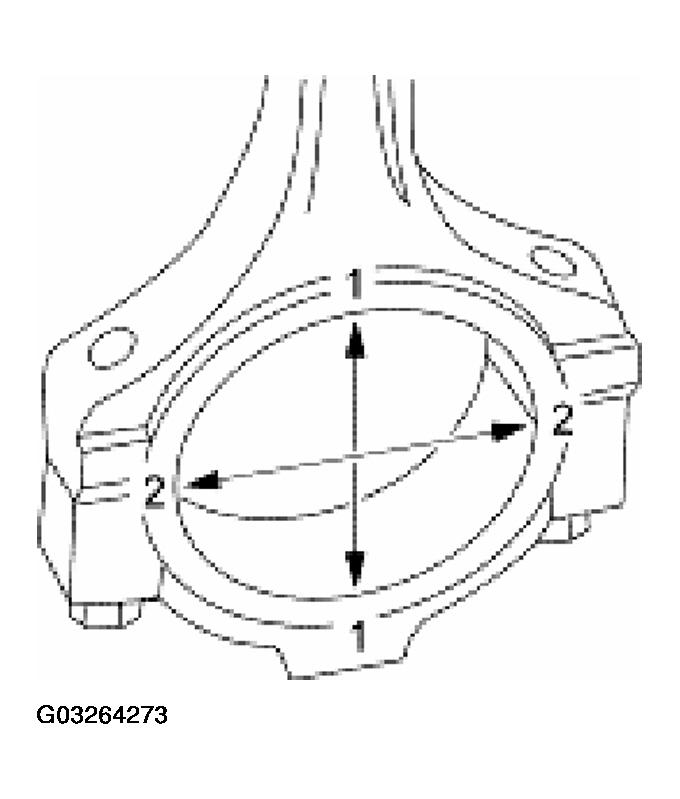

Fig 1: Measuring Connecting Rod Large End Bore
Courtesy of FORD MOTOR CO.
