Exhaust Manifold RH

  1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the RH front wheel and tire. For additional information, refer to SUSPENSION SYSTEM .
  3. Remove the RH front inner fenderwell. For additional information, refer to BODY SYSTEM - EXTERIOR .
  4. Remove the parts in the order indicated in the following illustration and table.

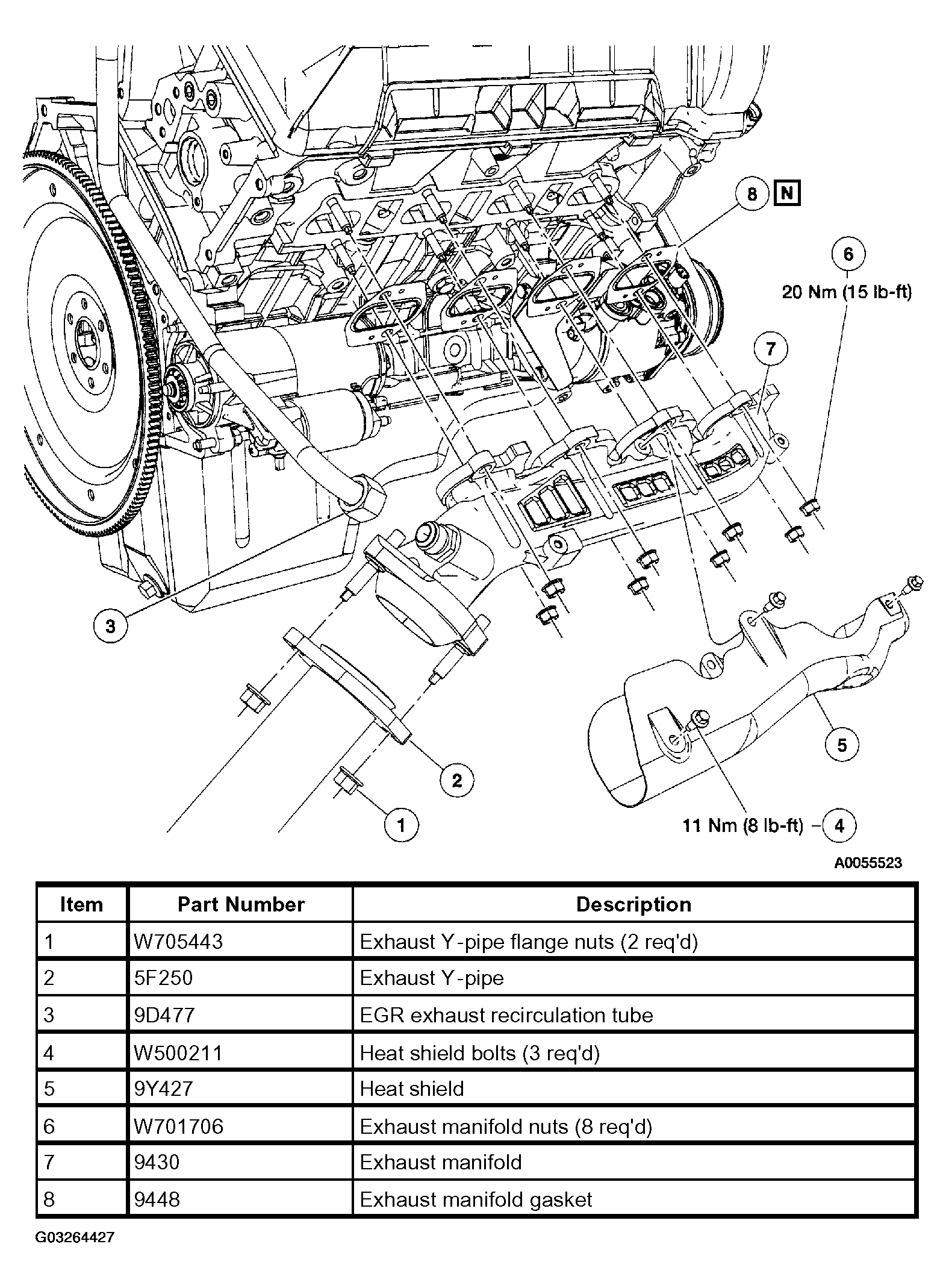

    Fig 1: Removing RH Exhaust Manifold
    G03264427Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
