Item 11: Lower Intake Manifold Bolts Installation Note

  1. Hand-start all fasteners.
  2. Tighten all fasteners in the sequence shown in the illustration to 10 Nm (89 lb-in).

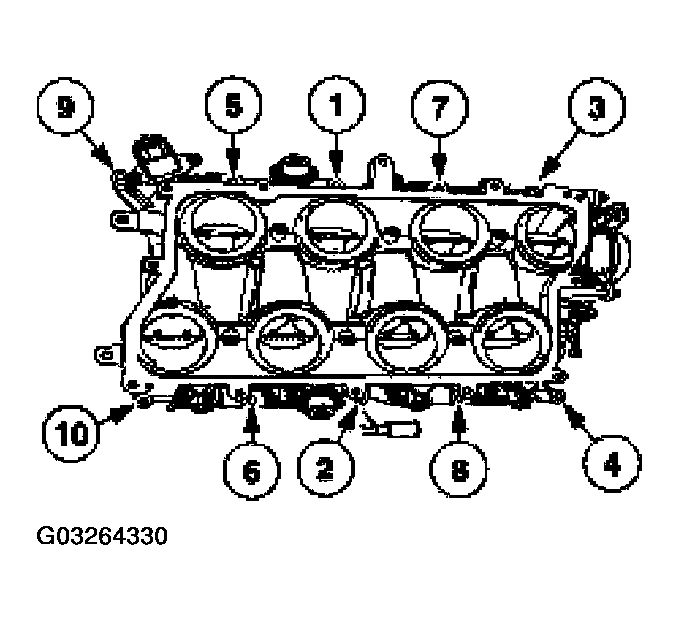

    Fig 1: Lower Intake Manifold Fastener Tightening Sequence
    G03264330Courtesy of FORD MOTOR CO.
