Throttle Body: Notes

CAUTION: Throttle body bore and plate area have a special coating and cannot be cleaned, or possible damage to the throttle body can occur.

Remove the engine appearance cover.
Remove the air cleaner outlet tube. For additional information, refer to AIR CLEANER ASSEMBLY .
Remove the parts in the order indicated in the following illustration and table.

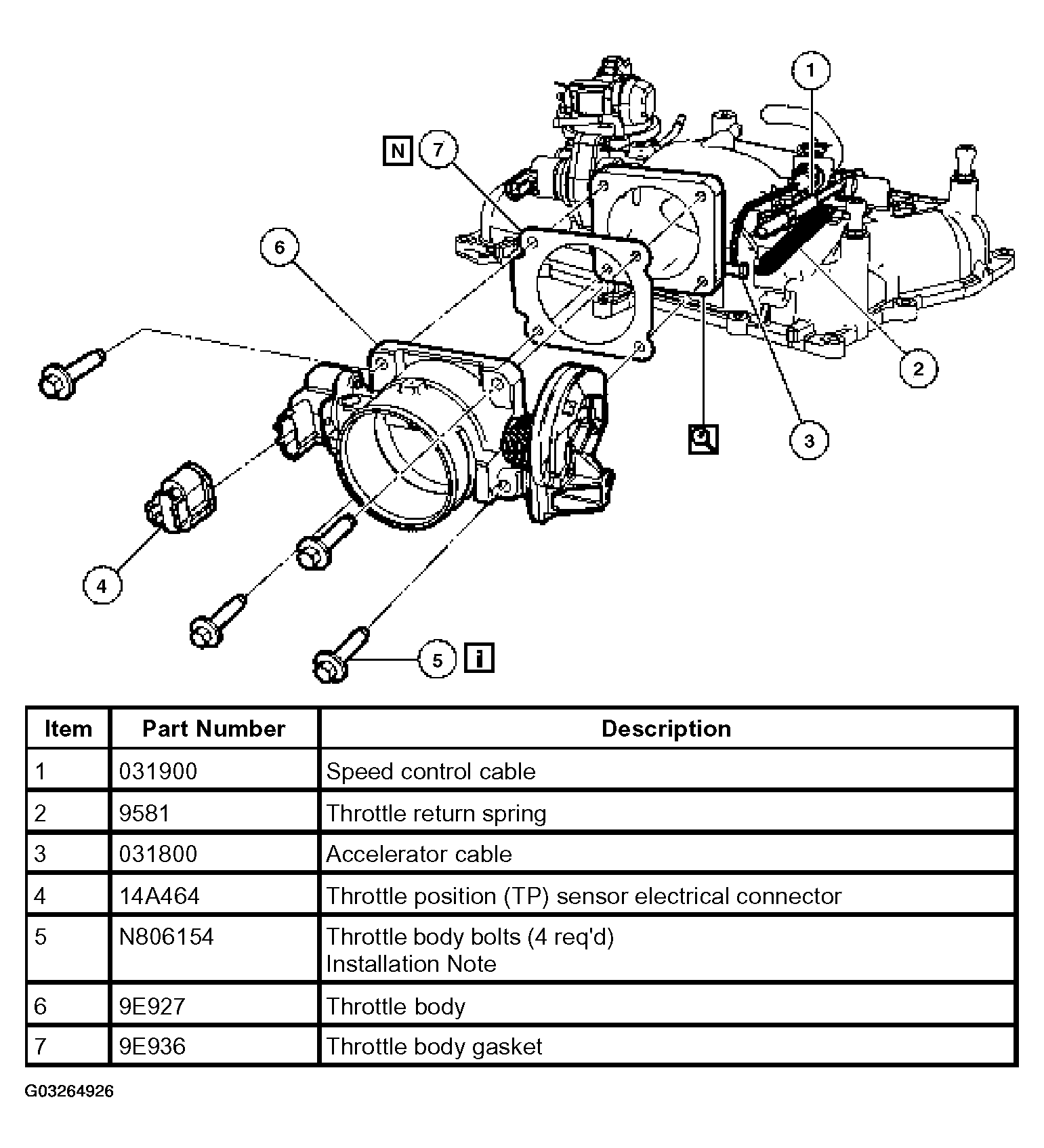

Fig 1: Removing Throttle Body Component
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
