Knock Sensor (KS)

Disconnect the battery ground cable.
Remove the lower intake manifold. For additional information, ENGINE .
Remove the parts in the order indicated in the following illustration and table.

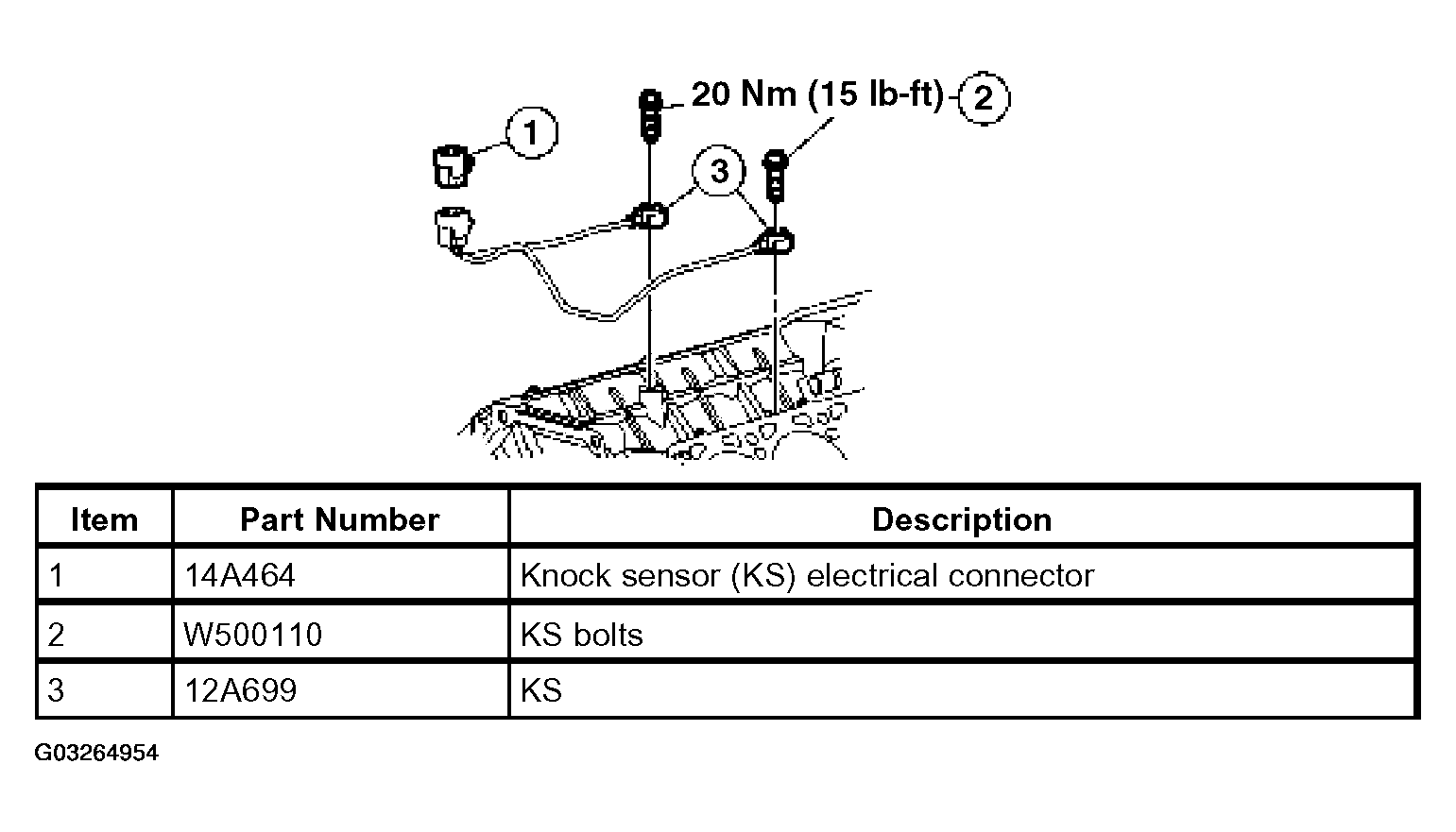

Fig 1: Removing Knock Sensor (KS)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
