Throttle Position (TP) Sensor

  1. Disconnect the battery ground cable.
  2. Remove the engine appearance cover.
  3. Remove the parts in the order indicated in the following illustration and table.

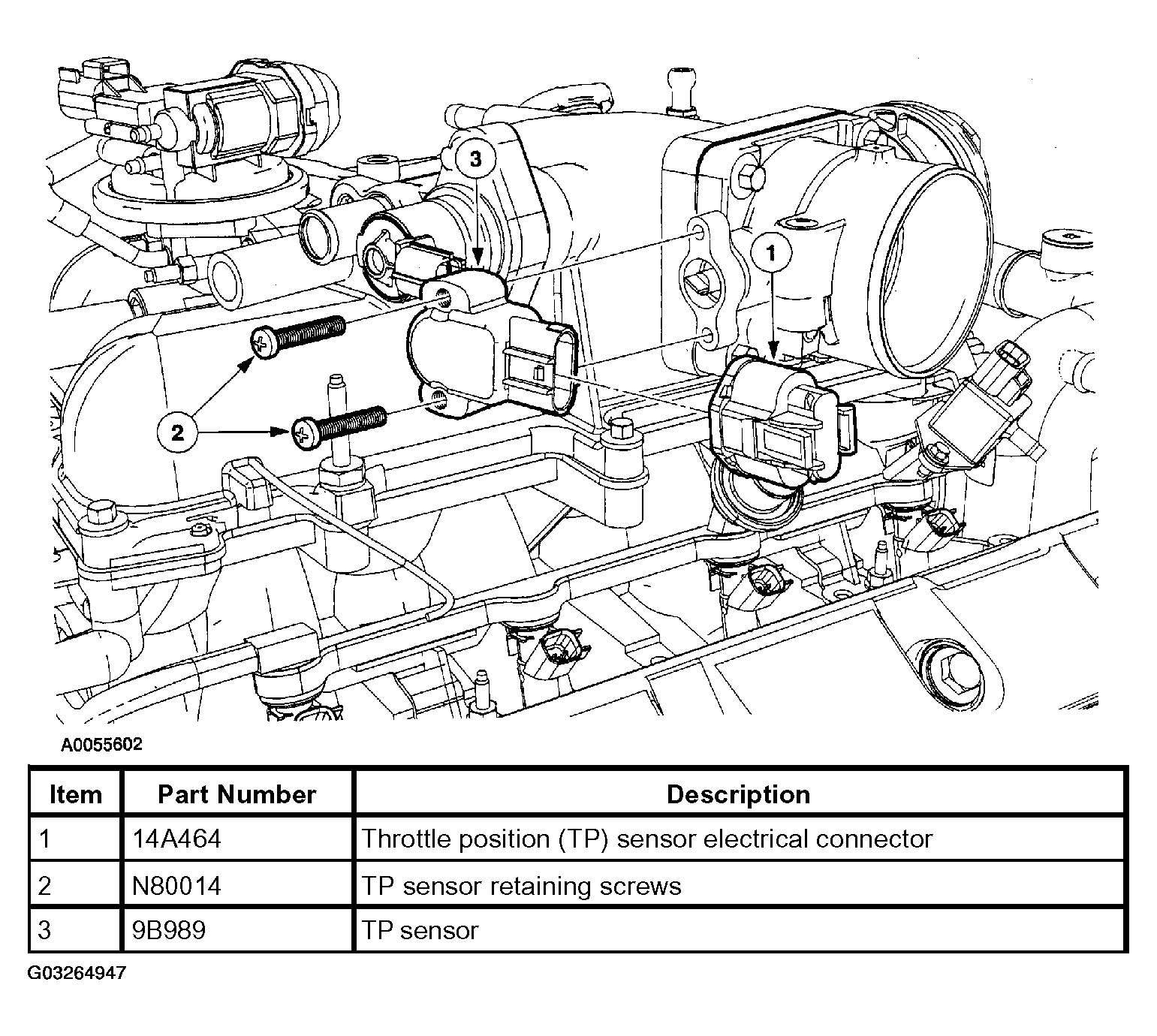

    Fig 1: Removing Throttle Position (TP) Sensor
    G03264947Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
