Front Impact Severity Sensor: Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: The tightening torque of the air bag front impact severity sensor retaining bolts is critical for correct system operation.

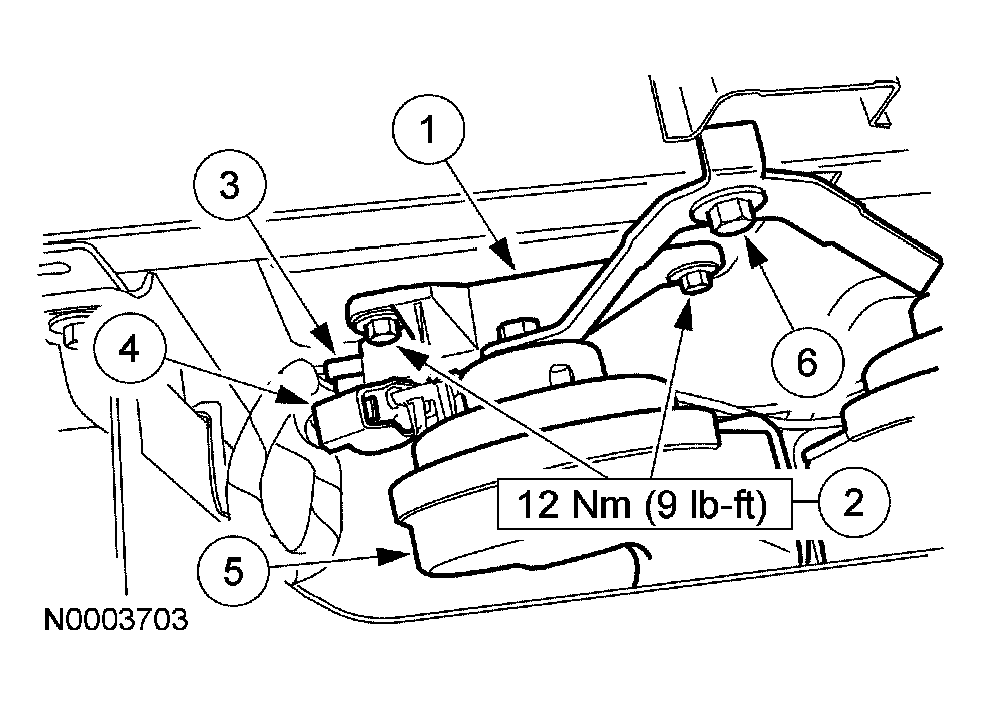

    Fig 1: Installing Front Impact Severity Sensor
    G04013032Courtesy of FORD MOTOR CO.
  1. Install the front impact severity sensor.
    1. Position the passenger side front impact severity sensor.
    2. Install the front impact severity sensor bolts.
    3. Connect the electrical connector.
    4. Connect the two horn electrical connectors (one shown) (RH only).
    5. Position the horn assembly (RH only).
    6. Install the horn bracket bolt (RH only).
  2. Position the header opening panel. Install the pin-type retainers.

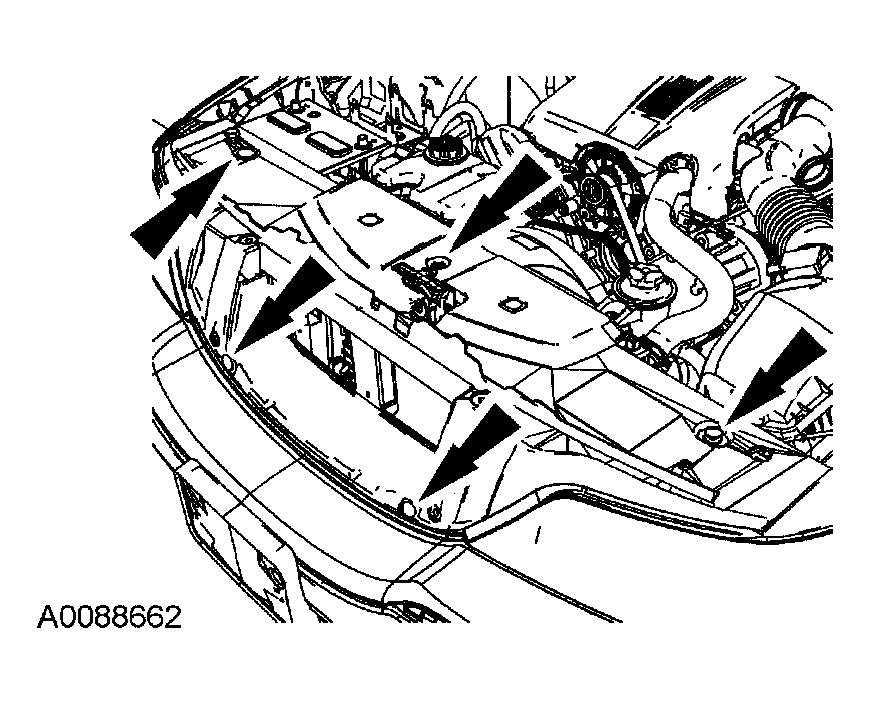

    Fig 2: Installing Pin-Type Retainers
    G04013030Courtesy of FORD MOTOR CO.
  3. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
