Passenger Air Bag Module: Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Make sure the J-clips on the back of the passenger air bag module are fully seated into the slots.

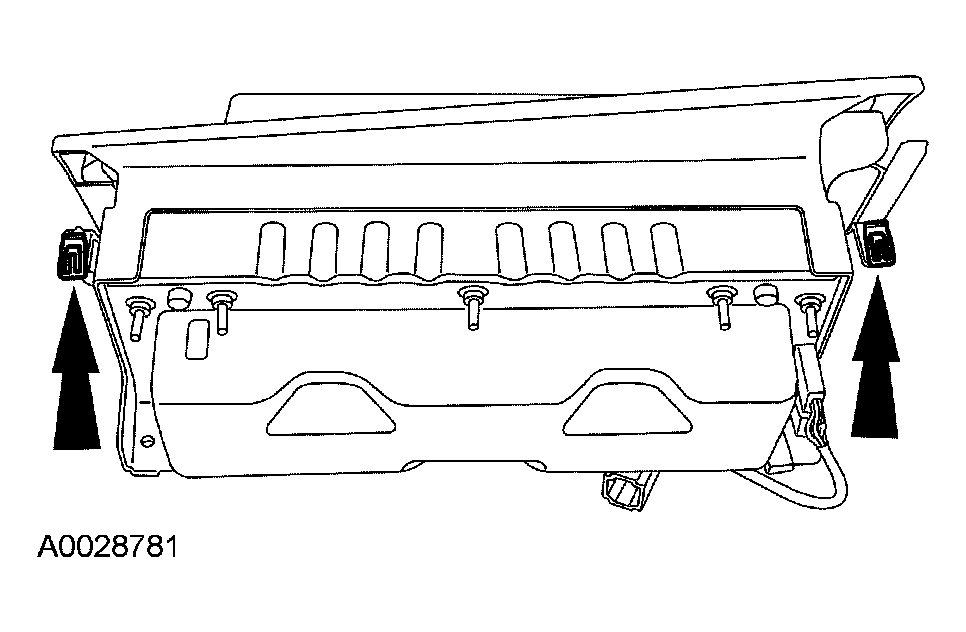

Fig 1: Locating J-Clips On Back Of Passenger Air Bag Module
Courtesy of FORD MOTOR CO.
Make sure the retaining clips on the back of the passenger air bag module are fully seated onto the ears.

Fig 2: Inspecting Retaining Clips On Back Of Passenger Air Bag Module
Courtesy of FORD MOTOR CO.

CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment doors.

Install the passenger air bag module into the instrument panel.
- Make sure the two retaining clips and two alignment pins are fully seated into the instrument panel. The passenger air bag module should have a flush fit and finish up against the instrument panel.
Through the glove compartment opening, install the passenger air bag module bolts.

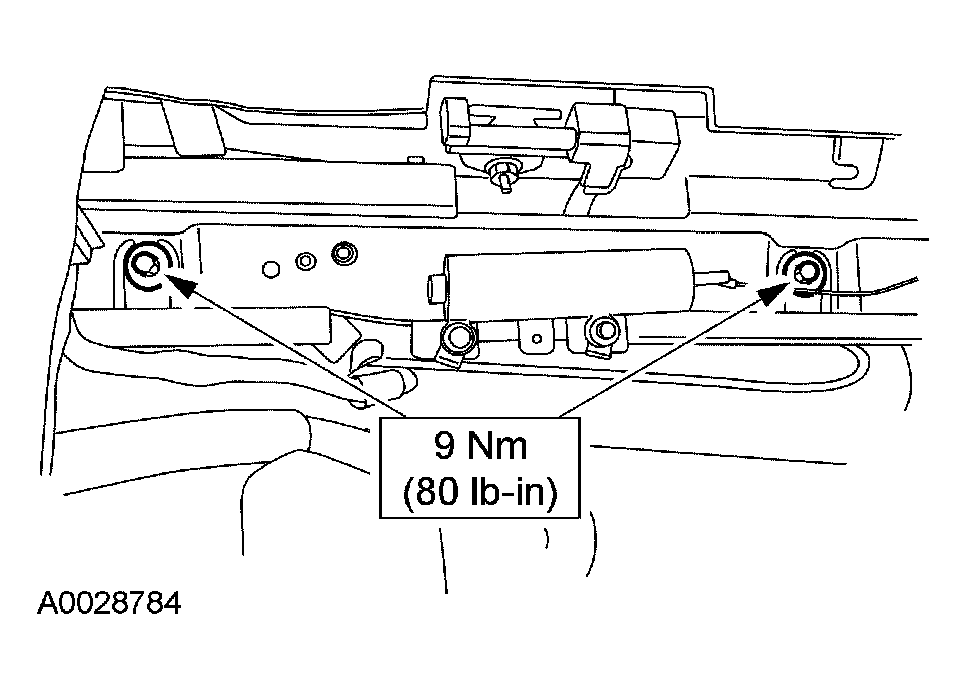

Fig 3: Installing Passenger Air Bag Module Bolts - With Torque Specification
Courtesy of FORD MOTOR CO.
Connect the passenger air bag module electrical connector.

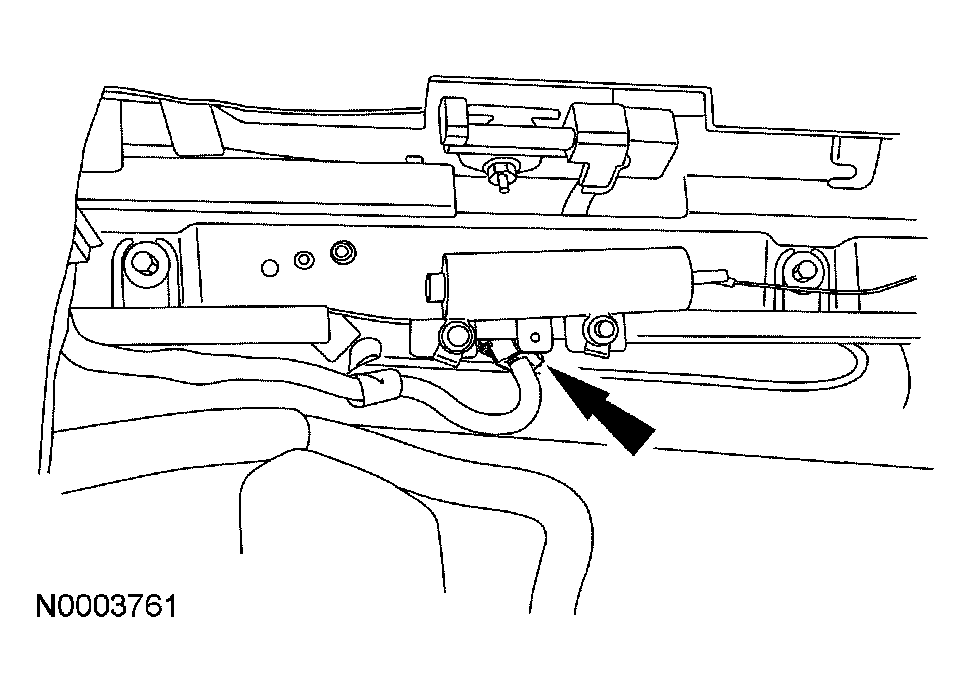

Fig 4: Connecting Passenger Air Bag Module Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the glove compartment isolator. Close the glove compartment.
Position the instrument cluster finish panel and seat the RH side retainers.

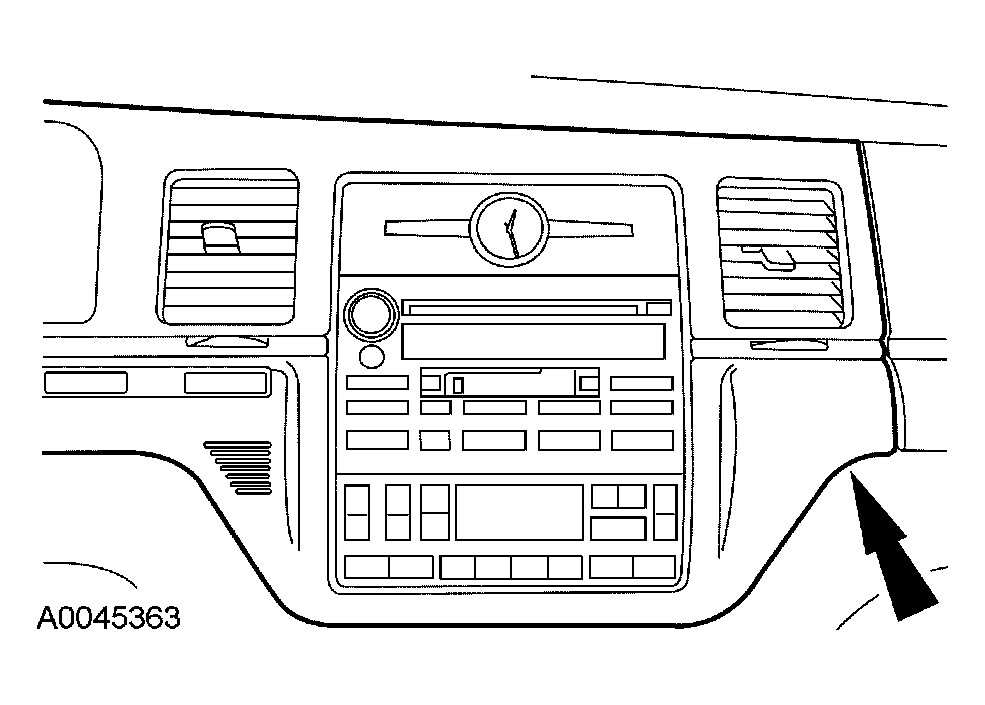

Fig 5: Positioning Instrument Cluster Finish Panel And Seat RH Side Retainers
Courtesy of FORD MOTOR CO.
Seat the retainers on the instrument cluster finish panel LH side.

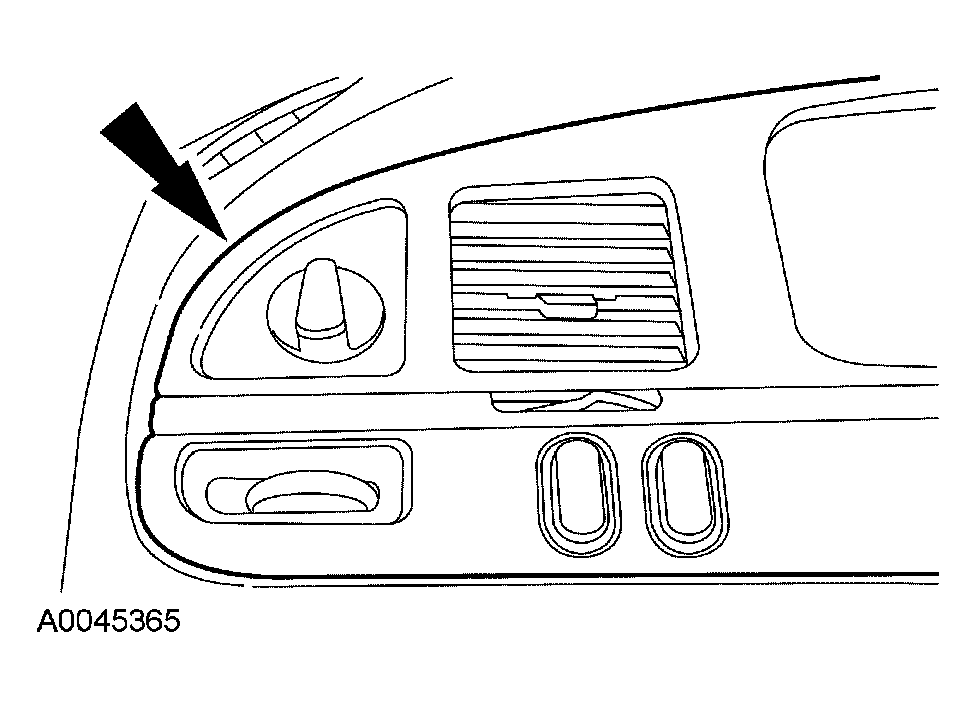

Fig 6: Seating Retainers On Instrument Cluster Finish Panel LH Side
Courtesy of FORD MOTOR CO.
Install the 2 instrument cluster finish panel screws.

Fig 7: Installing Instrument Cluster Finish Panel Screws
Courtesy of FORD MOTOR CO.
Position the shifter lever in the PARK position.
Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
