Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, see BATTERY, MOUNTING & CABLES .
Disengage the four retaining clips by first pulling down on the front of the overhead console and then the rear of the overhead console.

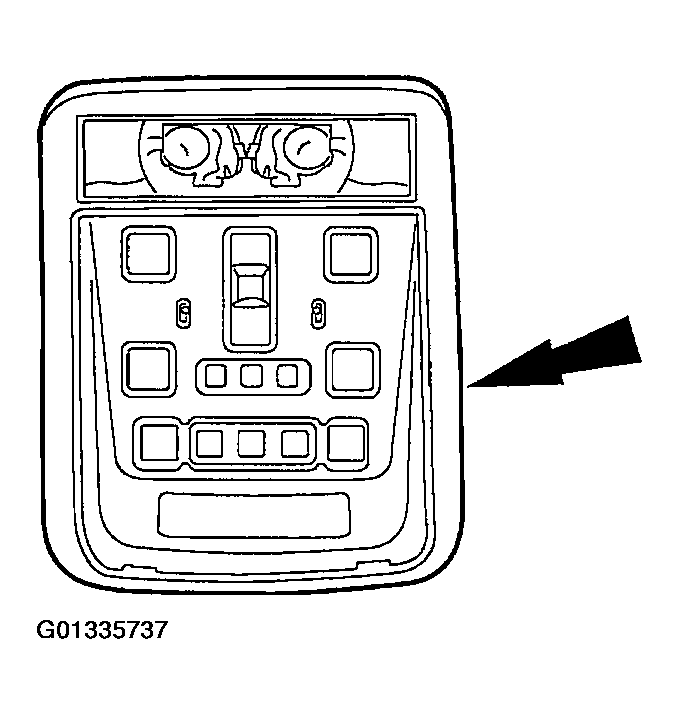

Fig 1: Removing Overhead Console
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.

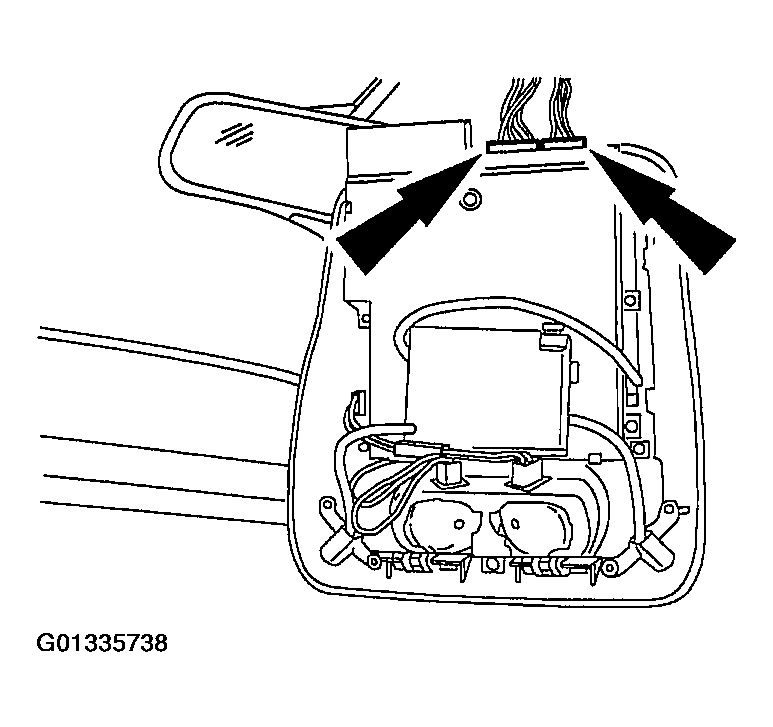

Fig 2: Locating Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the intrusion module from the message center.
1. Disconnect the electrical connector.
2. Remove the screws.
Fig 3: Removing Intrusion Module
Courtesy of FORD MOTOR CO.
Remove the four screws and the message center module.

Fig 4: Removing Message Center Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
