Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

NOTE: The telematics control module must be reconfigured upon replacement. See MODULE CONFIGURATION .

Disconnect the battery ground cable. For additional information, see BATTERY DISCONNECT .
Remove the rear seat backrest. For additional information, see REAR SEAT BACKREST .
Remove the pin-type retainers and remove the luggage compartment front cover.

Fig 1: Removing Luggage Compartment Front Cover
Courtesy of FORD MOTOR CO.
Remove the telematics control module.
- Disconnect the electrical connectors.
- Remove the 3 screws.

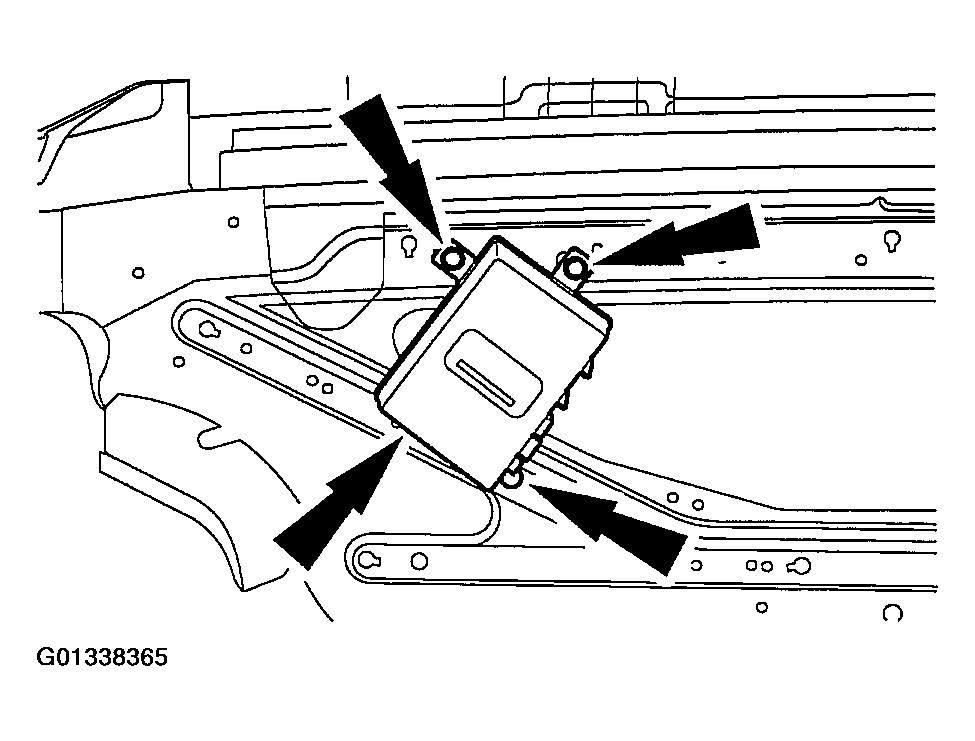

Fig 2: Removing Telematics Control Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
