Pinpoint Test B: Navigation System Will Not Switch On

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

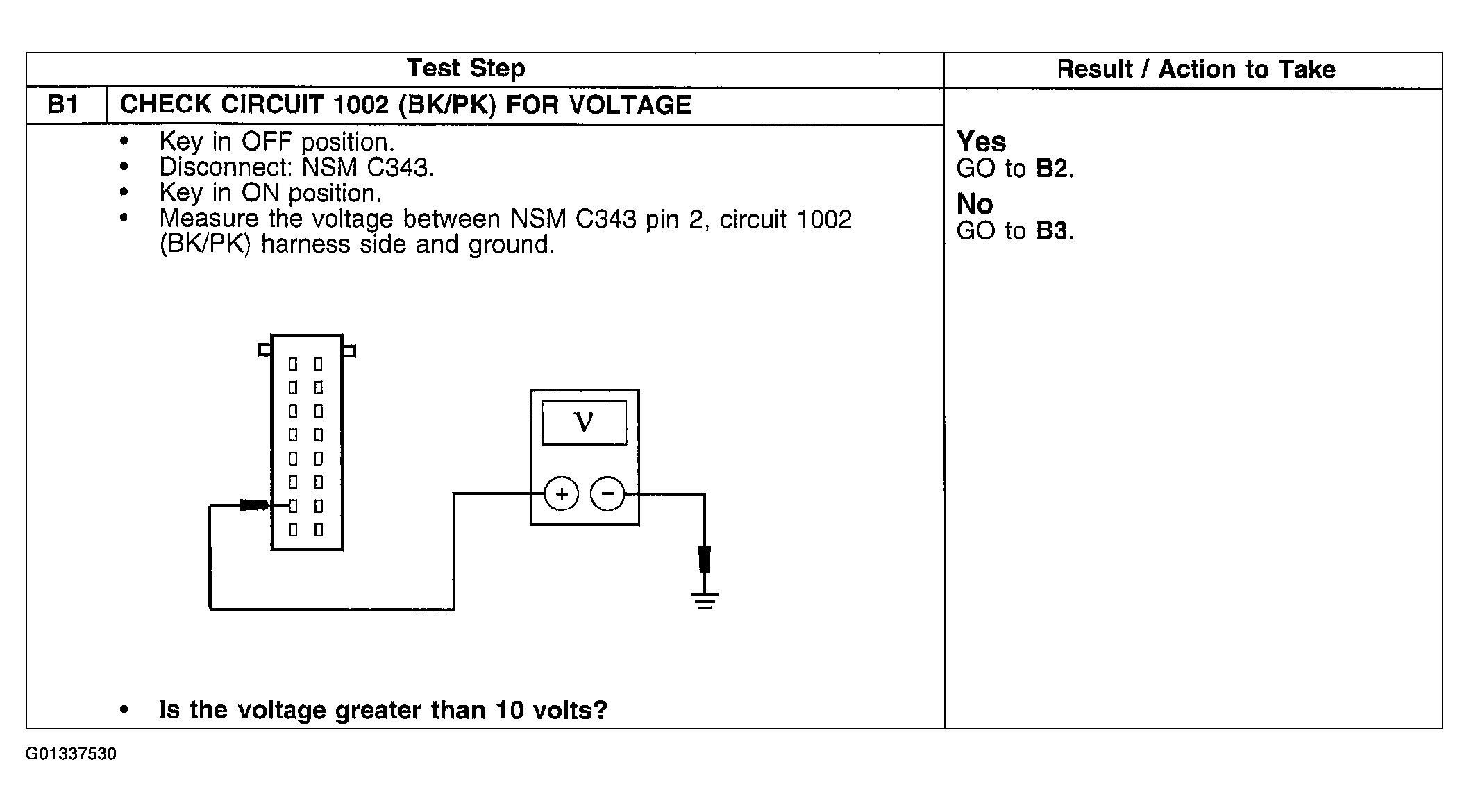

Fig 1: Pinpoint Test B (Step B1)

Courtesy of FORD MOTOR CO.

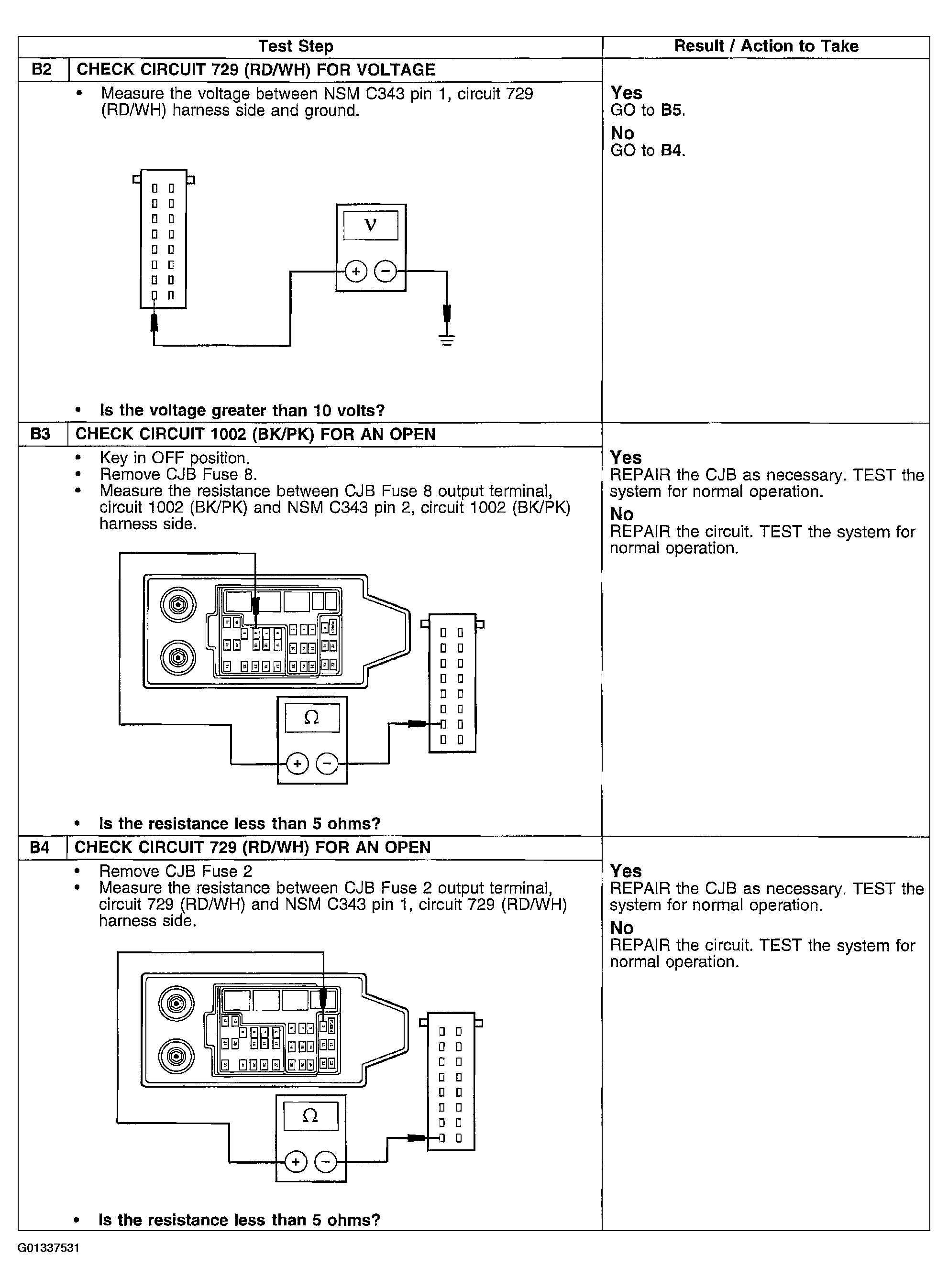

Fig 2: Pinpoint Test B (Step B2-B4)

Courtesy of FORD MOTOR CO.

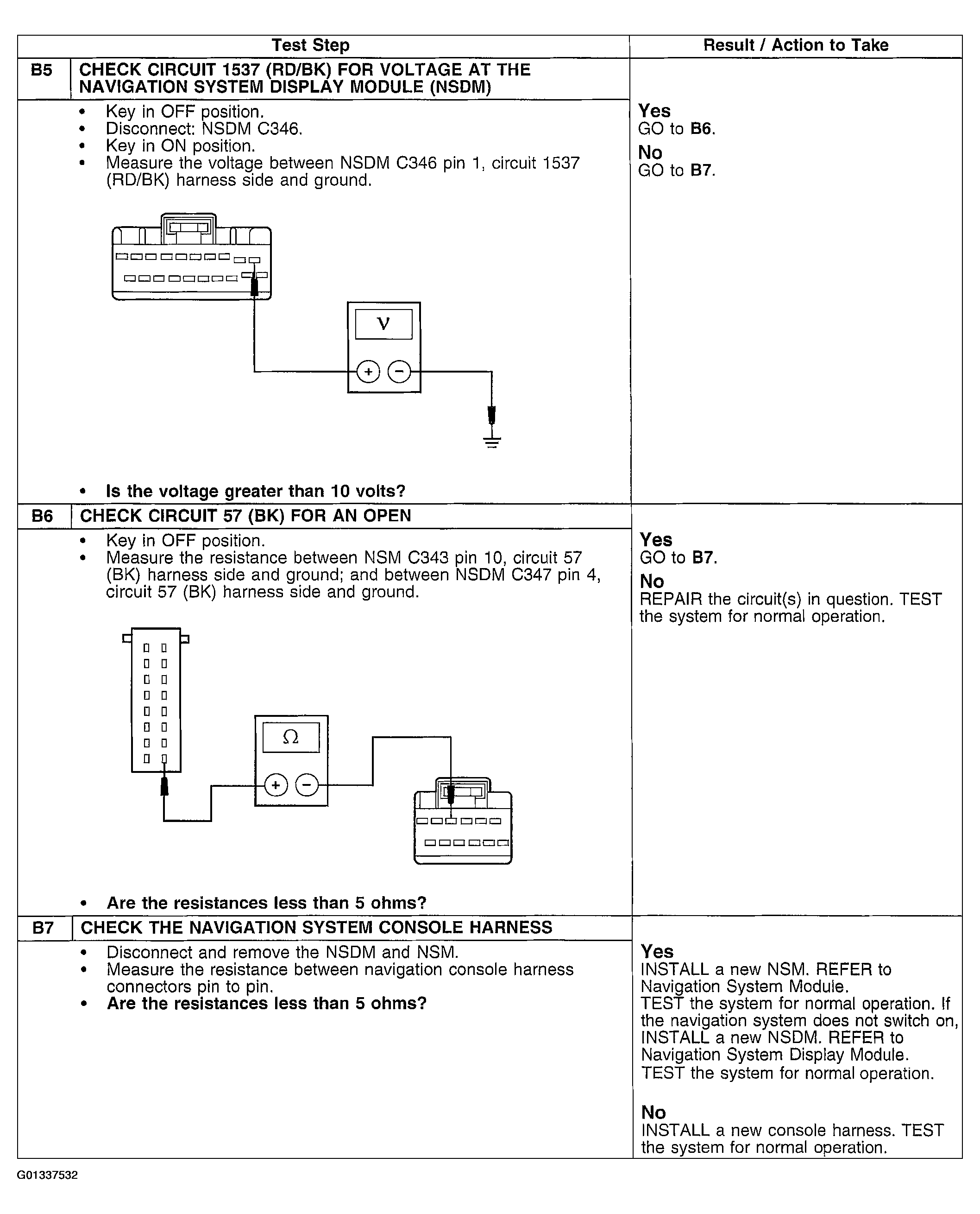

Fig 3: Pinpoint Test B (Steps B5-B7)

Courtesy of FORD MOTOR CO.
