Section 296 (Navigation System)
›
Diagnosis And Testing
›
Navigation System
›
Pinpoint Test D: Navigation System Does Not Operate Correctly - Display Does Not Dim
Pinpoint Test D: Navigation System Does Not Operate Correctly - Display Does Not Dim
WARNING:
This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

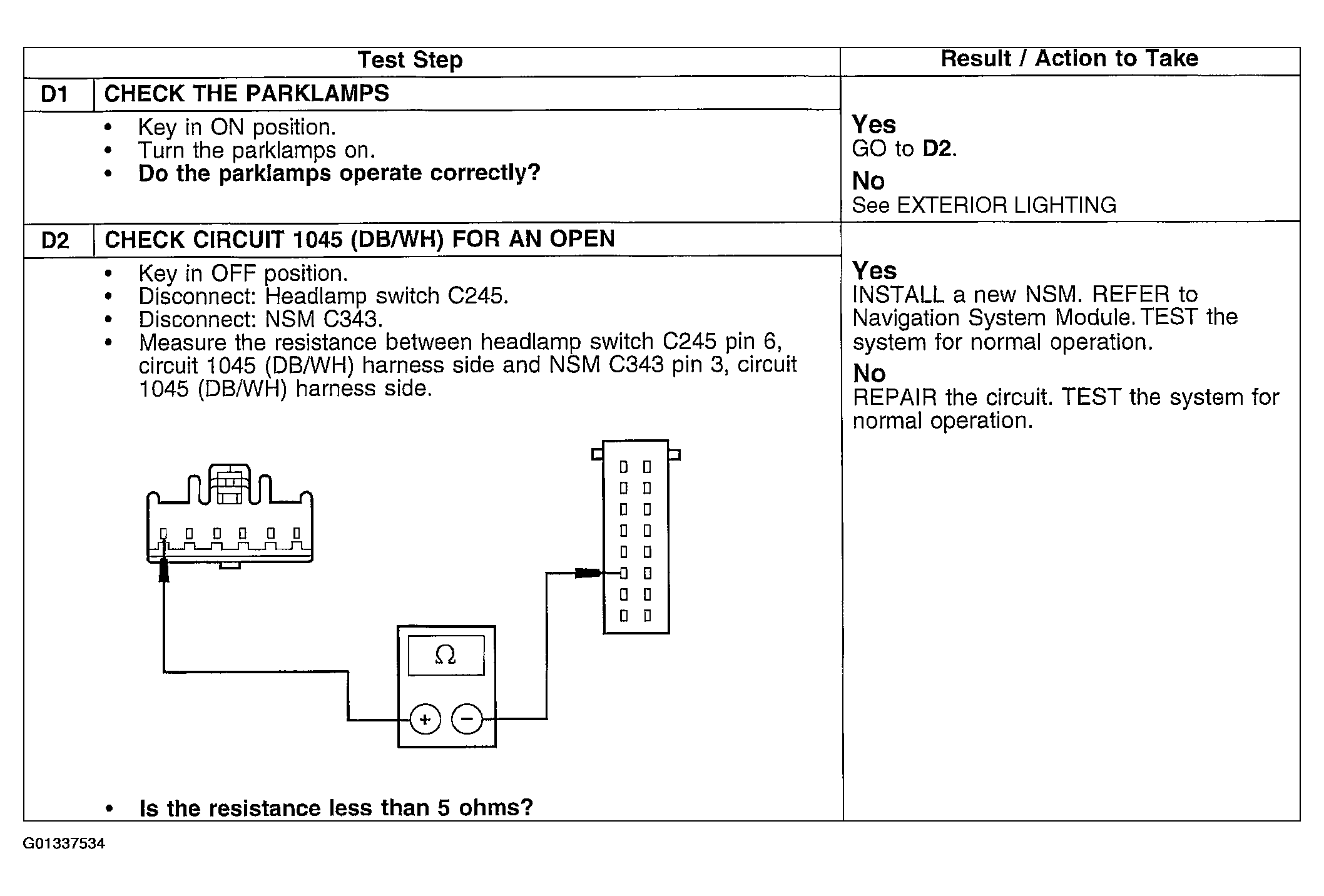

Fig 1: Pinpoint Test D
Courtesy of FORD MOTOR CO.
