Pinpoint Test G: Navigation System Does Not Operate Correctly - Navigation Switches Do Not Backlight

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

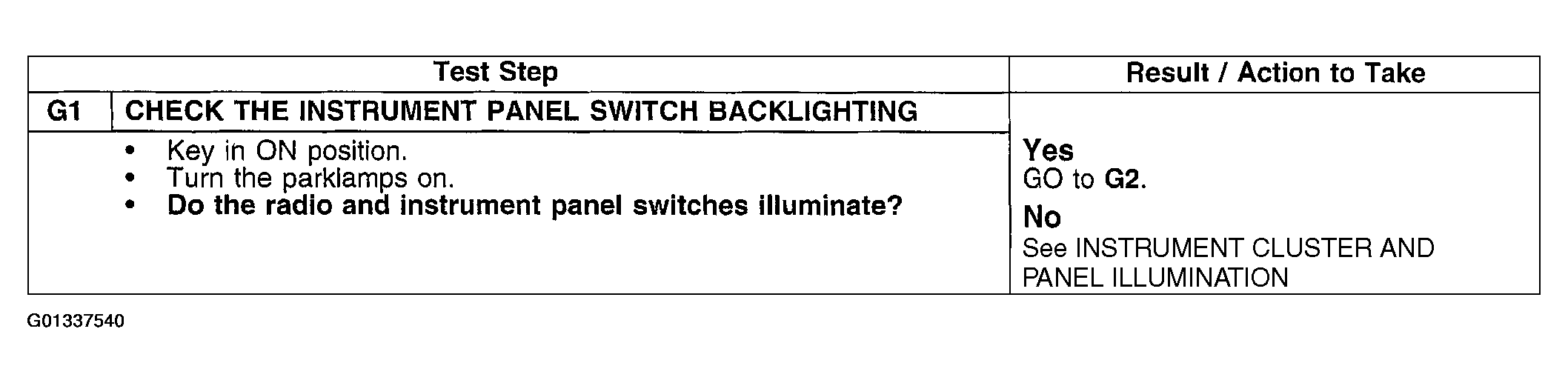

Fig 1: Pinpoint Test G (Step G1)
G01337540Courtesy of FORD MOTOR CO.

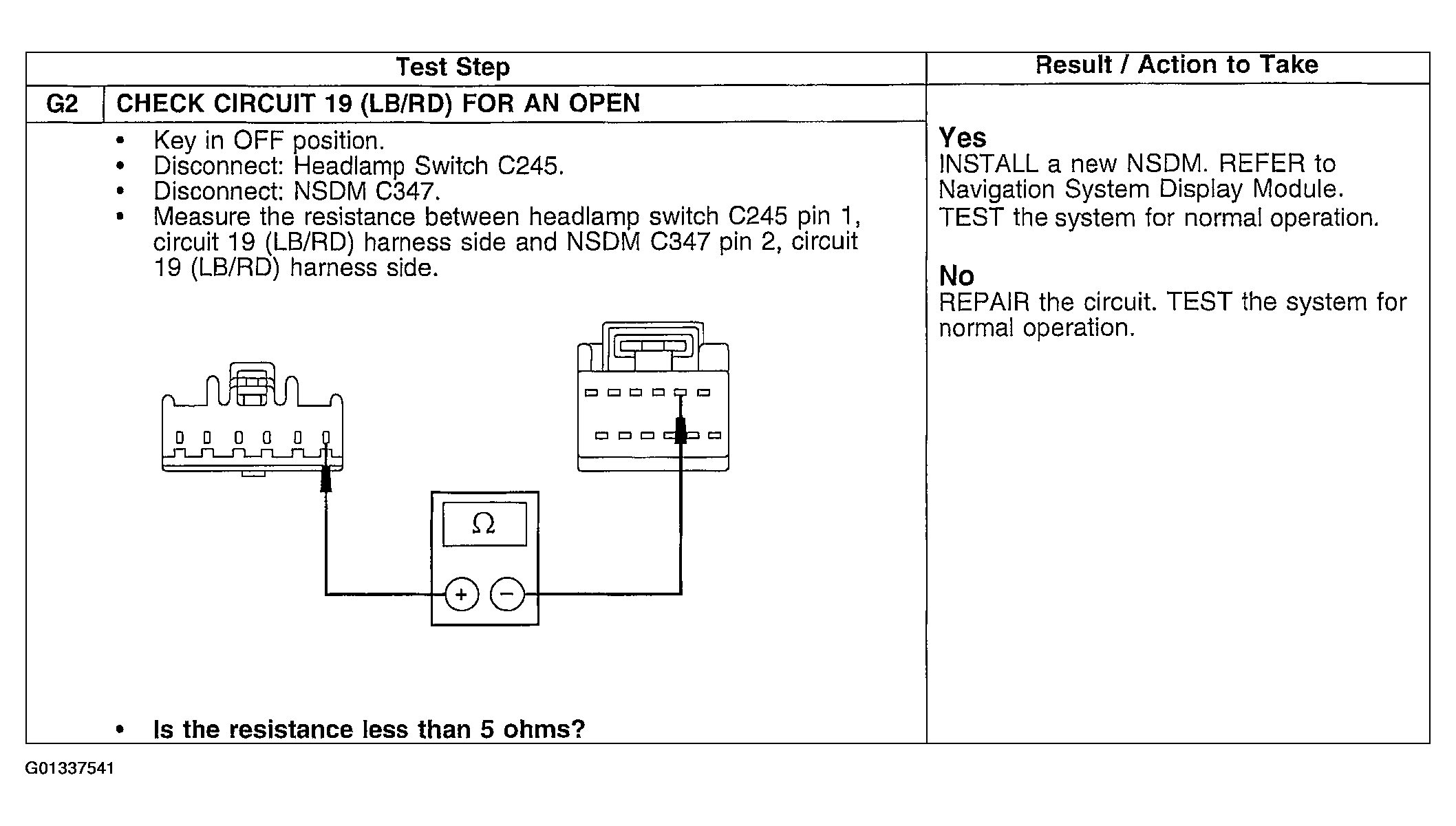

Fig 2: Pinpoint Test G (Step G2)
G01337541Courtesy of FORD MOTOR CO.
