Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, see BATTERY DISCONNECT .
Remove the center finish panel. See INSTRUMENT PANEL & CONSOLE .
Remove the clock assembly.
- Remove the screws.
- Disconnect the electrical connector.
Fig 1: Removing Clock Assembly
Courtesy of FORD MOTOR CO.
Position the audio unit aside.
- Remove the screws.

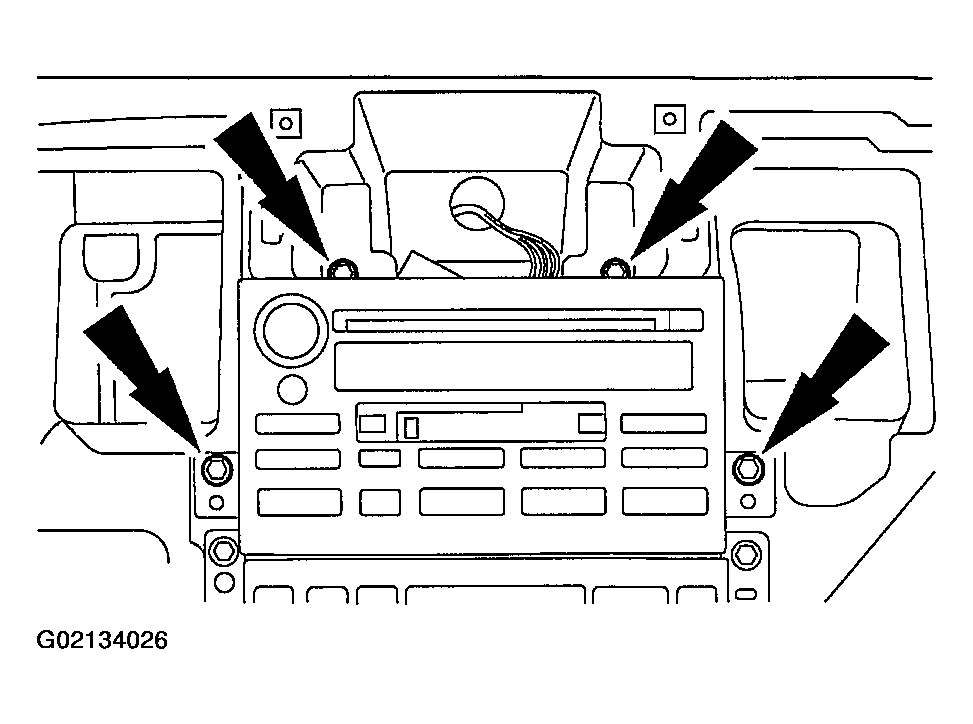

Fig 2: Removing Audio Unit Screws
Courtesy of FORD MOTOR CO.
Remove the audio unit.
- Disconnect the electrical connectors and the antenna lead-in cable.

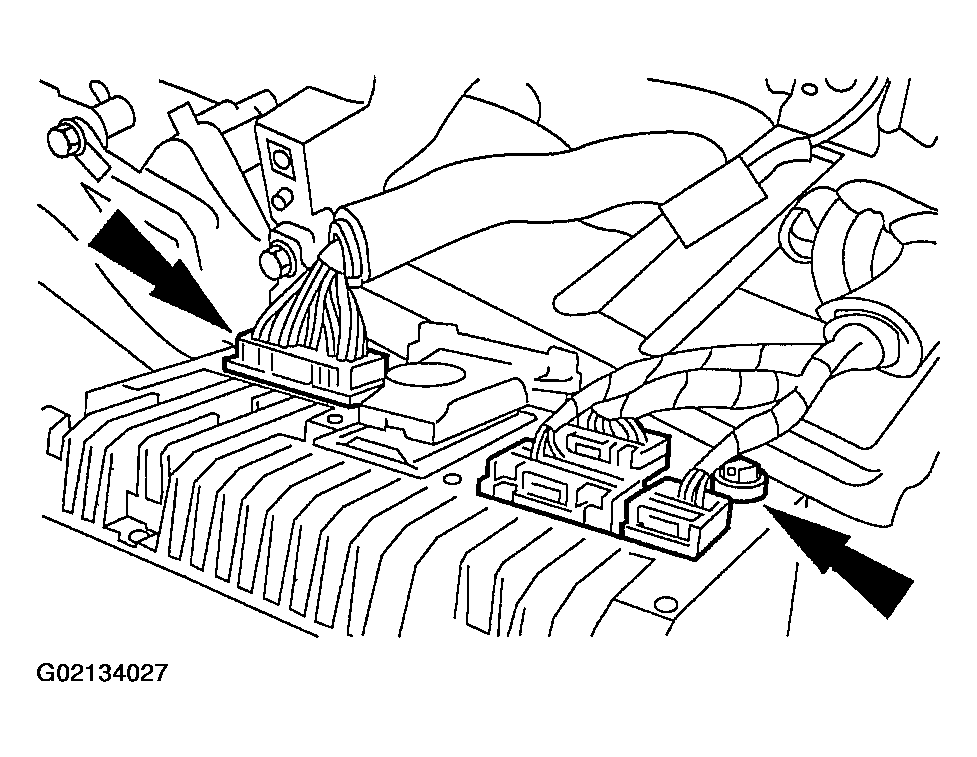

Fig 3: Disconnecting Audio Unit Electrical Connectors
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
