Driver Seat Module-C341g

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Driver Seat Module-C341g Connector Terminal

Courtesy of FORD MOTOR CO.

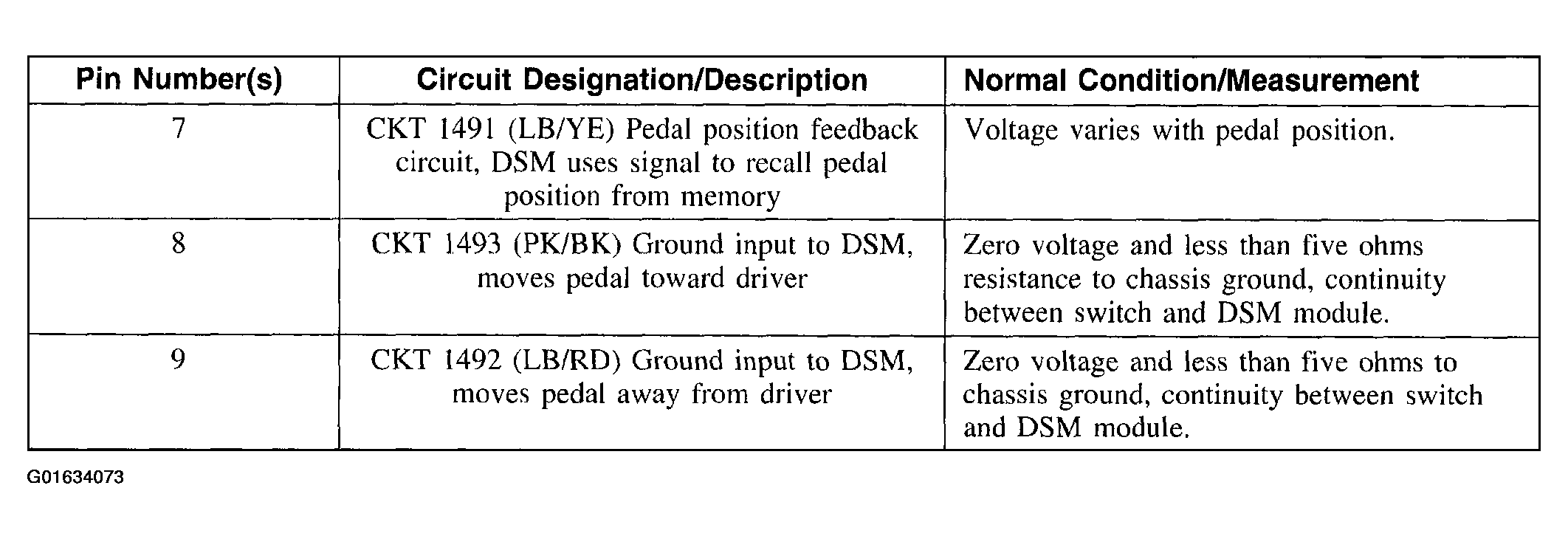

Fig 2: Driver Seat Module-C341g Reference And Terminal Readings

Courtesy of FORD MOTOR CO.
