WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

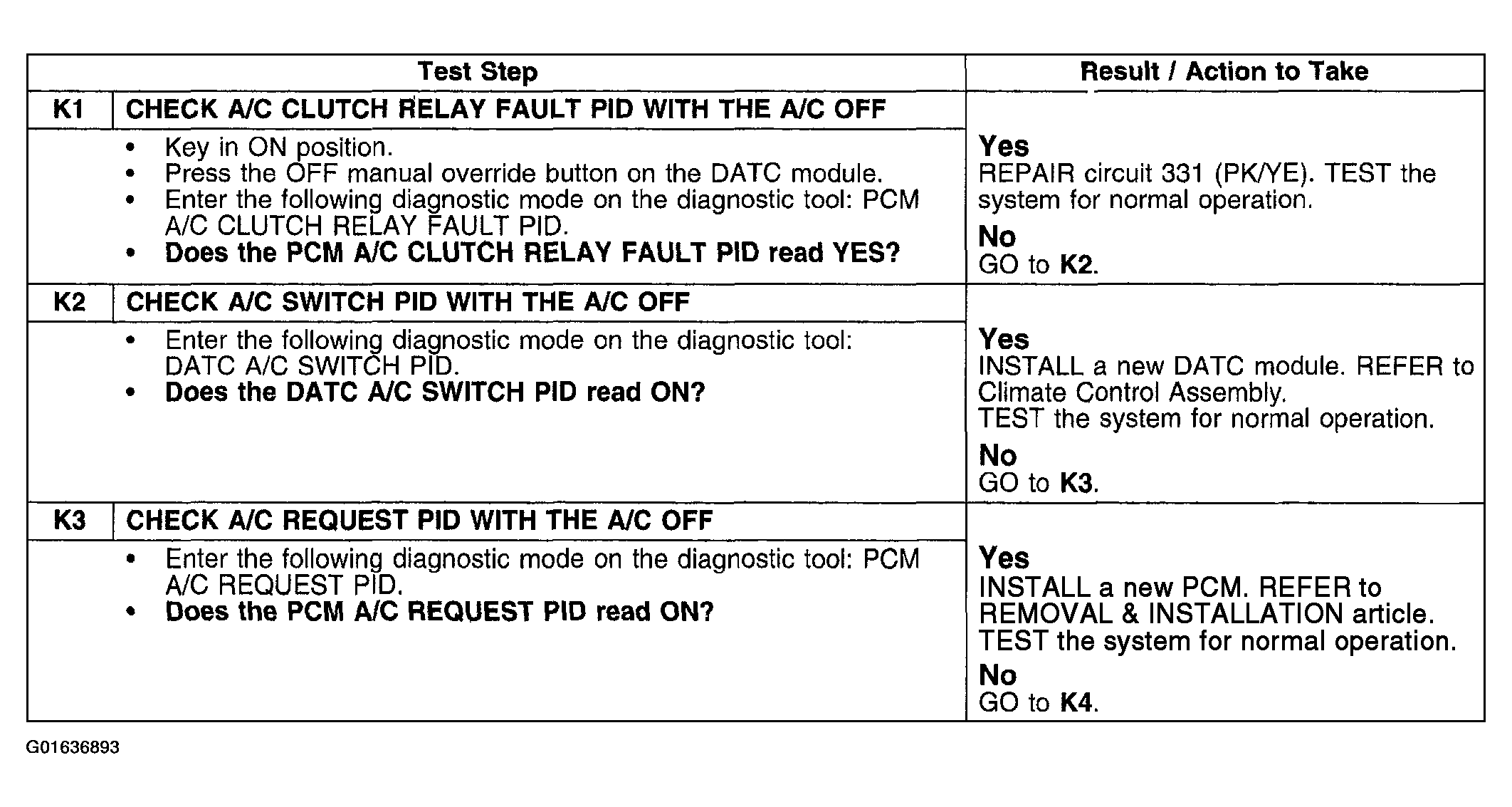

Fig 1: Pinpoint Test K: The A/C Is Always On (Steps K1-K3)
Courtesy of FORD MOTOR CO.

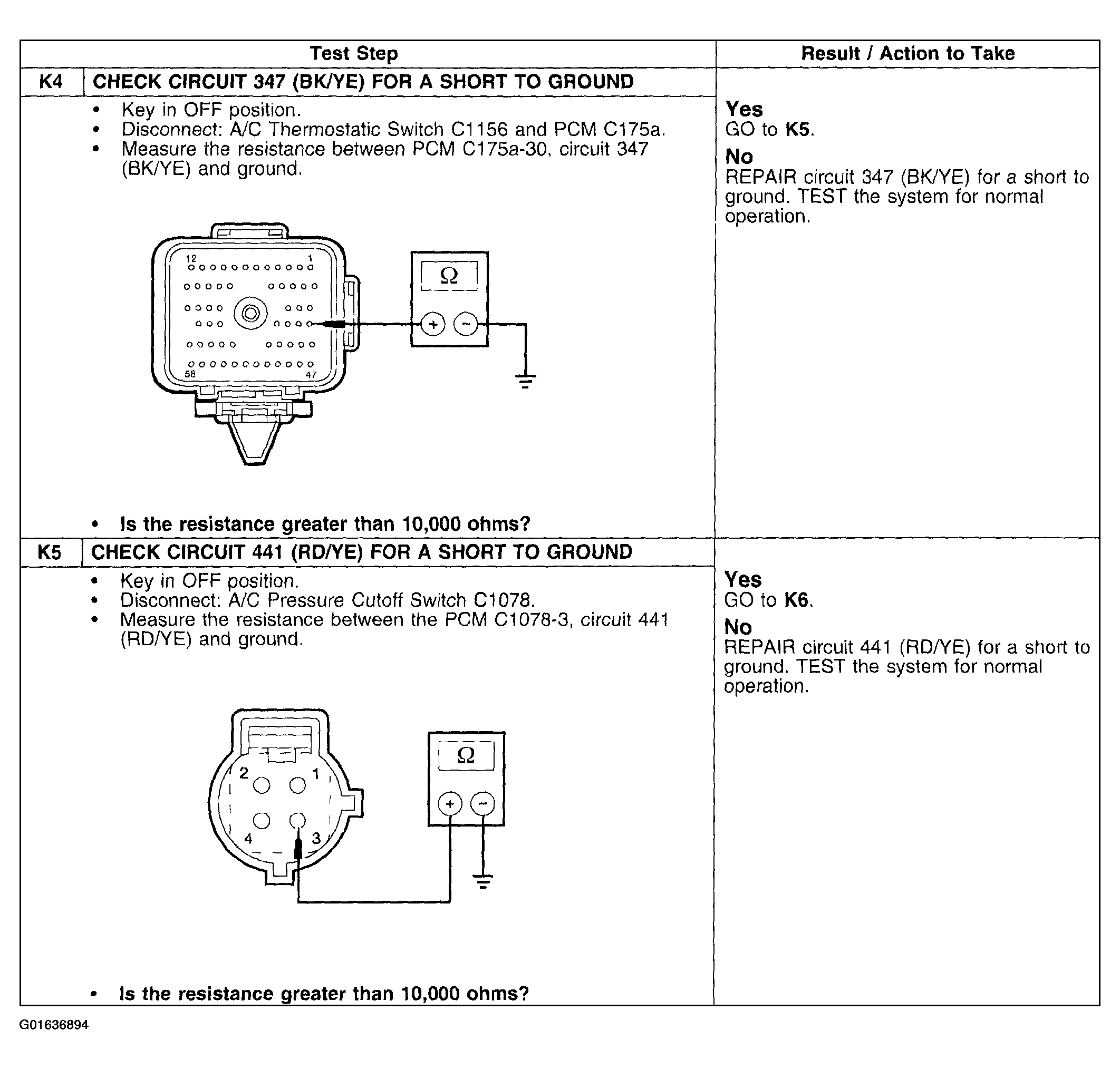

Fig 2: Pinpoint Test K: The A/C Is Always On (Steps K4 & K5)
Courtesy of FORD MOTOR CO.

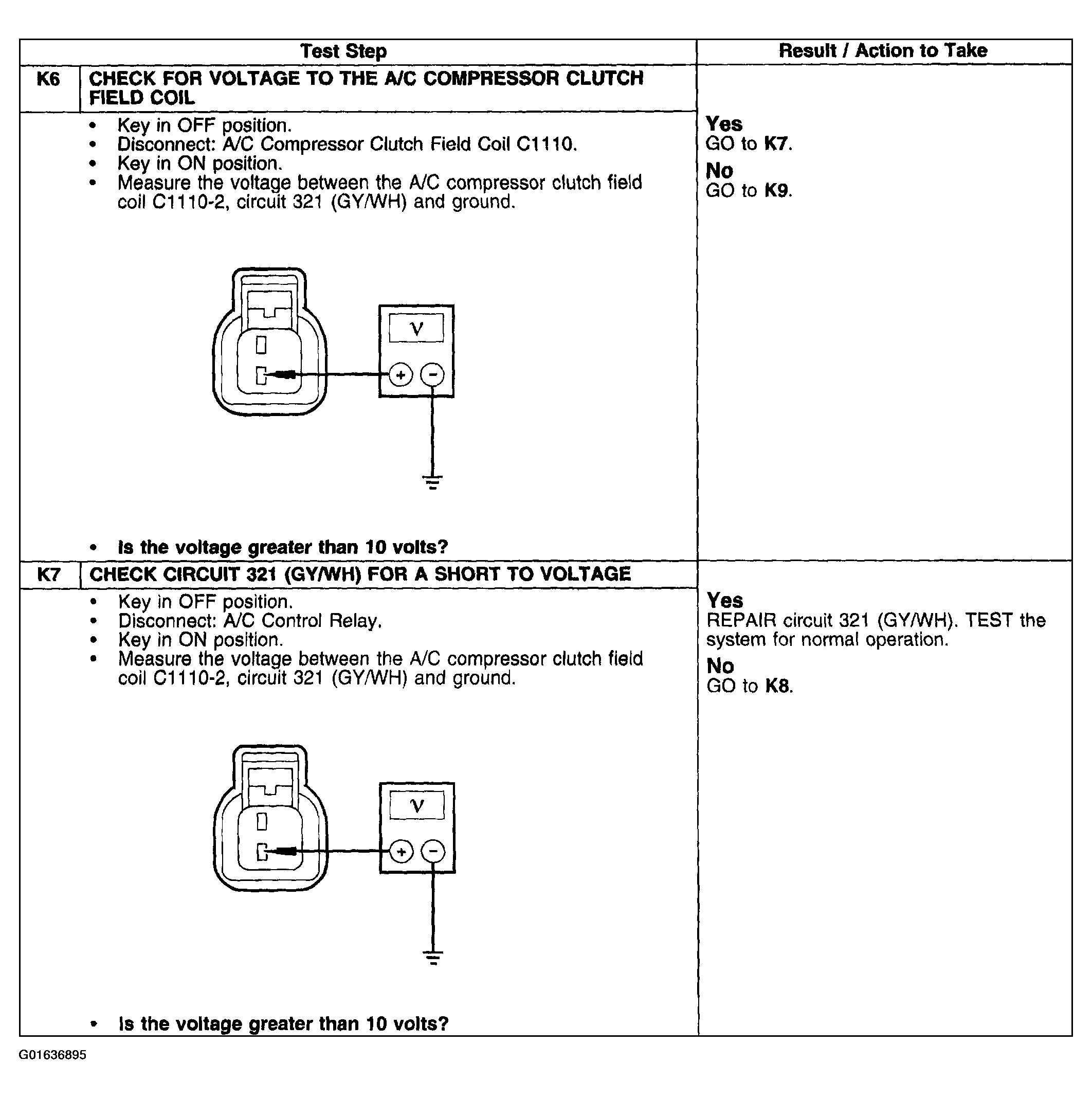

Fig 3: Pinpoint Test K: The A/C Is Always On (Steps K6 & K7)
Courtesy of FORD MOTOR CO.

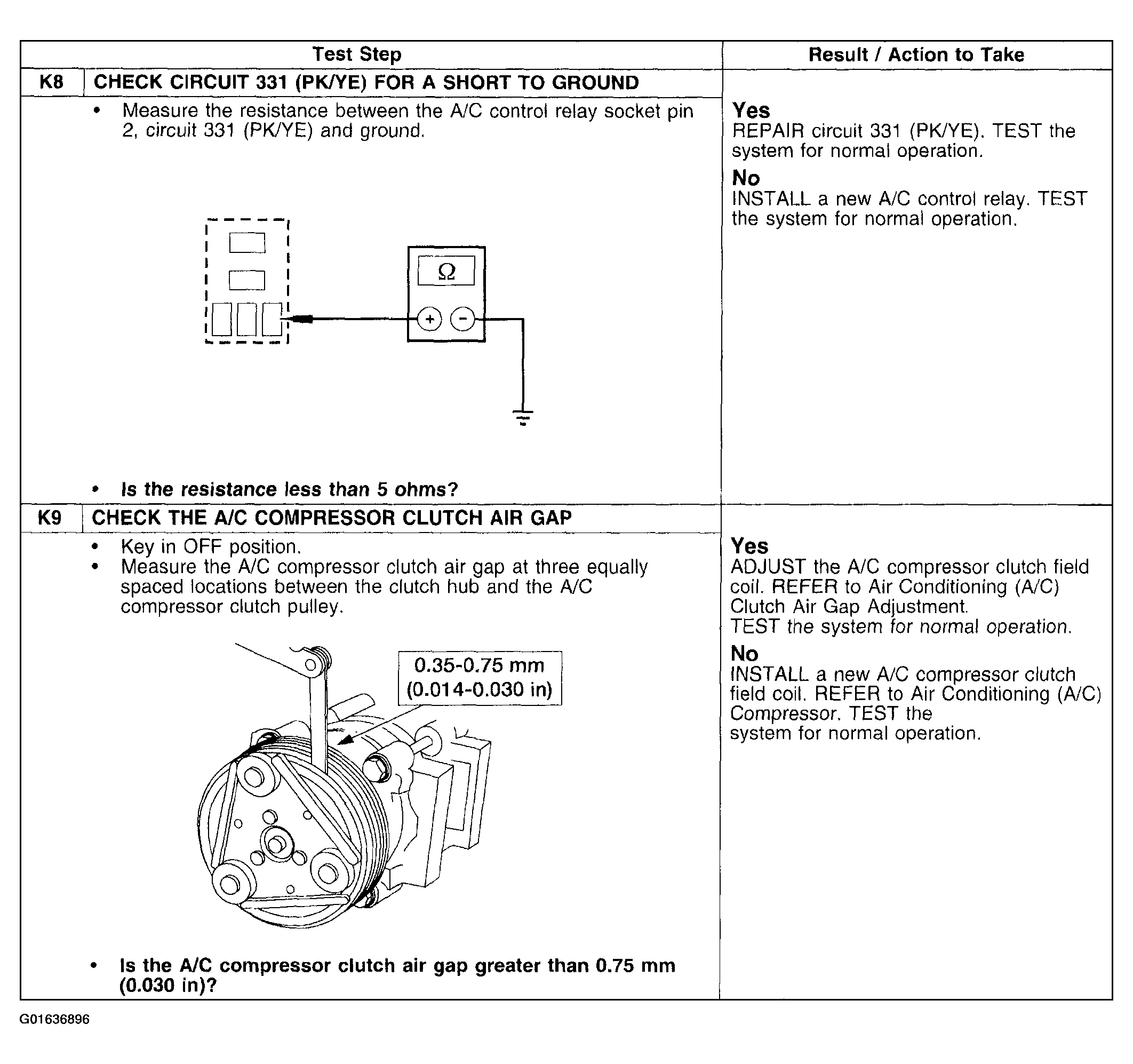

Fig 4: Pinpoint Test K: The A/C Is Always On (Steps K8 & K9)
