Air Distribution Ducts

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration. If removing individual components, only carry out the following steps.

Fig 1: Removing Individual Components Table
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

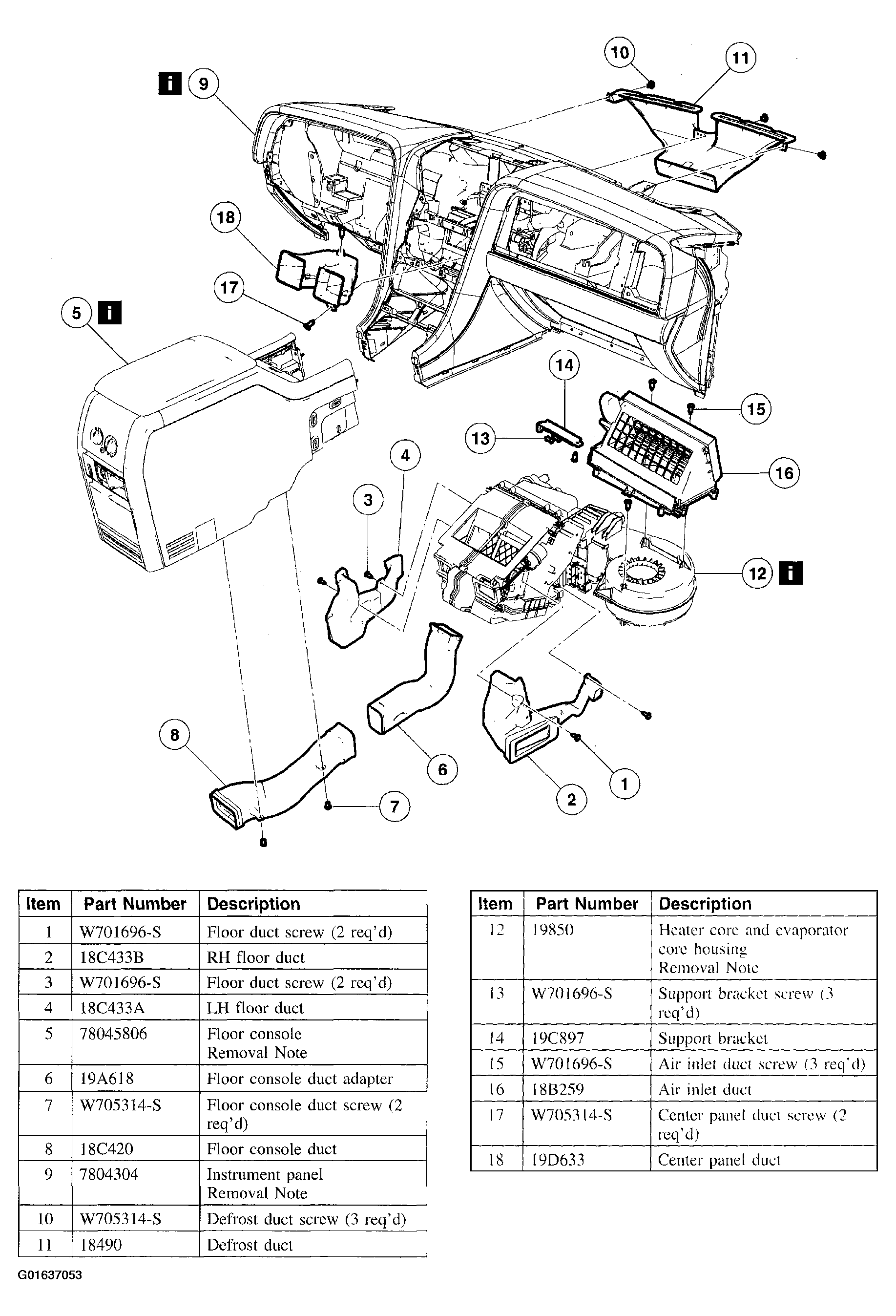

Fig 2: Removal Sequence Of Air Distribution Ducts
Courtesy of FORD MOTOR CO.

Item 5: Floor Console Removal Note

Remove the front floor console. For additional information, refer to BODY SYSTEM - INTERIOR .

Item 9: Instrument Panel Removal Note

Remove the instrument panel. For additional information, refer to BODY SYSTEM - INTERIOR .

Item 12: Heater Core and Evaporator Core Housing Removal Note

Remove the heater core and evaporator core housing. For additional information, refer to HEATER CORE AND EVAPORATOR CORE HOUSING, ASSEMBLY AND COMPONENTS .
