Door Speaker

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The removal and installation procedures apply to all original equipment door-mounted speakers.

Remove the door trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove in the order indicated in the following illustration.

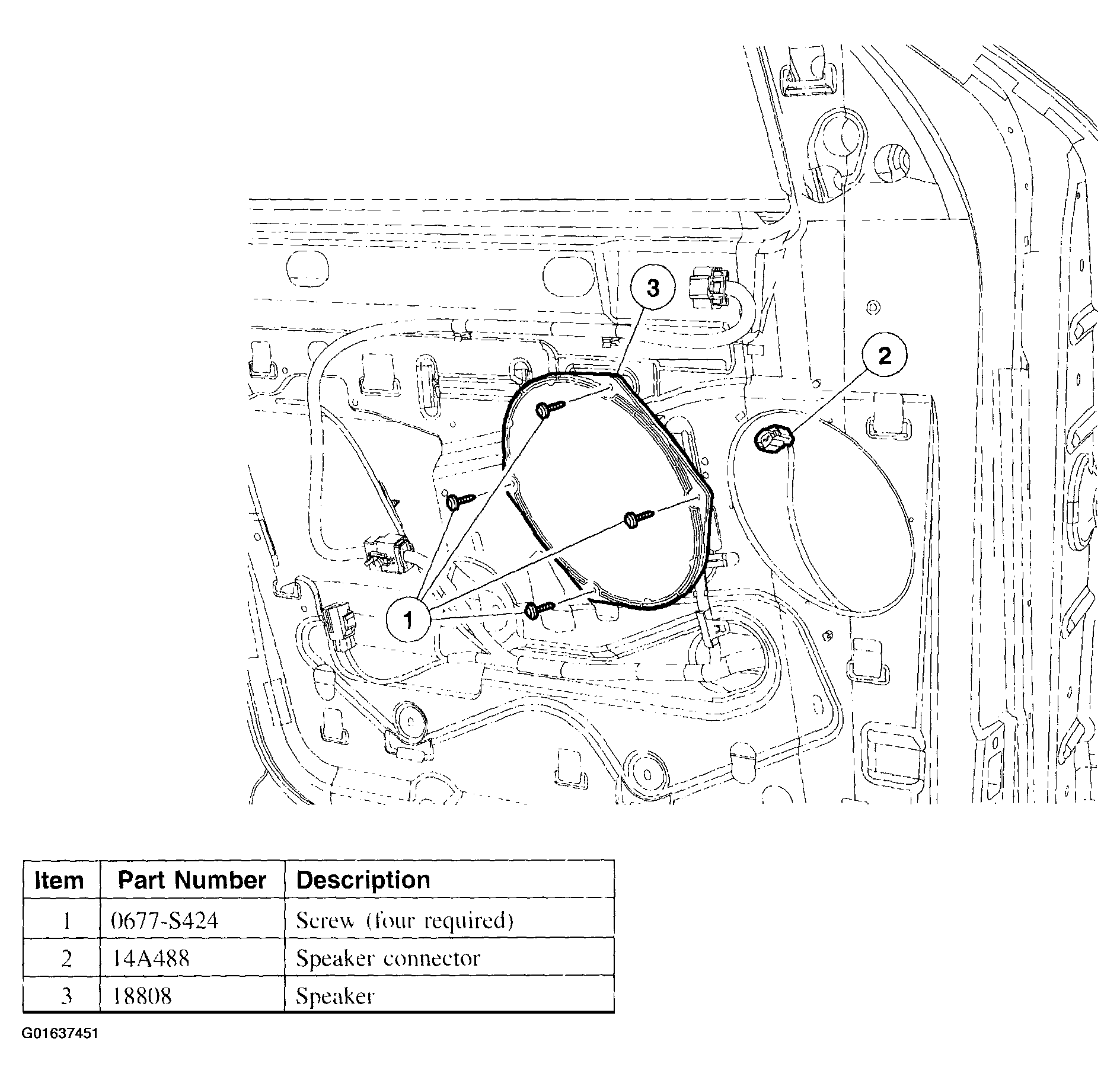

Fig 1: Door Speaker Removal Procedure
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
