Removal And Installation: Antenna

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The antenna grid is integral to the rear quarter window glass and can be repaired, but not installed separately. For removal and installation of the rear quarter window glass, refer to BODY SYSTEM - EXTERIOR .

Refer to BODY SYSTEM - INTERIOR to remove the following components: headliner, A-pillar trim, B-pillar trim, rear quarter trim panel, and the glove compartment.
Remove the audio unit. Refer to AUDIO UNIT .
Remove the components in the order indicated in the following illustration.

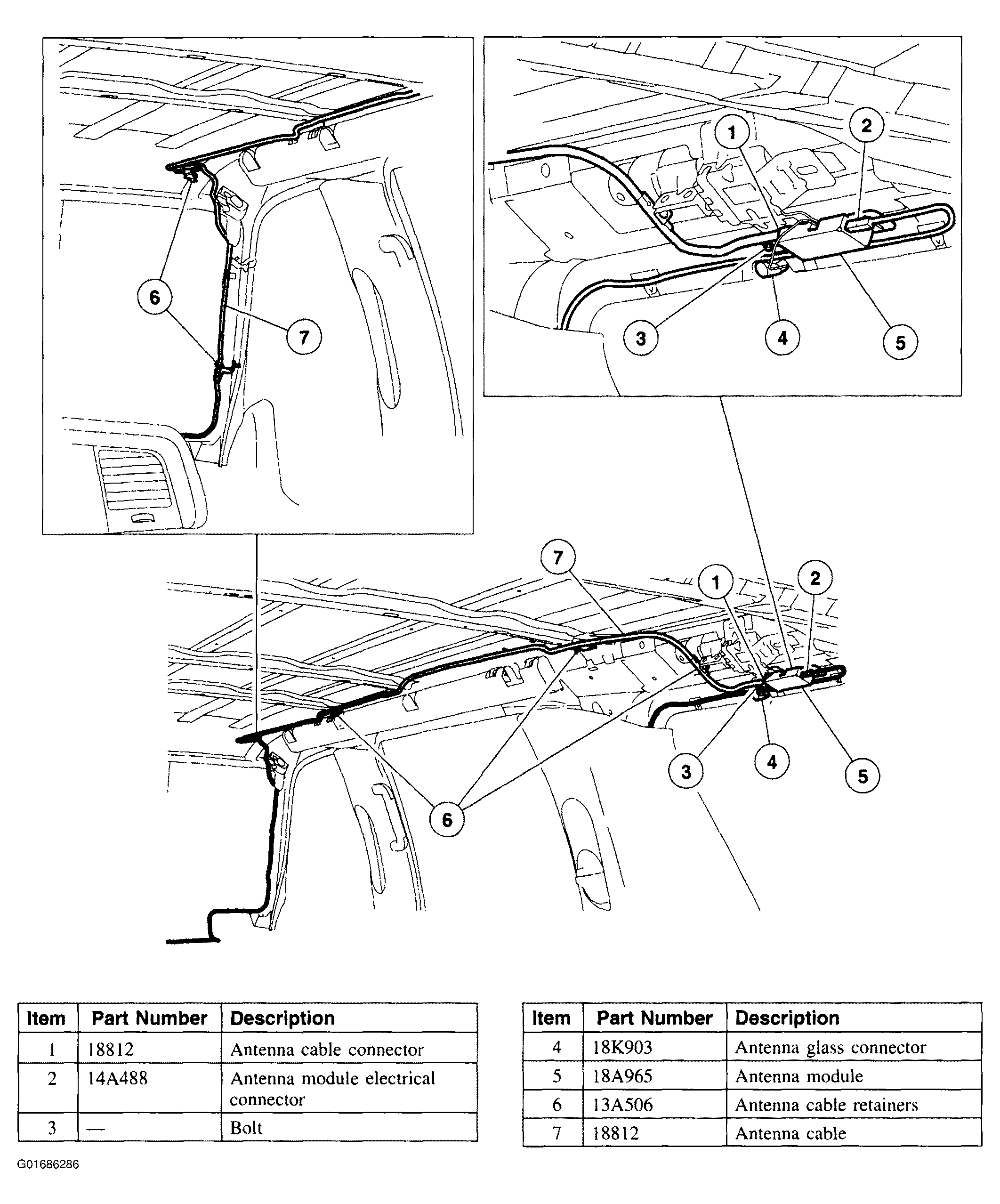

Fig 1: Antenna Removal Procedure (Steps 1-7)
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration.

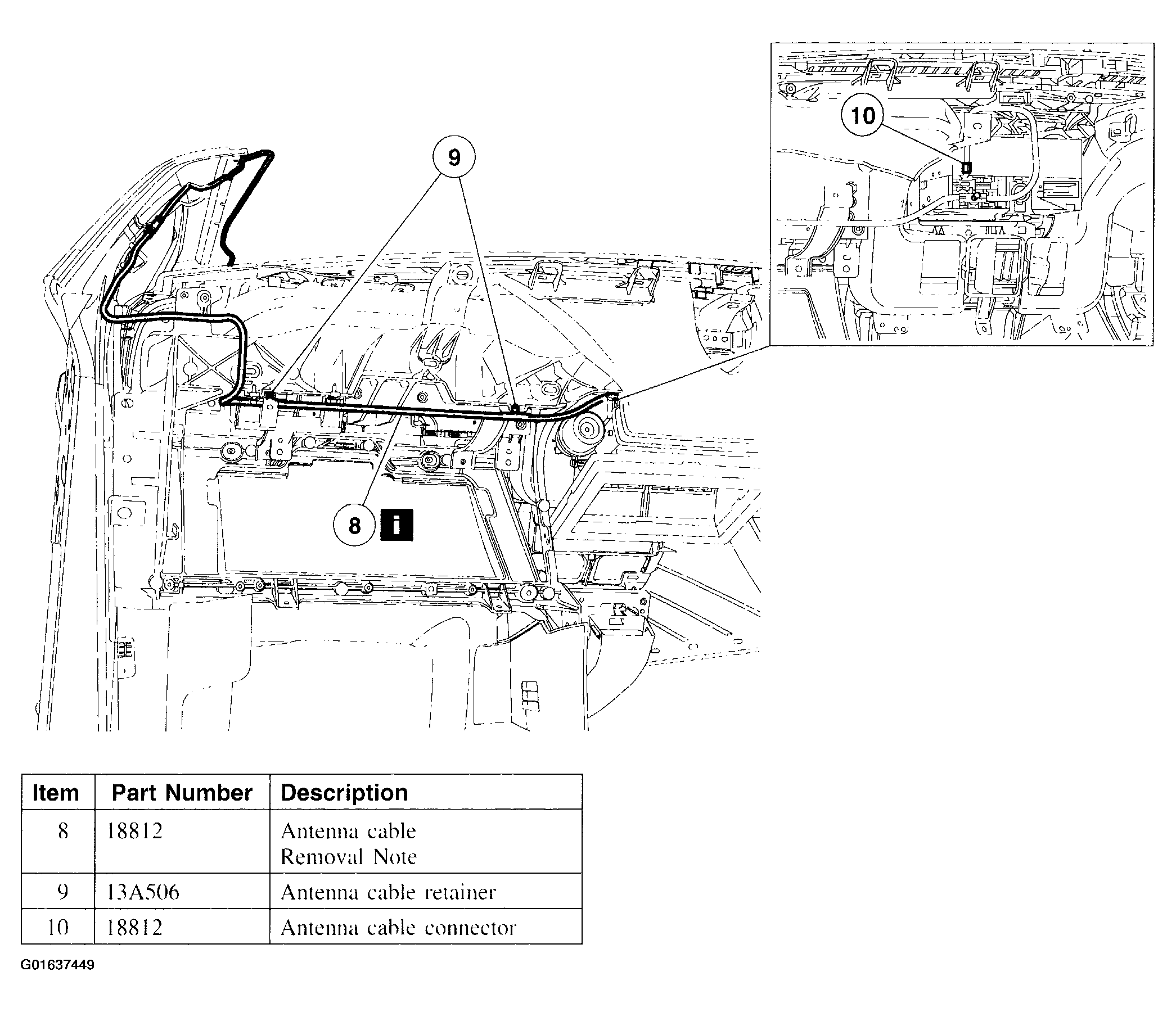

Fig 2: Antenna Removal Procedure (Steps 8-10)
Courtesy of FORD MOTOR CO.
To install reverse the removal procedure.

Item 8: Antenna Cable Removal Note

Remove the antenna cable by pulling it through the glove compartment opening.
