Section 358 (Module Communications Network)
›
Diagnosis And Testing
›
Vehicle Security Module
›
Symptom Chart
Symptom Chart
WARNING:
This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

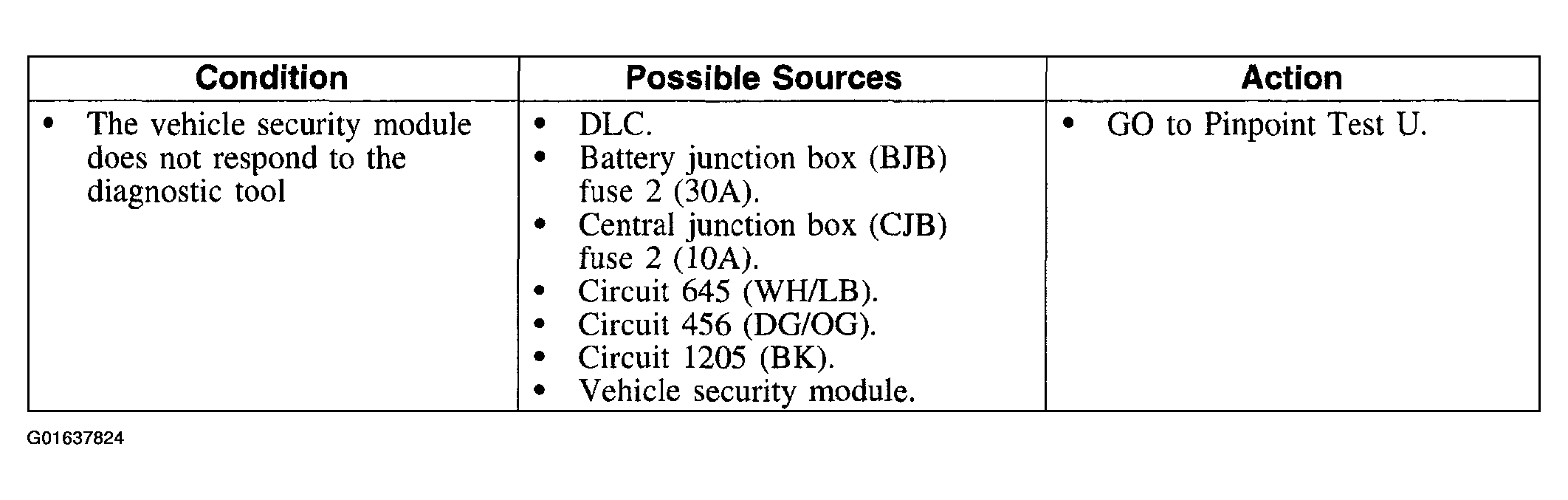

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
