WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

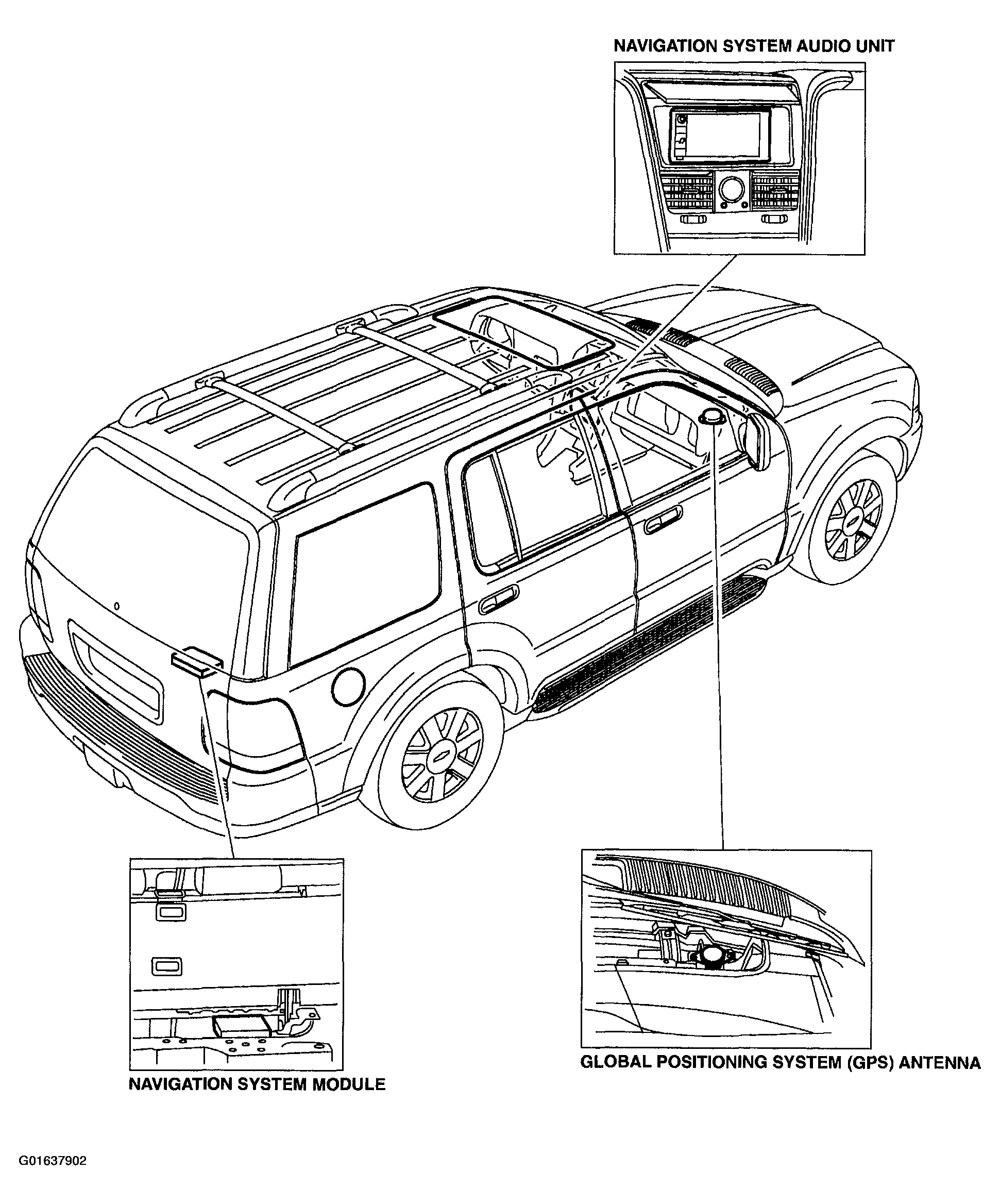

Fig 1: Electronic Features Component Location Index - Navigation System
Courtesy of FORD MOTOR CO.

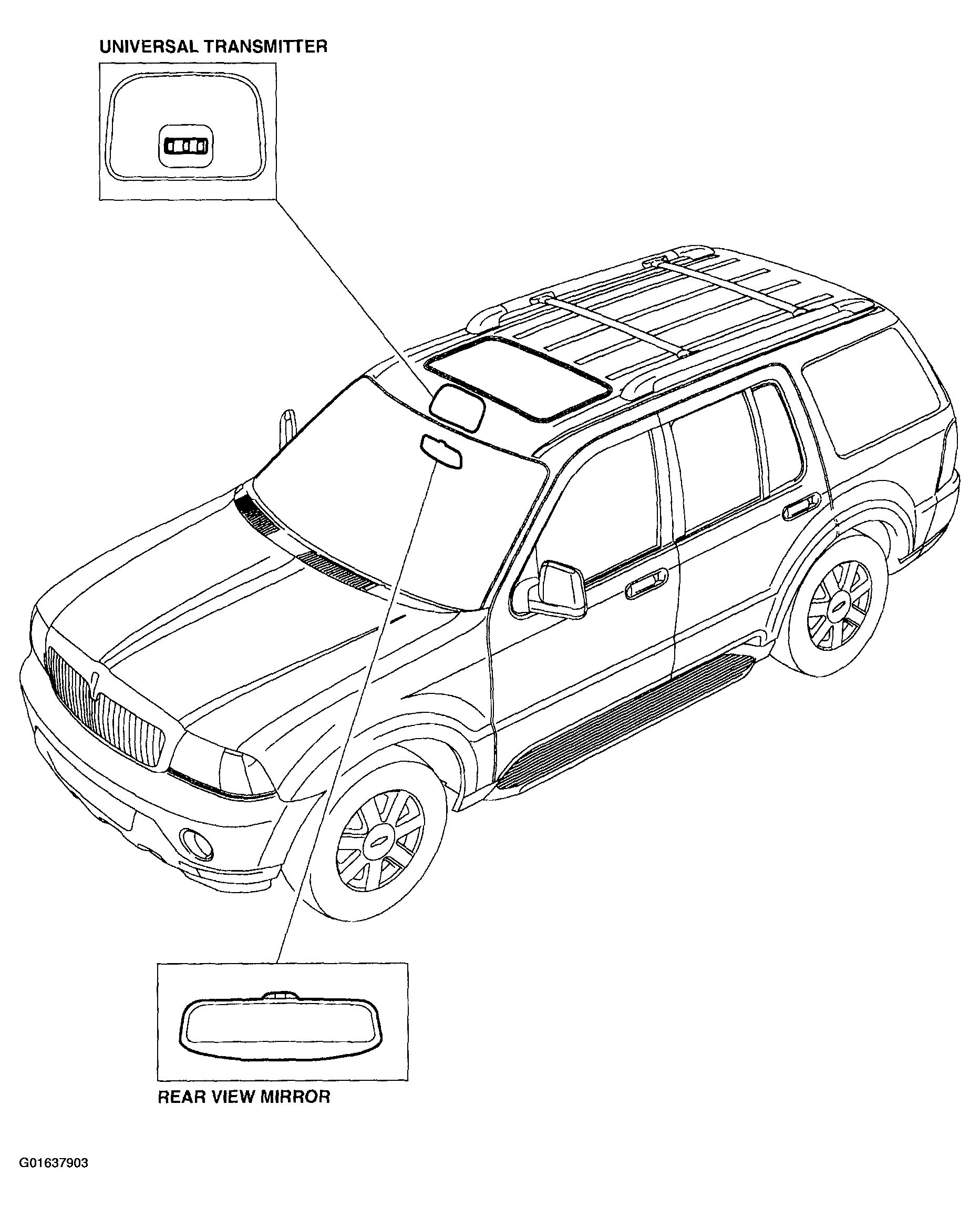

Fig 2: Electronic Features Component Location Index - Navigation System And Universal Transmitter
