Overhead Console

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order listed in the following illustration.
Install in the reverse order of removal.

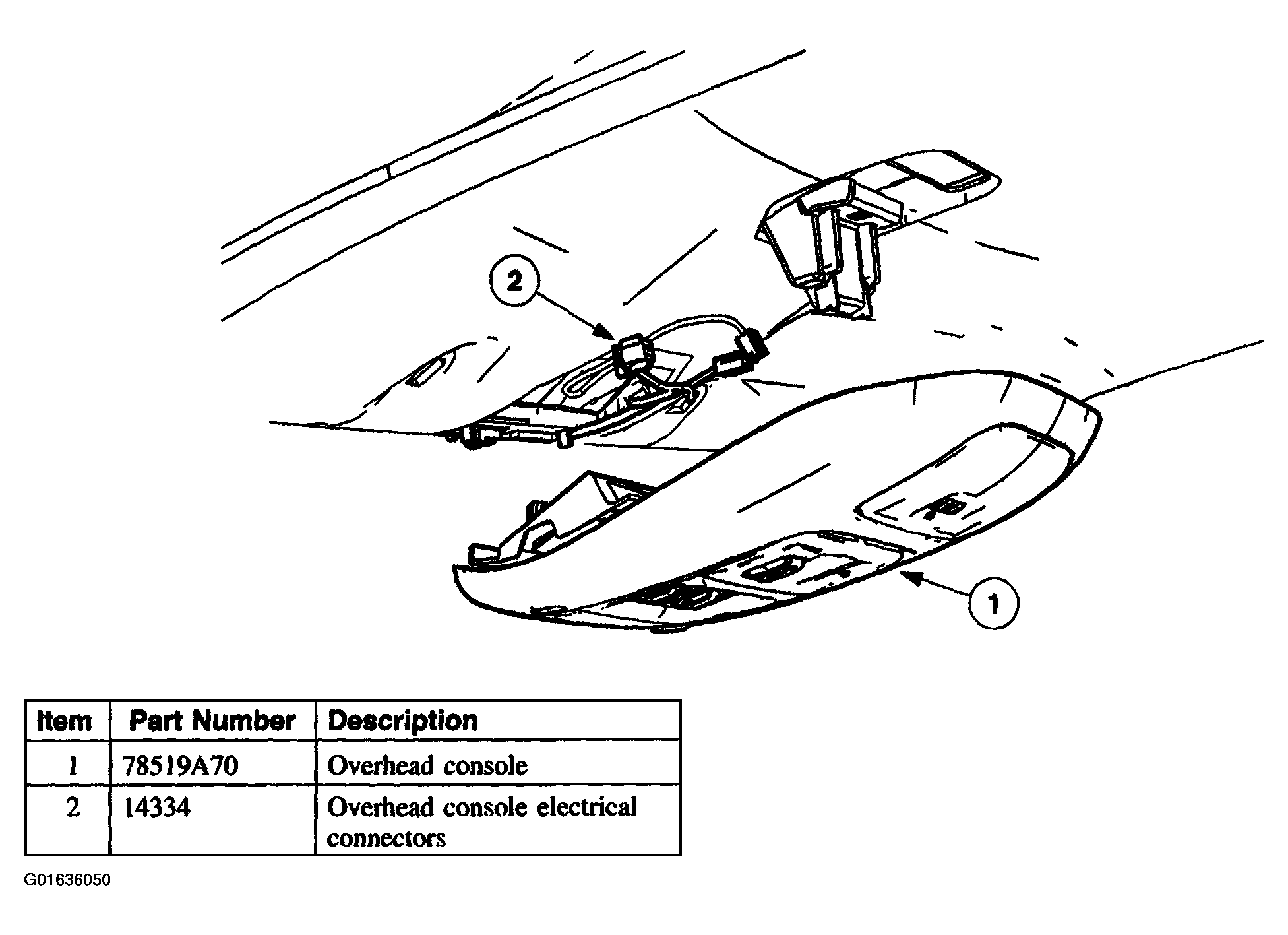

Fig 1: Overhead Console Removal Procedure
Courtesy of FORD MOTOR CO.
