Power Steering: Notes

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

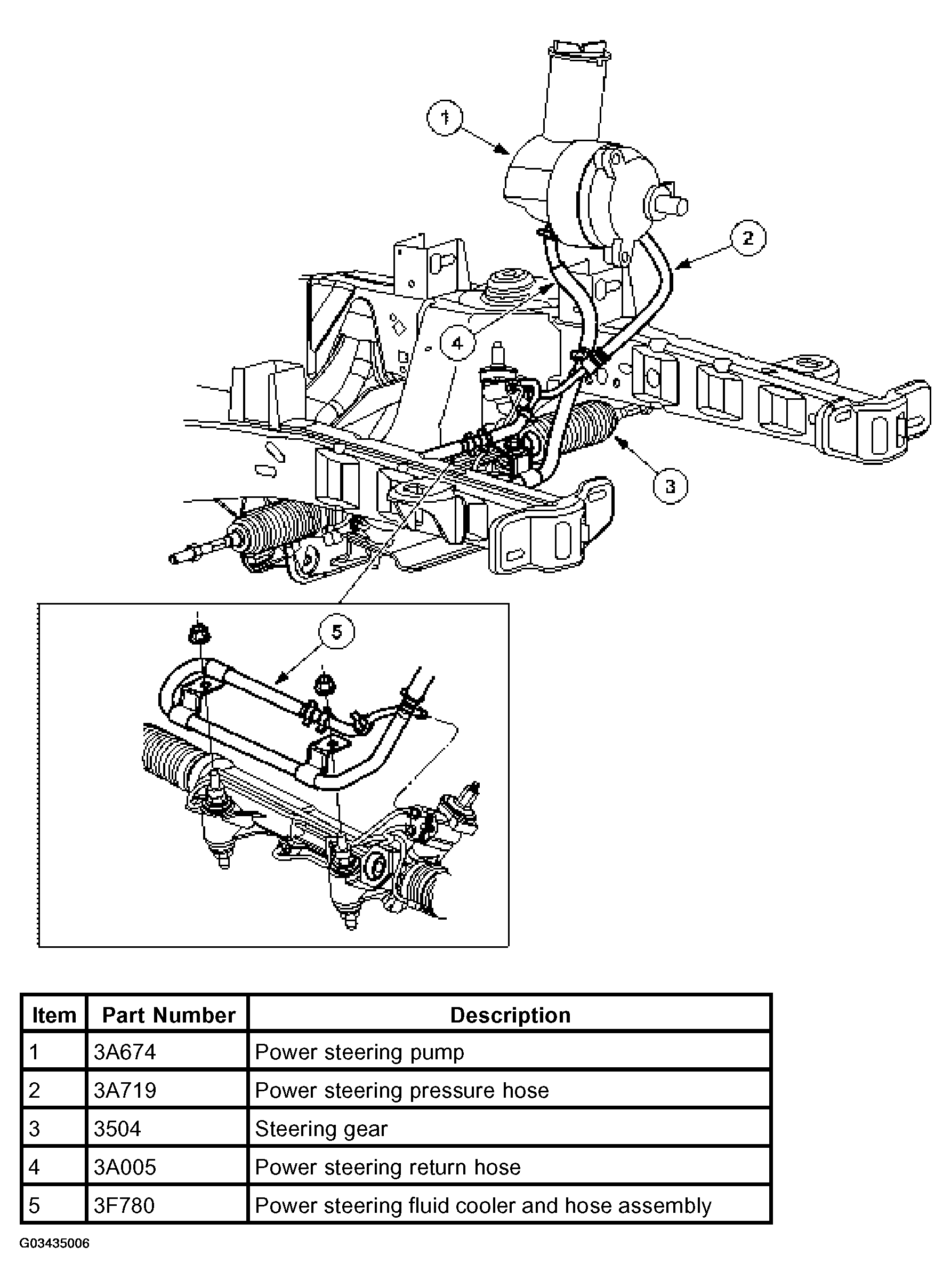

Fig 1: Identifying Power Steering System View - Typical

Courtesy of FORD MOTOR CO.

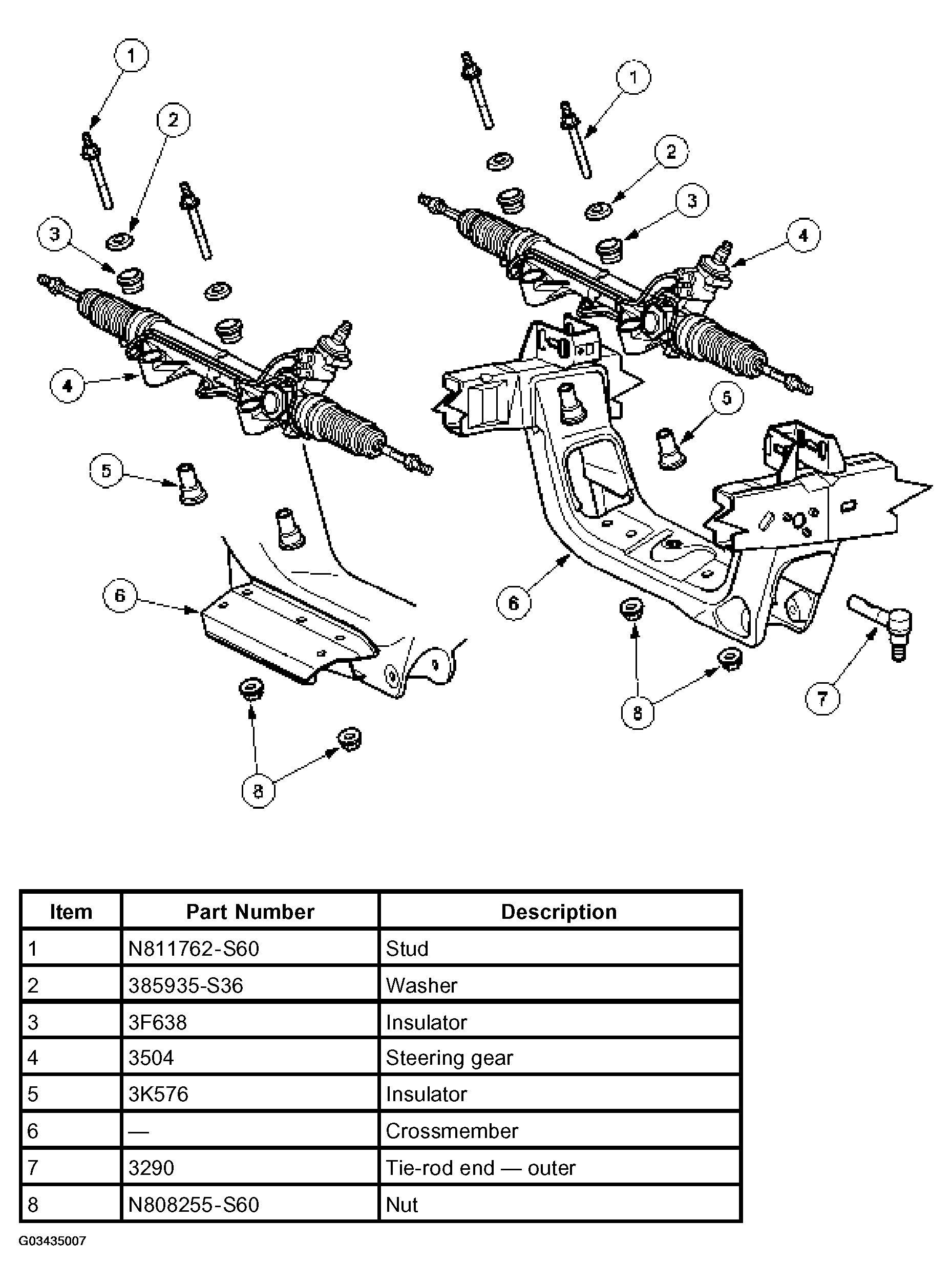

Fig 2: Identifying Steering Gear Mounting - 4x2/4x4

Courtesy of FORD MOTOR CO.

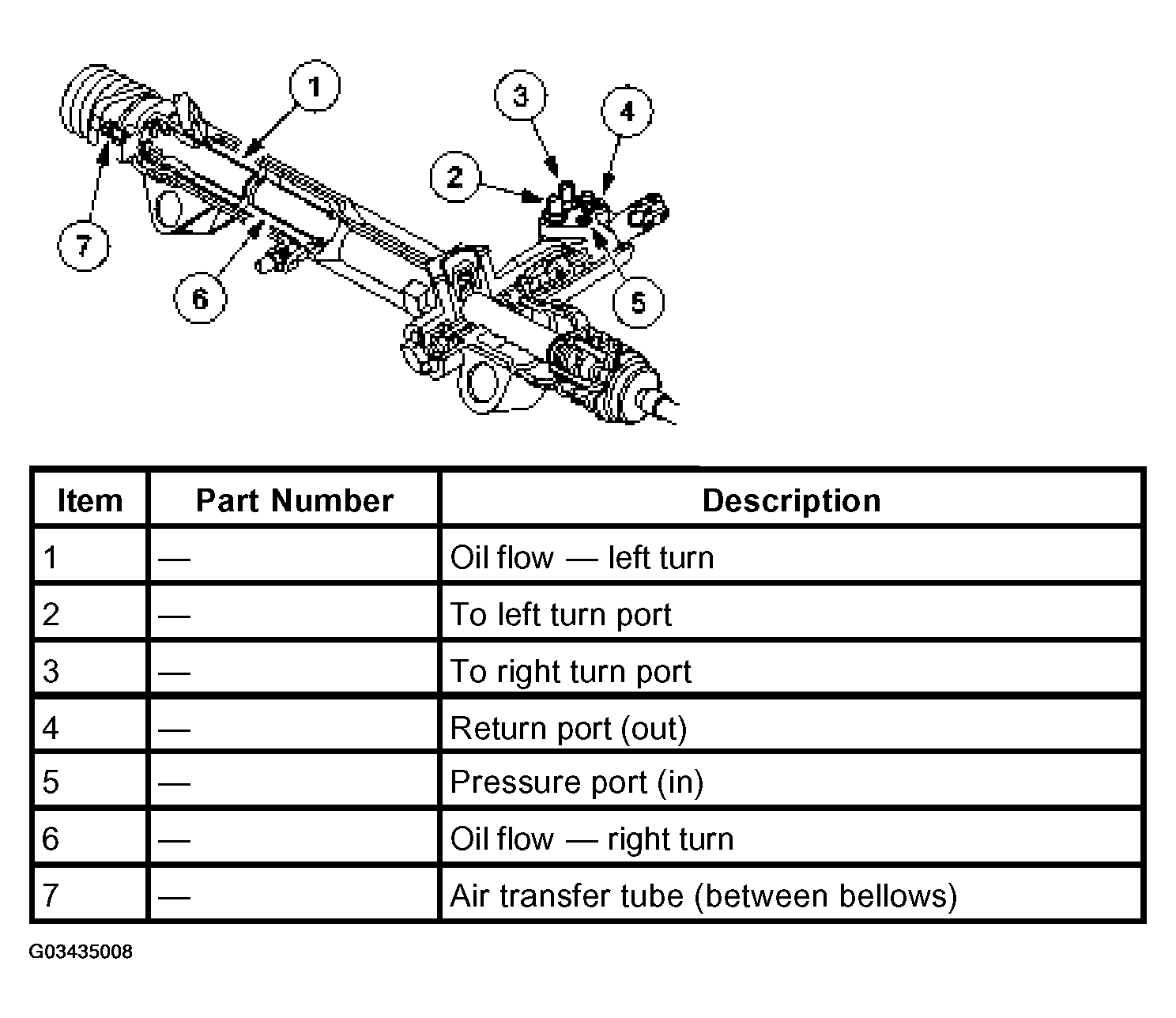

Fig 3: Identifying Steering Gear

Courtesy of FORD MOTOR CO.
