Removal And Installation

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front engine appearance cover (6A951) and the throttle return spring (9B569). For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the accelerator cable (9A758) from the throttle body lever.

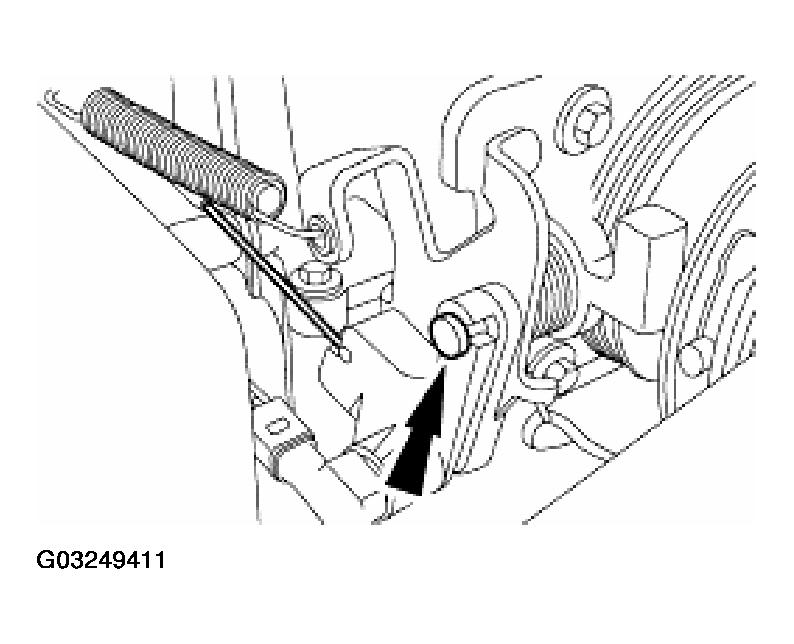

Fig 1: Disconnecting Accelerator Cable From Throttle Body Lever
Courtesy of FORD MOTOR CO.
Remove the screw (cable to bracket) and remove the accelerator cable from the accelerator cable bracket (9728).

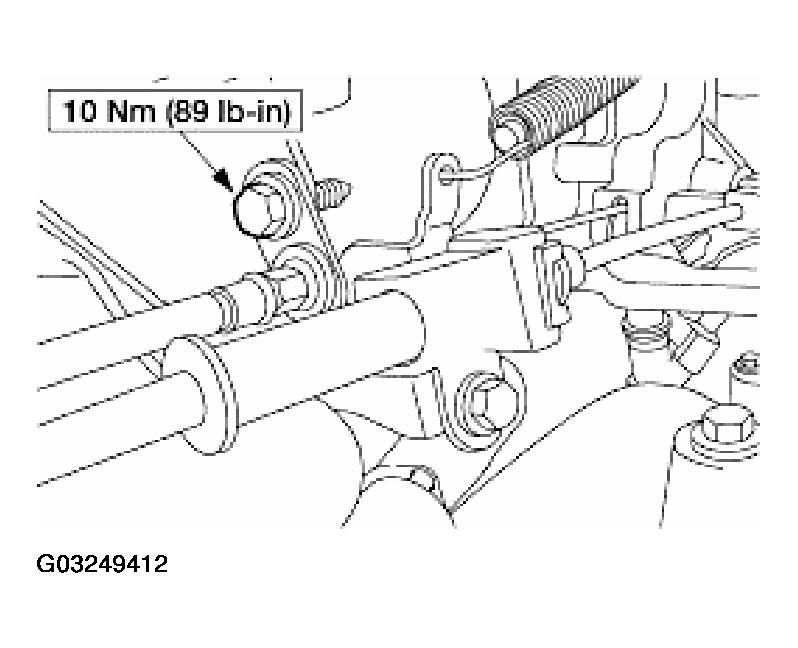

Fig 2: Removing Accelerator Cable From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
Remove the speed control cable. For additional information, refer to SPEED CONTROL .
Remove the spring.

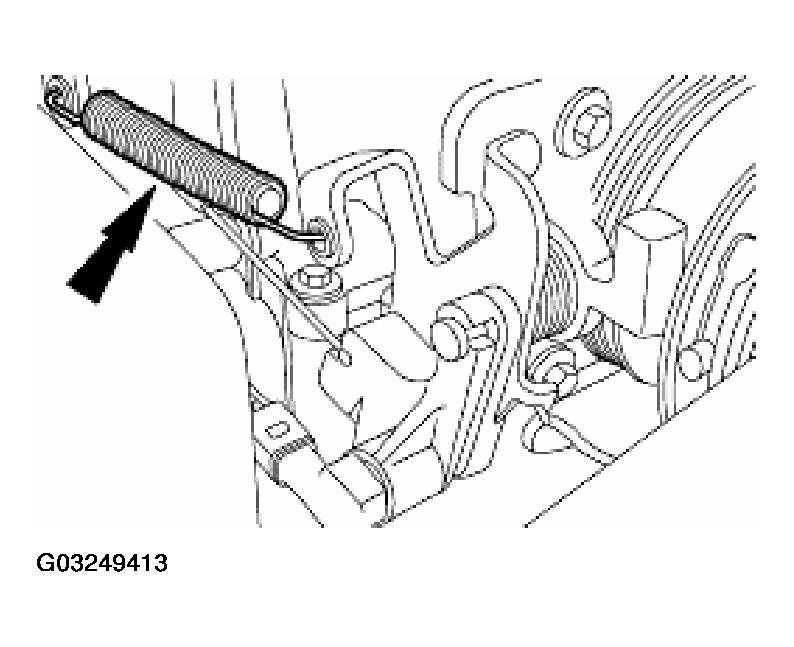

Fig 3: Removing Spring
Courtesy of FORD MOTOR CO.
Remove the screws and the nut and remove the accelerator cable bracket.

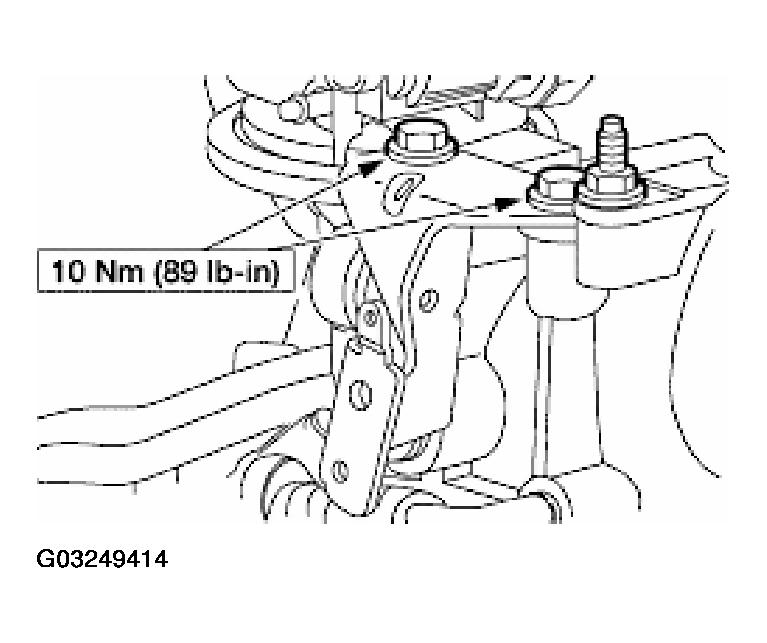

Fig 4: Removing Screws And Nut And Removing Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
