Component Testing: Keypad

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

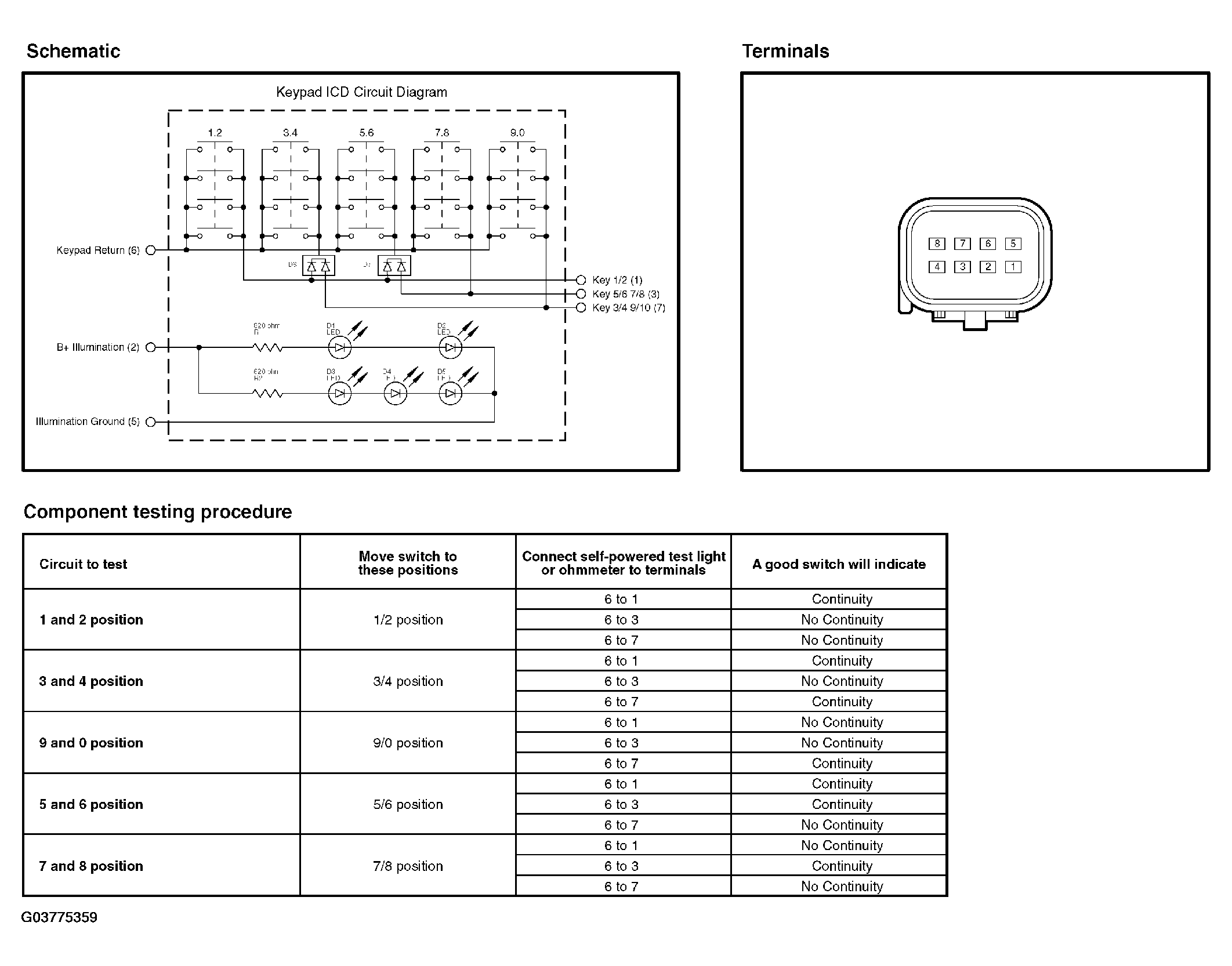

Fig 1: Testing Keypad
G03775359Courtesy of FORD MOTOR CO.
