Function Control Knob Switch
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For circuit reference, see WIRING DIAGRAMS .

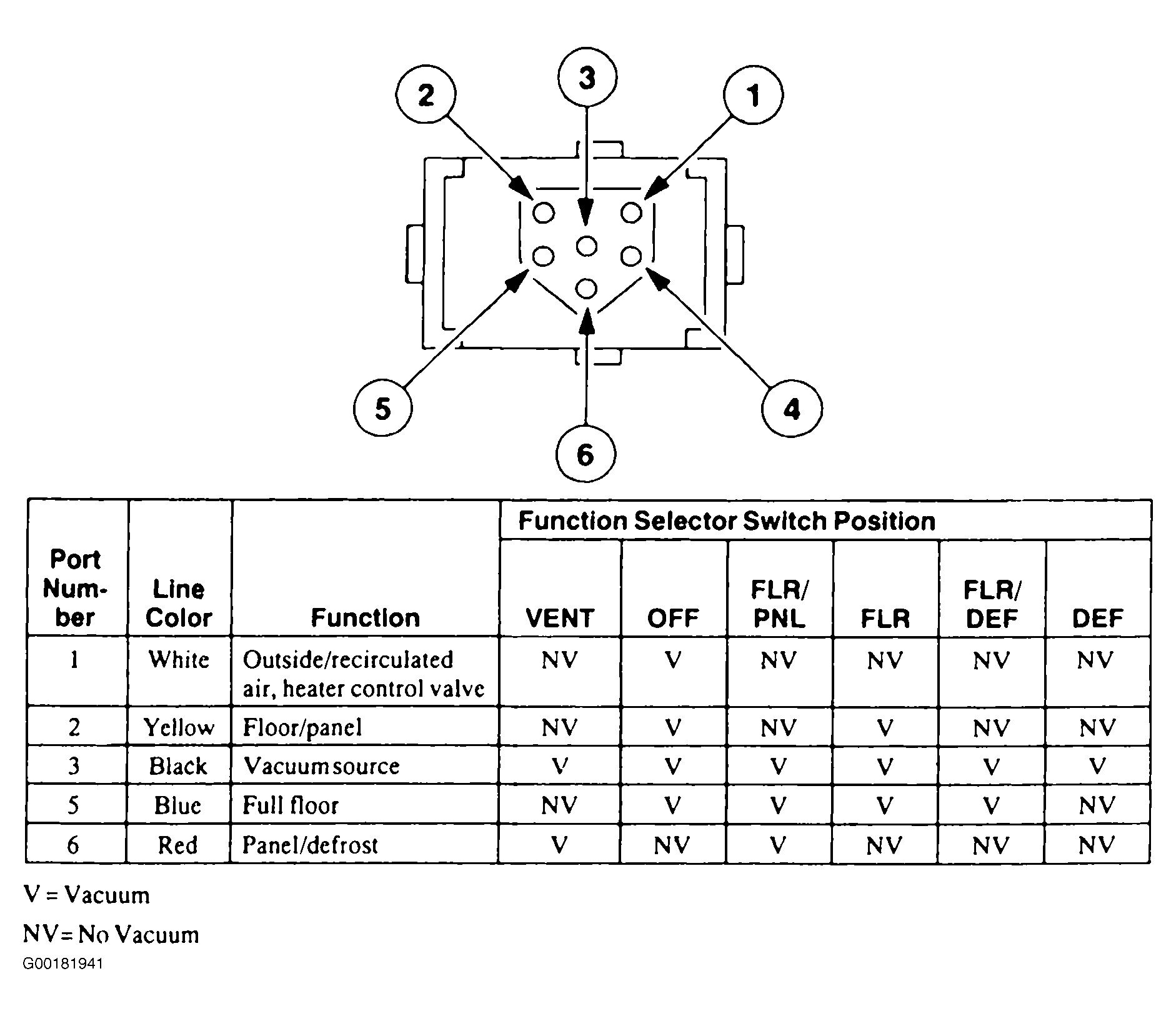

To check function control knob switch operation, see Fig 1.
